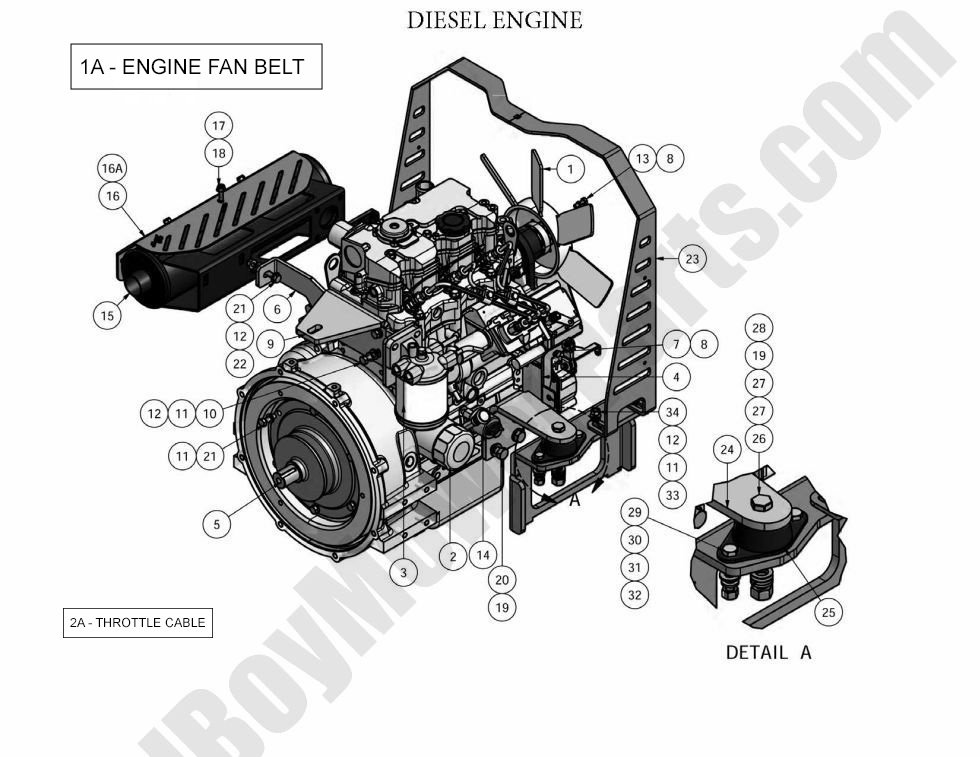

2010 Compact Diesel - Engine

2010 Compact Diesel - Engine

The 2010 Compact Diesel Engine is the powerhouse behind your mower, delivering high-performance and efficiency for tough mowing conditions. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including air filters, fuel injectors, cooling fans, and ignition components to maintain engine power. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for reliability and long-term durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct engine components for easy installation. Routine maintenance prevents overheating, enhances fuel efficiency, and extends engine lifespan. We also offer Bad Boy Parts Online, making ordering necessary engine components quick and simple. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 Compact Diesel Engine is now more affordable. Order today to keep your mower’s engine running smoothly, ensuring superior performance and long-term dependability for every mowing job.

Bad Boy Mower Parts Lookup

2010 Compact Diesel - Engine
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
1 015-6050-00 015-6050-00 - Diesel Engine Fan (See Models Used On For Details)
$202.89
2A 055-8018-00 055-8018-00 - Throttle Cable (See Models Used On For Details)
$60.92
2 063-2010-00 063-2010-00 - Caterpillar Oil Filter
$34.23
3 063-2011-00 063-2011-00 - CAT Fuel Filter - Big
$29.95
4 039-1010-00 039-1010-00 - Diesel Throttle Bracket 4 Tier
$5.49
5 017-3000-00 017-3000-00 - Stub shaft- Diesel
$229.90
7 018-2002-00 018-2002-00 - M6 X.50 X 20MM Class 8.8 Hex Bolts Zinc
$2.99
8 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
10 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99
11 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
12 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
13 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99
14 086-5001-00 086-5001-00 - 2007-2011 Diesel Oil Pressure Gauge w/Sender
$169.99
15 015-0005-00 015-0005-00 - Exhaust-28/35hp Caterpillar USE 015-0010-00 (obsolete)
use part #015-0010-00
$225.56
16 043-1010-00 043-1010-00 - 2010-2017 Diesel Muffler Cover (See Models Used On For Details)
$22.71
17 030-8000-00 030-8000-00 - 1/4x3/4 Set Screw-Diesel Exhaust
$2.99
18 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
19 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
20 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
21 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
22 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
23 201-8001-00 201-8001-00 - Hood Holder Diesel
$42.79
24 201-8008-00 201-8008-00 - Diesel Motor Side Support Right (See Models Used On For Details)
$31.22
25 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53
26 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
27 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
28 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
29 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
30 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
31 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
32 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
34 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
