2010 Outlaw & Outlaw Extreme - Engine - Briggs Vanguard 36HP

2010 Outlaw & Outlaw Extreme - Engine - Briggs Vanguard 36HP

The 2010 Outlaw & Outlaw Extreme Engine - Briggs Vanguard 36HP delivers top-tier performance, ensuring powerful mowing even in the toughest conditions. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts, including air filters, spark plugs, fuel injectors, ignition coils, cooling fans, and carburetors for maximum engine efficiency. Our Bad Boy Lawn Mower Parts inventory ensures factory-quality replacements built for durability and long-lasting reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the exact engine components needed for seamless installation. Routine maintenance improves fuel economy, enhances engine power, and extends operational lifespan. With access to Bad Boy Parts Online, ordering necessary engine parts is simple and hassle-free. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 Outlaw & Outlaw Extreme Engine - Briggs Vanguard 36HP is now more budget-friendly. Order today to ensure consistent, powerful mowing performance in any terrain.

Bad Boy Mower Parts Lookup

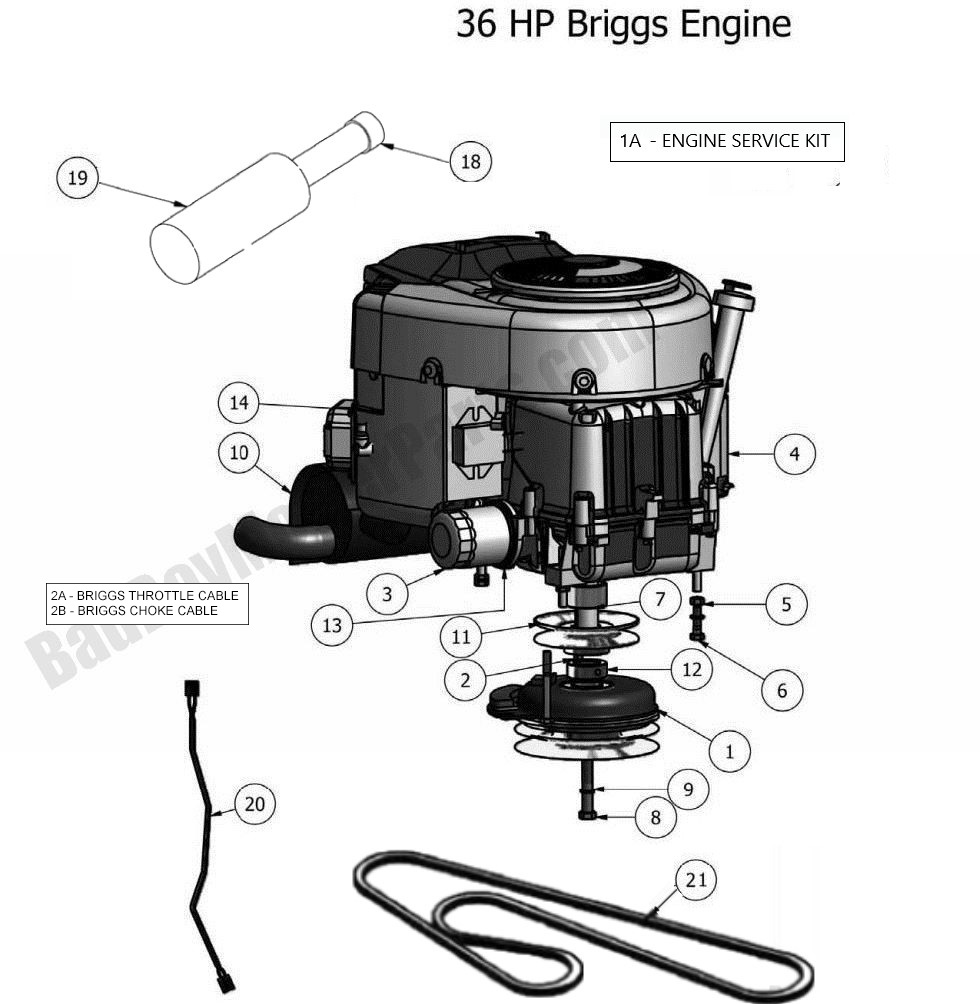

2010 Outlaw & Outlaw Extreme - Engine - Briggs Vanguard 36HP
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1B 015-2708-00 015-2708-00 - Exhaust Gasket - 36hp Vanguard
$16.04
1 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
2A 055-8021-00 055-8021-00 - 52" Throttle Cable (See Models Used On - Engine Diagrams For More Details)
$45.29
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
3 063-8018-00 063-8018-00 - Oil Filter
$21.39
4 015-0032-00 015-0032-00 - 32hp Vanguard Engine
$3395.00
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
6 018-2071-00 018-2071-00 - 3/8 x 2 1/2 Hex Tap Bolt - Ful l Thread - ACS
$2.99
7 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1" Countersunk Zinc Spacer
$12.83
8 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
9 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
10 015-0034-00 015-0034-00 - Exhaust-32/36hp Vanguard Engine (See Models Used On For Details)
$185.76
11 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details)
$35.48
12 025-5000-00 025-5000-00 - 1.125 ID X 1.750 OD X.625 THK Spacer Zinc
$7.69
13 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
14 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
18 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
19 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
20 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
