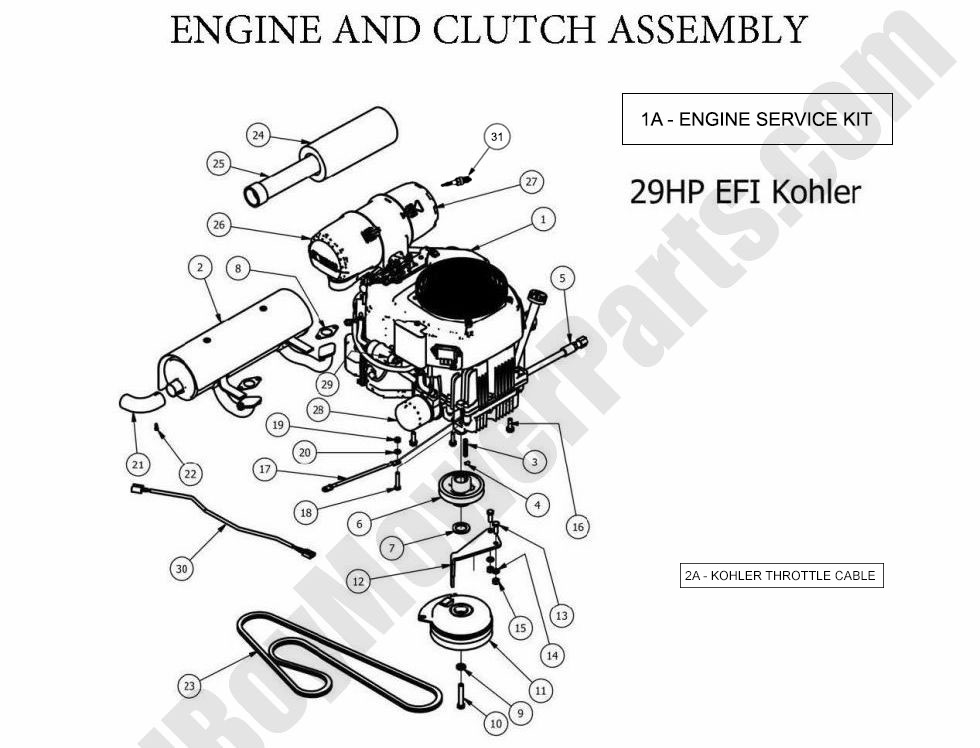

2013 Outlaw & Outlaw Extreme - Engine - Kohler 29HP EFI

2013 Outlaw & Outlaw Extreme - Engine - Kohler 29HP EFI

The Kohler 29HP EFI engine in the 2013 Outlaw & Outlaw Extreme is known for its power and efficiency. To maintain its performance, it’s important to use quality parts. At BadBoyMowerParts.com, we offer a comprehensive range of Bad Boy Mower Parts for the Kohler EFI engine. Our Bad Boy Mower Part diagrams help you find the right components for easy installation and maintenance. If you need Bad Boy Lawn Mower Parts like fuel pumps, ignition coils, or carburetors, we have you covered. Shopping for Bad Boy Parts Online is fast and simple, and with Free Shipping On Orders Over $100, you’ll enjoy great savings. Keep your 2013 Outlaw & Outlaw Extreme running efficiently with the right parts from our store.

Bad Boy Mower Parts Lookup

2013 Outlaw & Outlaw Extreme - Engine - Kohler 29HP EFI
  Position Number SKU Product Title Price
1A 063-2000-18 063-2000-18 - Kohler ECV860 & ECV880 Engine Service Kit
$138.99
1 015-2900-00 015-2900-00 - 29 EFI Kohler Engine (obsolete)
use part #015-0824-00
$3599.00
2A 055-8021-00 055-8021-00 - 52" Throttle Cable (See Models Used On - Engine Diagrams For More Details)
$45.29
2 015-0039-00 015-0039-00 - Exhaust 30 Kohler
$699.99
3 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
4 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
5 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
6 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
7 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
8 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
9 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
10 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
11 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
12 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
13 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
14 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
15 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
16 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
17 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
18 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
19 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
20 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
21 015-5400-00 015-5400-00 - Exhaust Extension
$21.28
22 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
23 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
24 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
25 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
26 015-2720-00 015-2720-00 - Kohler Air Canister Assy (See Models Used On for Details)
$333.99
27 015-2704-00 015-2704-00 - Kohler End Cap - New Style (See Models Used On For Details)
$56.70
28 063-5400-00 063-5400-00 - Oil Filter (Long) for Kohler Engines
$22.46
29 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
30 070-2010-00 070-2010-00 - 10 amp Clutch Pigtail-29 EFI (See Models Used On For Details)
$21.39
31 015-8002-00 015-8002-00 - Spark Plug for Kohler ECV860 & ECV880
$14.97
