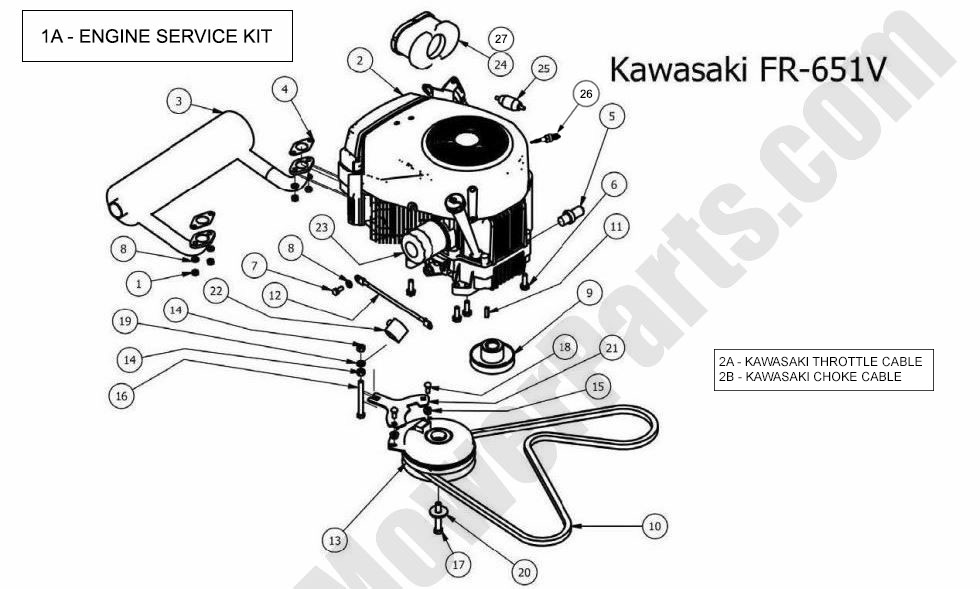

2013 MZ Magnum - Engine - Kawasaki FR651V

2013 MZ Magnum - Engine - Kawasaki FR651V

The 2013 MZ Magnum Engine - Kawasaki FR651V provides exceptional performance, and keeping it in top shape requires access to the right Bad Boy Mower Parts. This engine model offers a blend of power and efficiency, making it perfect for residential and light commercial use. If you're in need of replacement components like air filters, oil filters, or spark plugs, Bad Boy Lawn Mower Parts offers the parts you need to maintain this engine. Utilize Bad Boy Mower Part diagrams to identify the exact parts for your 2013 MZ Magnum Engine - Kawasaki FR651V. Shopping Bad Boy Parts Online ensures a smooth experience with a variety of options. Plus, with Free Shipping On Orders Over $100, you can get your parts delivered at no additional cost. Visit BadBoyMowerParts.com for all your 2013 MZ Magnum Engine - Kawasaki FR651V parts.

Bad Boy Mower Parts Lookup

2013 MZ Magnum - Engine - Kawasaki FR651V
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-3000-00 055-3000-00 - 47" Throttle Cable for 2017 & Older MZ (Not Used On Briggs Smart Choke Models)
$26.74
2B 054-8016-00 054-8016-00 - 47" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2 015-0022-00 015-0022-00 - FR651V-S00-S Kawasaki Engine
$2389.06
3 015-0038-00 015-0038-00 - Exhaust for FR Kawasaki - MZ
$92.01
4 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
5 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$42.58
6 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
7 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
10 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
11 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
12 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
13 070-3000-00 070-3000-00 - 2010-2014 MZ/ Magnum UNITS ONLY Ogura PTO Clutch - 100 ft/lbs
$279.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
16 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
17 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
18 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
19 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
20 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
21 057-5920-00 057-5920-00 - 2010-2014 MZ Clutch Holder
$21.28
22 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
23 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
24 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
25 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
26 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
27 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
