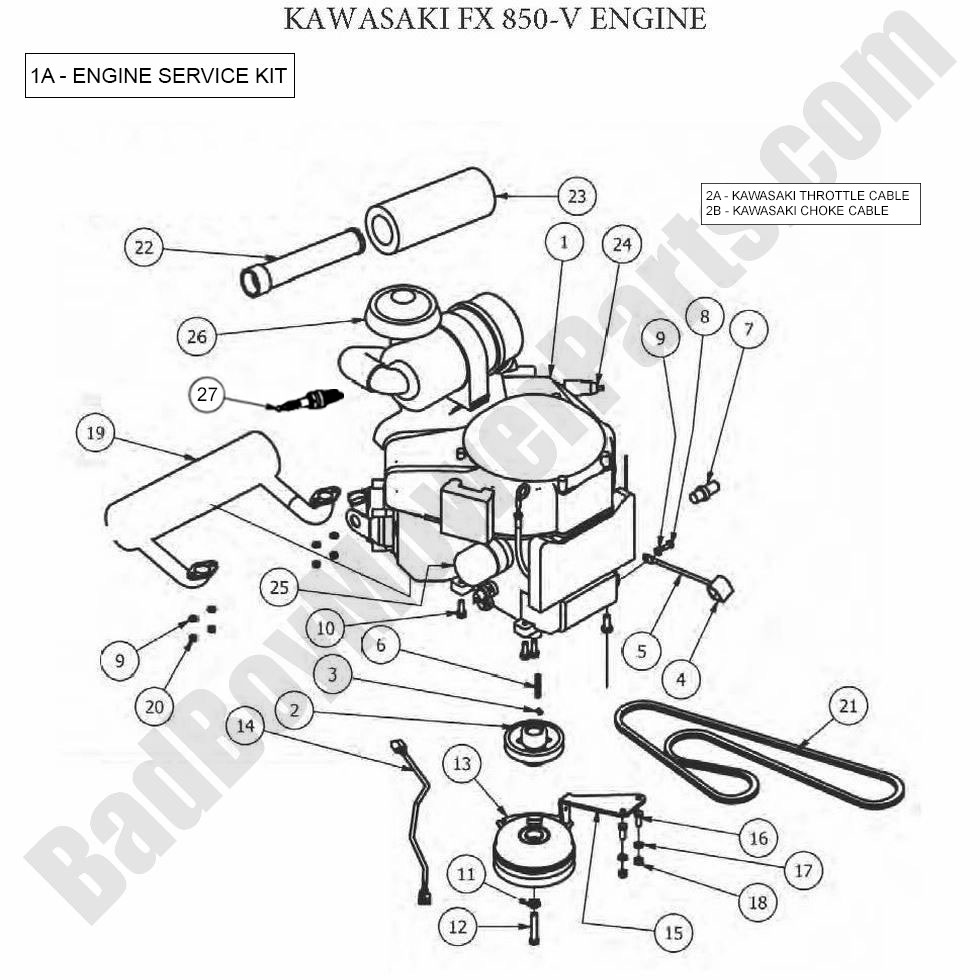

2012 Outlaw & Outlaw Extreme - Engine - Kawasaki FX850

2012 Outlaw & Outlaw Extreme - Engine - Kawasaki FX850

The Kawasaki FX850 engine in the 2012 Outlaw & Outlaw Extreme models is known for its high power and durability, perfect for tackling tough mowing jobs. If you need to replace or repair parts of this engine, BadBoyMowerParts.com has a wide range of Bad Boy Mower Parts to suit your needs. Our comprehensive Bad Boy Mower Part diagrams make it easy to find the right engine components, whether you need fuel filters, ignition coils, or valve parts. We offer only top-quality Bad Boy Lawn Mower Parts, ensuring long-lasting performance for your Kawasaki engine. With Bad Boy Parts Online, you can conveniently order the parts you need from the comfort of your home. Plus, we offer Free Shipping On Orders Over $100, so you can save on delivery costs while getting the best parts for your mower. Keep your 2012 Outlaw & Outlaw Extreme running smoothly with parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2012 Outlaw & Outlaw Extreme - Engine - Kawasaki FX850
  Position Number SKU Product Title Price
1A 063-2000-02 063-2000-02 - Kawasaki FX850 Engine Service Kit
$124.74
1B 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
1 015-0031-00 015-0031-00 - Kaw Engine FX-850V-AS15R
$3395.00
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8016-00 054-8016-00 - 47" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
3 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
4 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
5 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
6 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
7 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$42.58
8 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
9 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
10 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
11 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
12 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
13 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
14 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
15 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
16 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
17 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
18 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
19 015-0035-00 015-0035-00 - Exhaust for 31hp Kawasaki
$219.99
20 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
21 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
22 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
23 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
25 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
26 063-2045-00 063-2045-00 - Rain Cap-Fits all Canisters (obsolete)
use part #088-3060-00
$53.49
27 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
