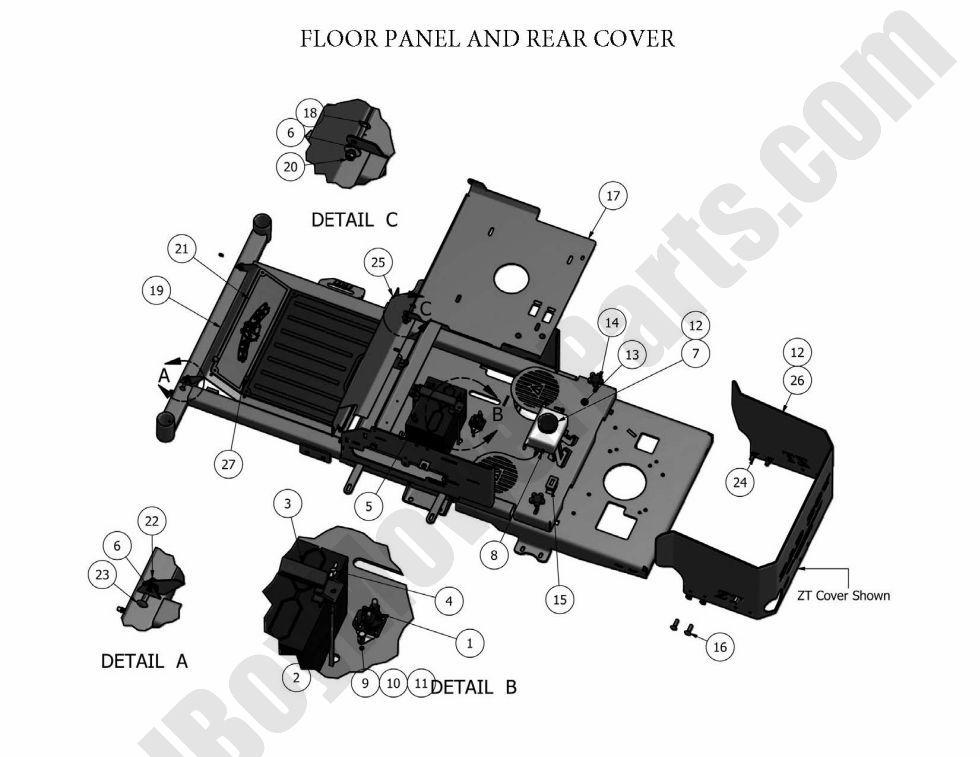

2011 CZT - Floor Panel

2011 CZT - Floor Panel

The 2011 CZT Floor Panel is a vital part of your mower’s base structure, providing both support and durability. If you're looking to replace or repair the floor panel on your 2011 CZT, BadBoyMowerParts.com has you covered with an extensive selection of Bad Boy Mower Parts. With our Bad Boy Mower Part diagrams, finding the right floor panel is a breeze. Not only will you get the right part, but you'll also be assured of high-quality components that ensure a long-lasting repair. Our Bad Boy Lawn Mower Parts are designed to restore your mower to peak performance, and we offer a wide array of Bad Boy Parts Online for all your repair and maintenance needs. Don't forget about our Free Shipping On Orders Over $100, making it easier than ever to get the parts you need without the added cost. Visit BadBoyMowerParts.com today and order your 2011 CZT Floor Panel with confidence.

Bad Boy Mower Parts Lookup

2011 CZT - Floor Panel
  Position Number SKU Product Title Price
1 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
2 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
3 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
4 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
6 019-2000-00 019-2000-00 - 7/16 X 2 Washer
$2.99
7 067-8080-00 067-8080-00 - ZT Hydraulic Tank and Cap (See Models Used On For Details)
$49.21
8 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
9 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
10 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
11 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
12 026-0054-00 026-0054-00 -Rear Plate (See Models Used On For Details)
$179.99
13 026-0052-00 026-0052-00 -Pump Cover Plate (See Models Used On For Details)
$83.77
14 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
15 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
16 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
17 026-1010-00 026-1010-00 - ZT Seat Plate 2010 (See Models Used On For Details)
$99.32
18 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
19 079-3410-00 079-3410-00 - 2010-2012 ZT Floor Panel
$106.99
20 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 081-2010-00 081-2010-00 - 2010-2015 CZT & 2010-2013 ZT Floor Mat
$28.45
22 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
23 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
24 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
25 014-3410-00 014-3410-00 - 2010-2012 CZT/ZT Cooler Cover w/o Choke Hole
$92.29
26 026-0053-00 026-0053-00 -Rear Plate (See Models Used On For Details)
$229.99
27 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
