2014 Outlaw & Outlaw Extreme - Floorboard and Battery Assembly

2014 Outlaw & Outlaw Extreme - Floorboard and Battery Assembly

The 2014 Outlaw & Outlaw Extreme Floorboard and Battery Assembly is an important component that helps keep your mower running smoothly and securely. BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts, including the floorboard and battery assembly for your 2014 Outlaw & Outlaw Extreme. Our Bad Boy Mower Part Diagrams make it easy to locate the exact parts you need for the floorboard and battery assembly, ensuring a seamless replacement. With Bad Boy Lawn Mower Parts, you can rely on durable, high-quality parts that meet the specific needs of your mower. When you shop Bad Boy Parts Online, you’ll find everything you need in one place, and with Free Shipping On Orders Over $100, you’ll enjoy the added benefit of no extra shipping charges when you order the necessary parts for your mower.

Bad Boy Mower Parts Lookup

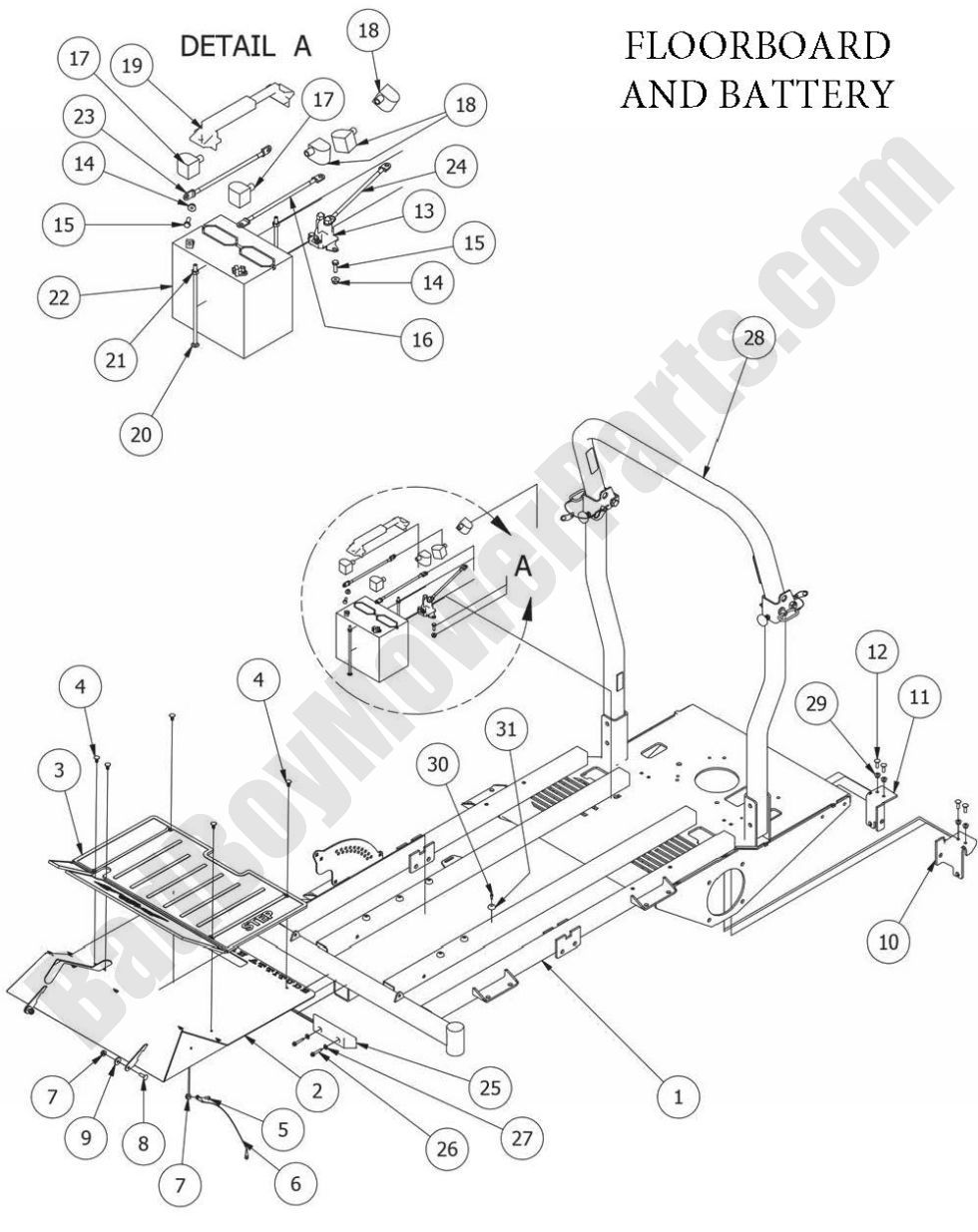

2014 Outlaw & Outlaw Extreme - Floorboard and Battery Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5350-00 070-5350-00 - 2012-2014 Outlaw/Outlaw Extreme Frame
$1299.99
2 031-2031-00 031-2031-00 - 2012-2014 Outlaw Tank Support Left
$78.08
3 081-2008-00 081-2008-00 - Foot Assist Floor Mat (See Models Used On For Details)
$66.76
4 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
5 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
6 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
8 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
10 039-2113-00 039-2113-00 - Outlaw Brake Cable Mount Bracket (Right)
$16.04
11 039-2110-00 039-2110-00 - Outlaw Brake Cable Mounting Bracket (left)
$16.04
13 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
14 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
15 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
16 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
17 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
18 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
19 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
20 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
21 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
23 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
24 086-0003-00 086-0003-00 - Alternator to Starter Cable
$7.79
25 029-7038-00 029-7038-00 - 8 Bumper
$28.32
26 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
27 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
30 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
31 029-4010-00 029-4010-00 - Button Bumper
$2.99
