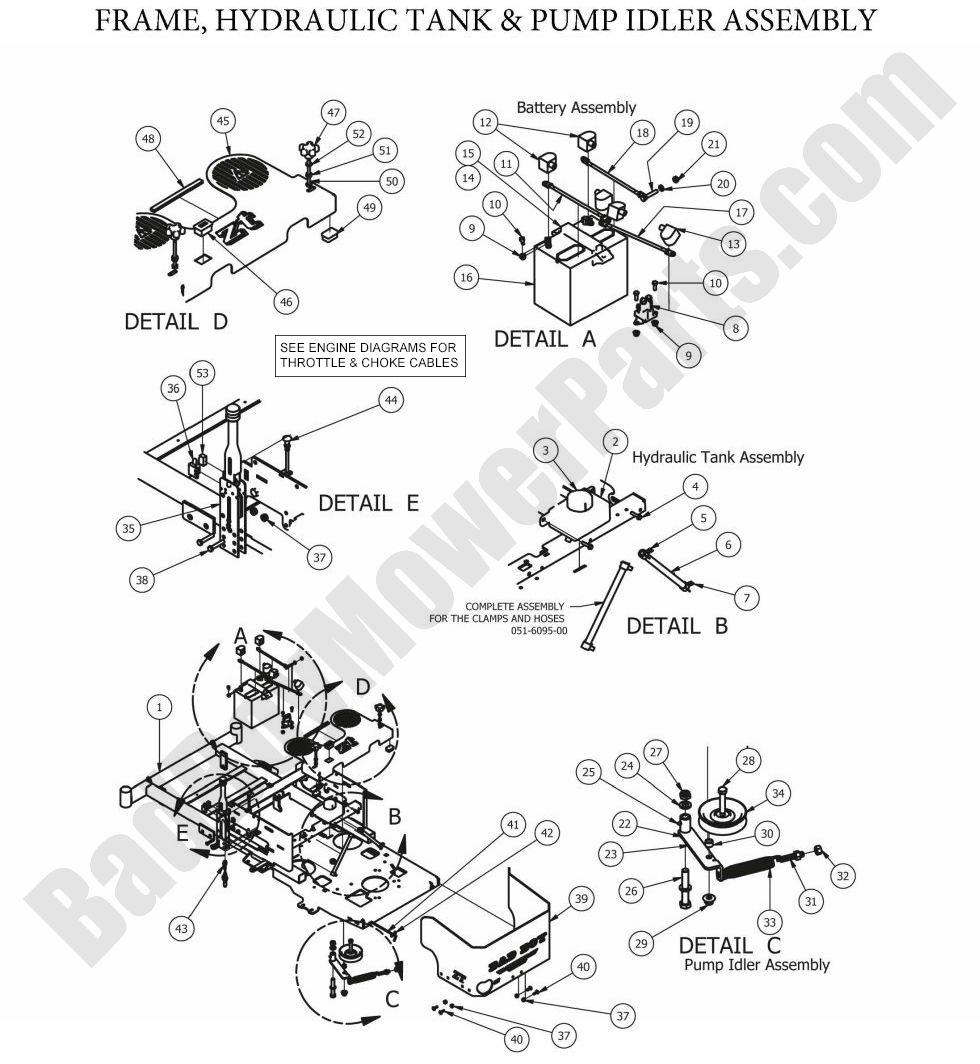

2012 ZT - Frame

2012 ZT - Frame

The 2012 ZT Frame provides the essential structure for your mower, supporting the engine, deck, and other vital components. Over time, the frame may become damaged or show signs of wear, requiring replacement. BadBoyMowerParts.com offers a wide variety of Bad Boy Mower Parts, including the 2012 ZT Frame, designed to restore your mower to peak performance. Our Bad Boy Lawn Mower Parts are made from high-quality materials to ensure durability and a perfect fit. Using our Bad Boy Mower Part diagrams, you can easily locate the exact frame components you need for your mower. Shopping Bad Boy Parts Online is quick and secure, with a straightforward ordering process that ensures you get the right parts. Plus, enjoy Free Shipping On Orders Over $100, making it more affordable to get the parts you need. Visit BadBoyMowerParts.com today to find the 2012 ZT Frame and other essential parts.

Bad Boy Mower Parts Lookup

2012 ZT - Frame
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5400-00 070-5400-00 - 2011-2012 CZT, 2012 ZT Frame
$1299.99

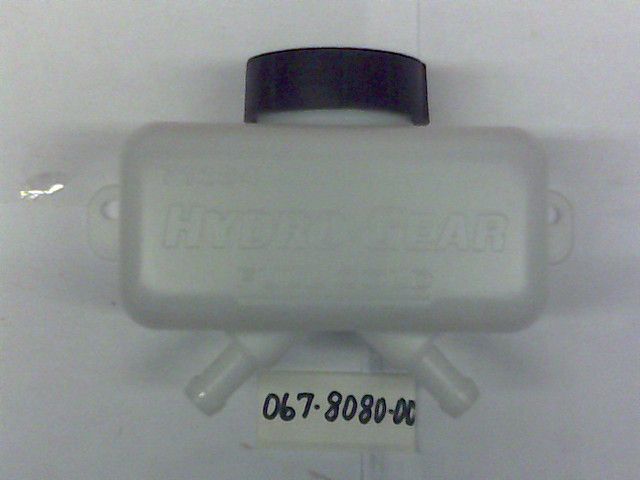

2 067-8080-00 067-8080-00 - ZT Hydraulic Tank and Cap (See Models Used On For Details)
$49.21
3 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
4 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
5 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
6 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
7 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
8 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
9 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
10 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
11 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
12 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
13 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
14 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
17 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
18 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
19 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
20 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
21 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
22 039-5944-98 039-5944-98 - Pump Idler Assembly (obsolete)
use part #039-5944-01
$62.46
23 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
26 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
27 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
28 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
29 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
30 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
31 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
32 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
33 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
34 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
35 069-8054-00 069-8054-00 - Brake Handle Kit
$119.41
36 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
37 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
39 026-0053-00 026-0053-00 -Rear Plate (See Models Used On For Details)
$229.99
40 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
41 031-0060-00 031-0060-00 - 2012-2016 CZT/ZT, 2016-2018 Maverick, 2016-2021 Compact Outlaw Neutral Lever/Rod
$14.19
42 044-2004-00 044-2004-00 - Bow Pin
$2.99
43 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
45 026-0052-00 026-0052-00 -Pump Cover Plate (See Models Used On For Details)
$83.77
46 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
47 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
48 084-4015-00 084-4015-00 - Rubber Trim
$10.99
49 014-3000-00 014-3000-00 - Square 3/4" Plug-SQR07-1620 ZT Fan Cover
$2.99

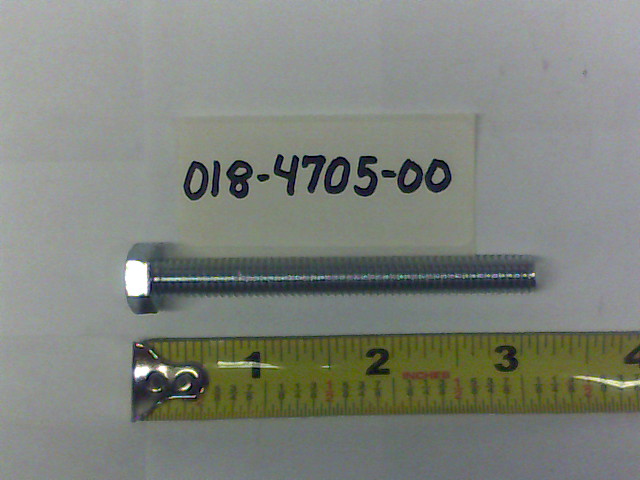

50 018-4705-00 018-4705-00 - - 5/16-18 X 3 Hex Bolt Zinc Fully Threaded
$2.99

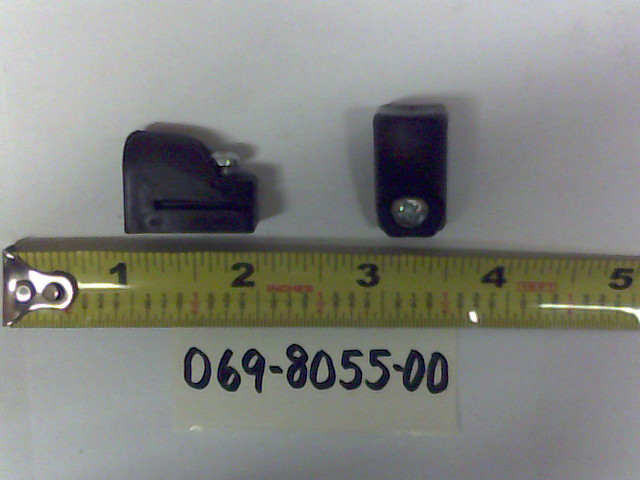

53 069-8055-00 069-8055-00 - Brake Plunger Stop
$5.82
