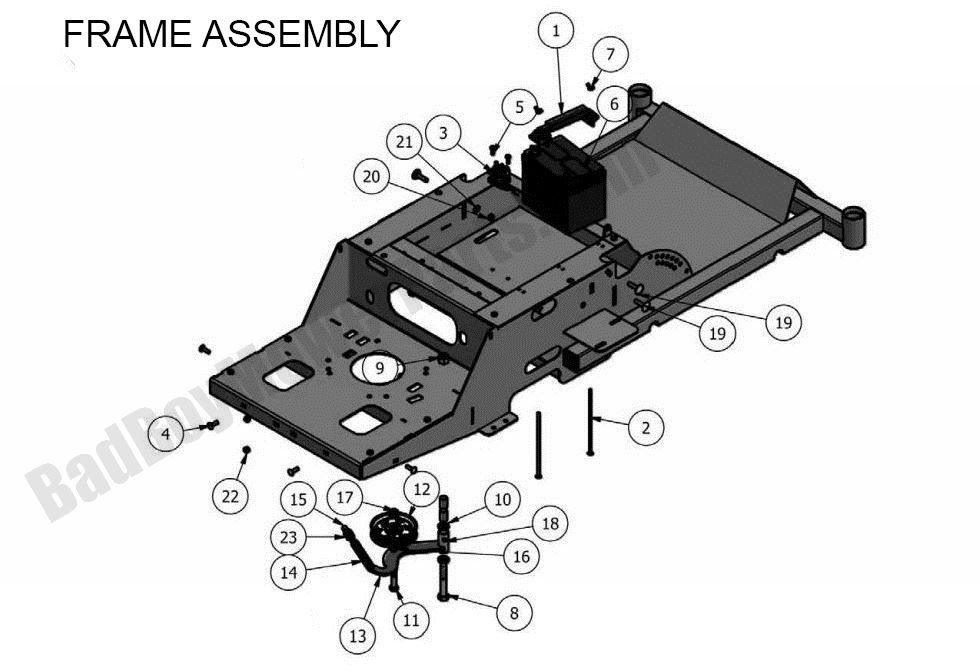

2011 MZ - Frame Assembly

2011 MZ - Frame Assembly

For a durable and reliable 2011 MZ Frame Assembly, BadBoyMowerParts.com is the go-to destination. The frame is the backbone of your mower, and we offer a full range of parts designed to keep it in top shape. Our detailed Bad Boy Mower Part diagrams will help you navigate the parts you need for the frame assembly. We offer high-quality Bad Boy Lawn Mower Parts, so you can rest assured your frame will provide stability and support for your mower's components. When you shop Bad Boy Parts Online, you’ll find exactly what you need, whether you're replacing the frame or reinforcing it. Plus, Free Shipping On Orders Over $100 helps you save more. Visit us today at BadBoyMowerParts.com for all your frame assembly and other part needs. You’ll find everything you need to keep your 2011 MZ mower operating like new.

Bad Boy Mower Parts Lookup

2011 MZ - Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
2 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
3 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
7 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
8 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
12 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
13 039-7000-00 039-7000-00 - MZ Pump Idler Arm Bracket
$38.32
14 034-9050-00 034-9050-00 - Pump Idler Spring - Big Diameter
$17.11
15 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
16 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
19 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
20 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
21 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
22 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
23 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
