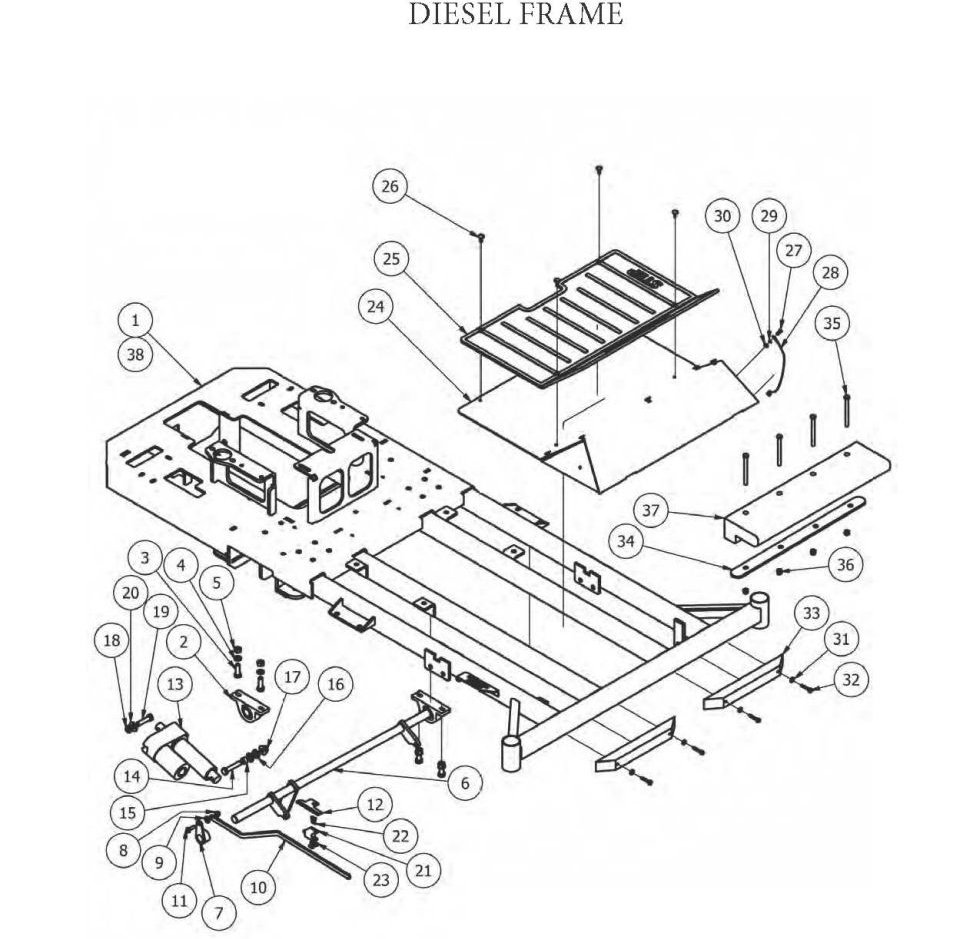

2012 Diesels - Frame (Diesel)

2012 Diesels - Frame (Diesel)

When it comes to the 2012 Diesels Frame (Diesel) for your Bad Boy mower, durability and strength are paramount. The frame holds everything together, so if you're replacing or repairing it, you need high-quality parts. BadBoyMowerParts.com provides an extensive selection of Bad Boy Mower Parts, including the Diesel frame and all its essential components. Our website offers easy-to-follow Bad Boy Mower Part diagrams, which help you identify and select the right parts for your mower. We also offer Bad Boy Lawn Mower Parts that are built for performance and longevity. Ordering parts online is simple, and with Free Shipping On Orders Over $100, you can save even more on your repair or upgrade project. With fast and reliable shipping, you’ll have your parts delivered to your door in no time. Shop Bad Boy Parts Online and ensure that your 2012 Diesels mower maintains its strength and reliability for years to come.

Bad Boy Mower Parts Lookup

2012 Diesels - Frame (Diesel)
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5550-00 070-5550-00 - 2012-2020 Diesel 4 cyl 72 inch Frame
$1399.99
2 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
3 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
4 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 028-7920-00 028-7920-00 - Actuator Bar (See Models Used On For Detail)
$116.99
7 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
8 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 028-5203-00 028-5203-00 - Height Indicator (See Models Used On For Detail)
$28.39
11 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 039-2008-00 039-2008-00 - Deck Stop Bracket 2008
$11.34
13 035-7033-00 035-7033-00 - Actuator
$408.75
14 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
15 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
16 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
19 018-5049-00 018-5049-00 - 1/2-13 X 2 Hex Bolts Zinc
$2.99
20 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
21 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
22 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
23 013-2000-00 013-2000-00 - 10-24 Wing Nut
$2.99
24 079-6000-00 079-6000-00 - 2007-2020 Floor Panel (See Models Used On For Details)
$145.95
25 081-2007-00 081-2007-00 - Floor Mat - Diesel Models (See Models Used On For Details)
$66.76
26 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
27 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
28 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
29 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
30 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
31 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
32 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
33 029-7037-00 029-7037-00 - 14" Bumper
$42.79
34 028-1000-00 028-1000-00 - Diesel Weight Bar Bracket (See Models Used On For Details)
$14.97
35 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
36 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
37 088-2000-00 088-2000-00 - 58 lb Diesel Weight
$229.99
38 070-5520-00 070-5520-00 - 2007-2020 Diesel 4cyl Frame Suspension
$2099.99
