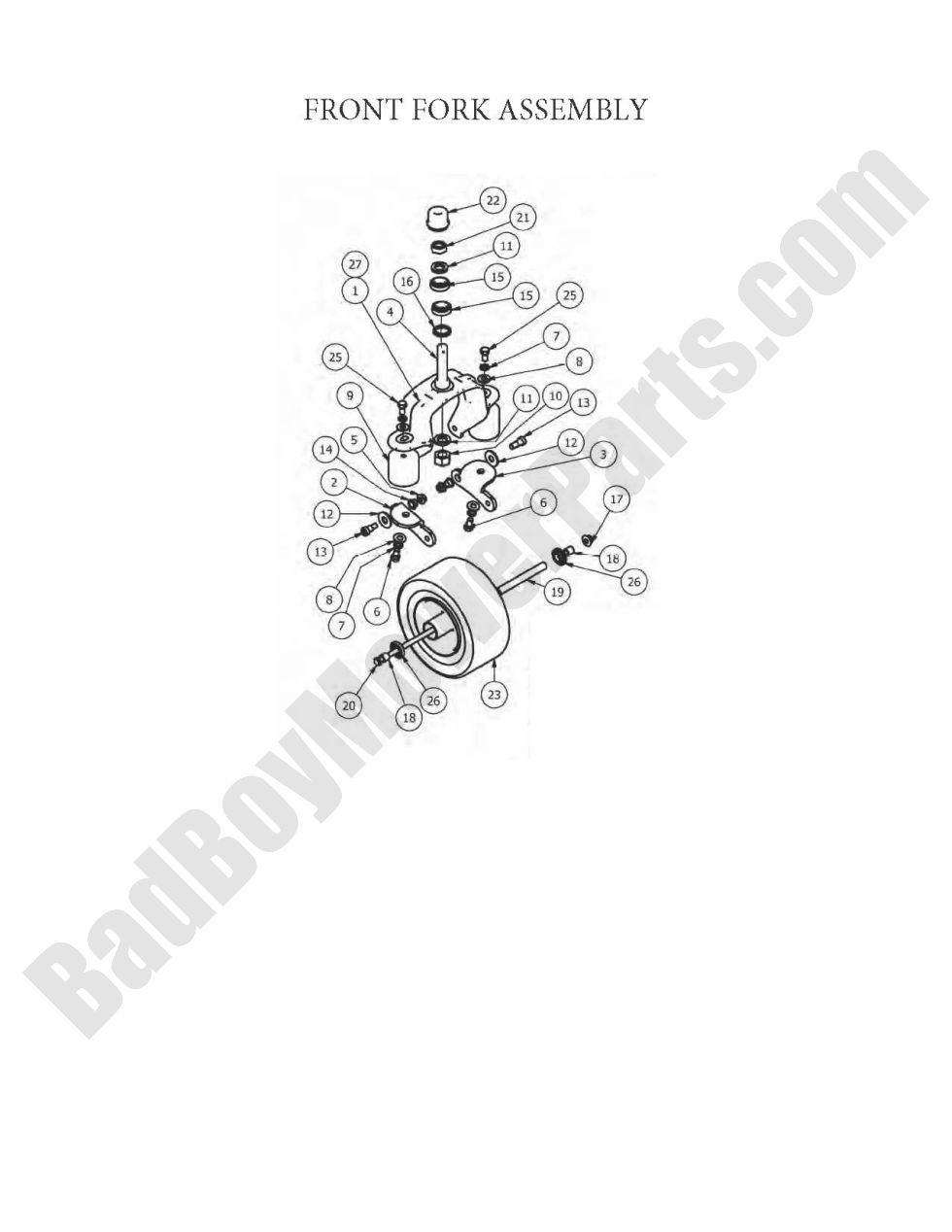

2012 Diesels - Front Fork Assembly

2012 Diesels - Front Fork Assembly

The 2012 Diesels Front Fork Assembly is a critical component that ensures smooth operation and steering of your Bad Boy mower. When this part needs attention or replacement, BadBoyMowerParts.com is here to provide you with high-quality Bad Boy Mower Parts. We offer a wide variety of front fork assemblies and related parts to keep your mower running smoothly. The site features Bad Boy Mower Part diagrams, allowing you to locate the specific parts you need for your 2012 Diesels model. Whether you're repairing or replacing parts, you can shop for Bad Boy Lawn Mower Parts with ease on our website. Plus, when you purchase from us, you’ll enjoy Free Shipping On Orders Over $100, making it even more affordable to maintain your mower. Shop Bad Boy Parts Online today, and keep your 2012 Diesels mower’s front fork assembly in top shape for precise steering and smooth handling, ensuring optimal mowing performance.

Bad Boy Mower Parts Lookup

2012 Diesels - Front Fork Assembly
  Position Number SKU Product Title Price
1 023-0020-00 023-0020-00 - 2012-2016 Outlaw XP, 2012-2020 Diesel Suspension Fork Top/Side Combo
$263.99
2 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
3 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
4 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
7 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
8 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
9 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
10 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
11 019-3000-00 019-3000-00 - 1" Lock Washer
$3.29
12 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
13 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
14 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
15A 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
15 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
16A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
16 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
19 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
20 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
22 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
23 022-1050-00 022-1050-00 - 13 x 6.50-6 No-Flat Tire and Wheel Assembly
$177.99
25 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
26 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
27 023-7915-98 023-7915-98 - Suspension Fork Assembly
$350.99
