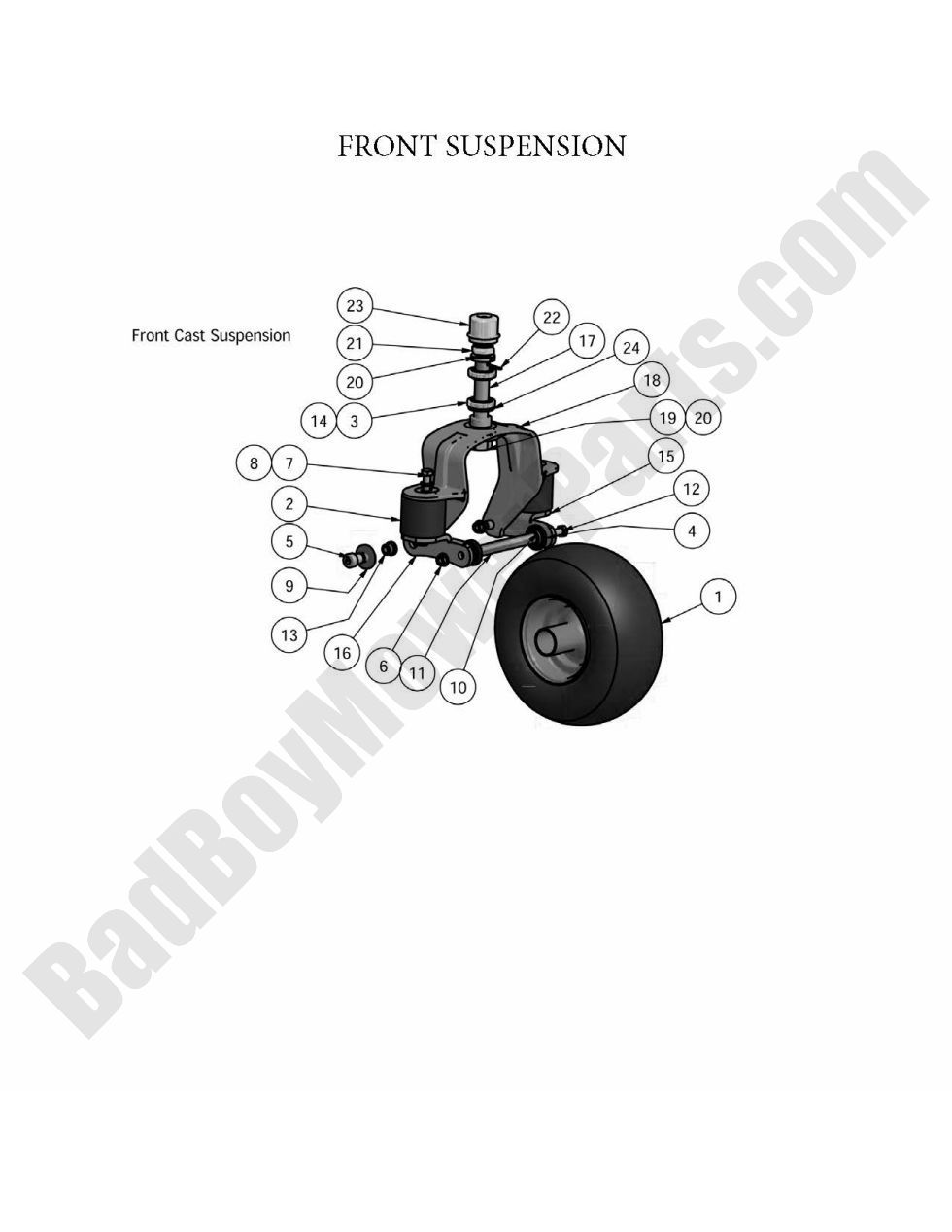

2010 Pup and Lightning - Front Suspension

2010 Pup and Lightning - Front Suspension

The 2010 Pup and Lightning Front Suspension enhances ride comfort and maneuverability by absorbing shocks and reducing vibrations. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts, including suspension forks, shock absorbers, mounting brackets, and springs for superior performance. Our Bad Boy Lawn Mower Parts inventory guarantees factory-quality replacements designed for durability and smooth operation. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct front suspension components for seamless installation. Routine maintenance prevents excessive vibration, improves steering control, and extends the lifespan of your mower’s suspension system. With access to Bad Boy Parts Online, ordering essential suspension components is simple and hassle-free. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 Pup and Lightning Front Suspension is now more budget-friendly. Order today to ensure a comfortable ride, precise handling, and enhanced mowing efficiency.

Bad Boy Mower Parts Lookup

2010 Pup and Lightning - Front Suspension
  Position Number SKU Product Title Price
1 022-3060-00 022-3060-00 - 13 x 6.50 - 6 LARGE BORE, Orange Front Assembly
$122.99
2 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
3A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
3 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
4 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
5 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
8 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
9 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
10 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
11 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
12 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
13 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
14 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
15 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
16 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
17 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
18 023-7915-98 023-7915-98 - Suspension Fork Assembly
$350.99
19 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
20 019-3000-00 019-3000-00 - 1" Lock Washer
$3.29
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
22 020-3000-00 020-3000-00 - 3/32 X 1 1/2 Cotter Pins Zinc
$2.99
23 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
24 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
