2010 CZT - Front Wheel

2010 CZT - Front Wheel

The 2010 CZT Front Wheel assembly is essential for maneuverability, stability, and smooth mowing operation. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including caster wheels, wheel bearings, axle shafts, and brackets for durable performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for reliability. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct front wheel components for easy installation. Routine maintenance prevents uneven wear, improves mobility, and extends the lifespan of your mower’s front-end system. We also offer Bad Boy Parts Online, making it simple to order necessary front wheel components when needed. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 CZT Front Wheel is now more affordable. Order today to ensure smooth operation, improved stability, and long-lasting mower performance.

Bad Boy Mower Parts Lookup

2010 CZT - Front Wheel
  Position Number SKU Product Title Price
1 022-2006-00 022-2006-00 - 13 x 6.50 - 6 Orange Tire and Wheel Assembly
$119.99
2 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29

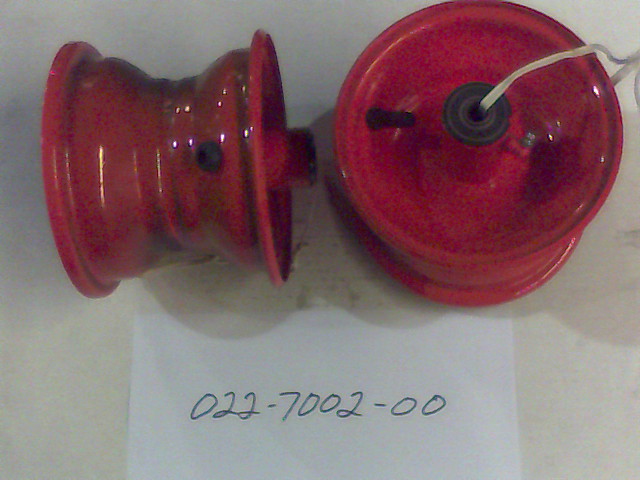

3 022-7002-00 022-7002-00 - 6 x 4.5 Orange Wheel (One Rim Only)
$77.03
4 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
5 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
6A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
6 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
7 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
8 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
9 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
10 013-7004-00 013-7004-00 - 1-14 Hex Castle Nut Plain (Slotted Nut)
$8.35
11 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
12 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
13 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$139.99
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
