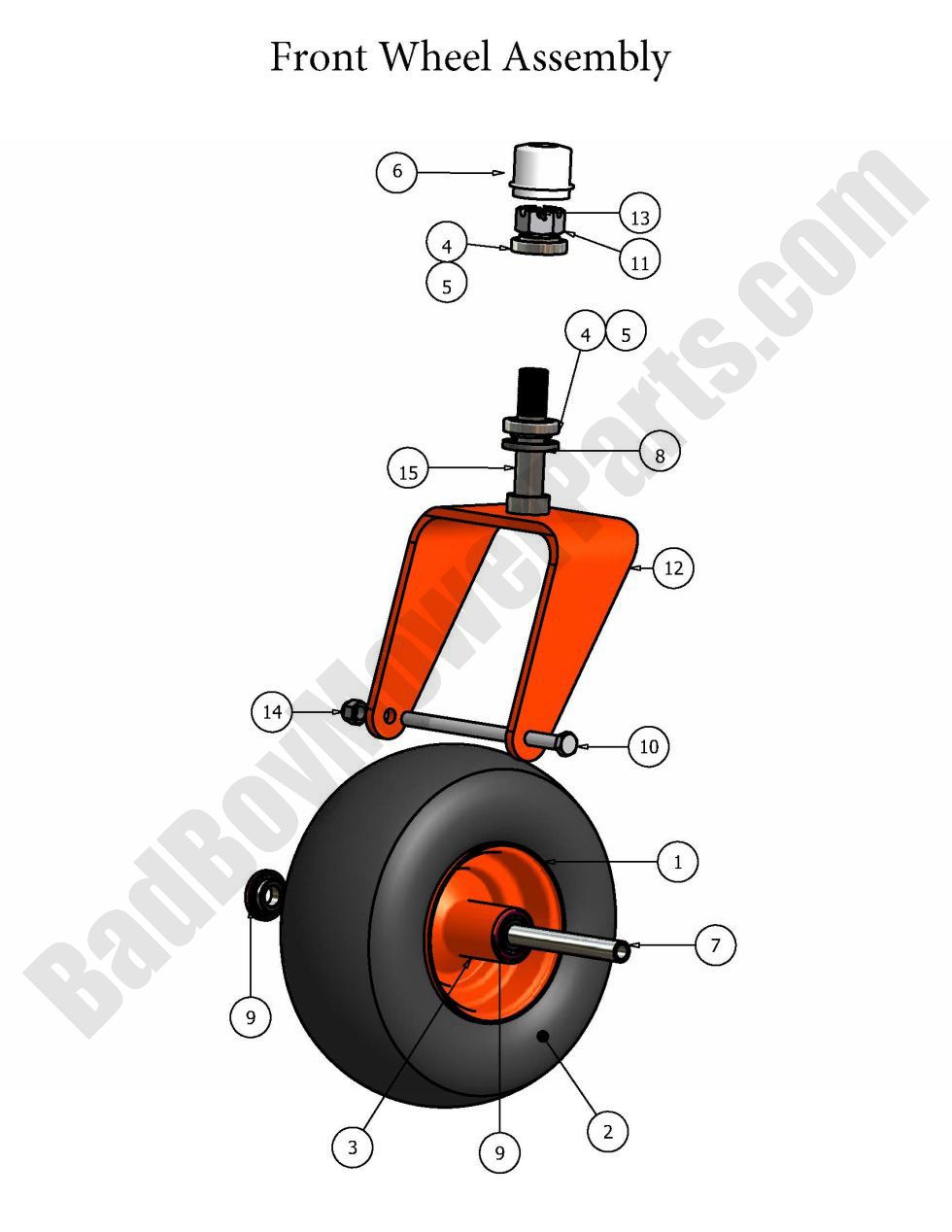

2007 Pup - Front Wheel Assembly

2007 Pup - Front Wheel Assembly

The 2007 Pup Front Wheel Assembly is a key component for smooth maneuverability, ensuring stability and control during operation. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts that are designed to provide the highest performance for your 2007 Pup. Whether you need the entire front wheel assembly or individual parts such as axles, bearings, and hubs, our Bad Boy Mower Part diagrams can help you easily identify the right components. Ensure your mower operates like new with our premium Bad Boy Lawn Mower Parts. You can shop for Bad Boy Parts Online and conveniently have your parts delivered. Don’t forget to take advantage of Free Shipping On Orders Over $100 to save on your purchase.

Bad Boy Mower Parts Lookup

2007 Pup - Front Wheel Assembly
  Position Number SKU Product Title Price
1 022-2006-00 022-2006-00 - 13 x 6.50 - 6 Orange Tire and Wheel Assembly
$119.99
2 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
3 022-7002-00 022-7002-00 - 6 x 4.5 Orange Wheel (One Rim Only)
$77.03
4 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
5A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
5 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
6 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
7 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
8 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
9 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
10 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
11 013-7004-00 013-7004-00 - 1-14 Hex Castle Nut Plain (Slotted Nut)
$8.35
12 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$139.99
13 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
14 013-6037-00 013-6037-00 - 1/2-13 Nylon Insert Locknut Zinc
$2.99
15 037-0001-00 037-0001-00 - Fork Spindle - Weld On (See Models Used On For Details)
$28.39
