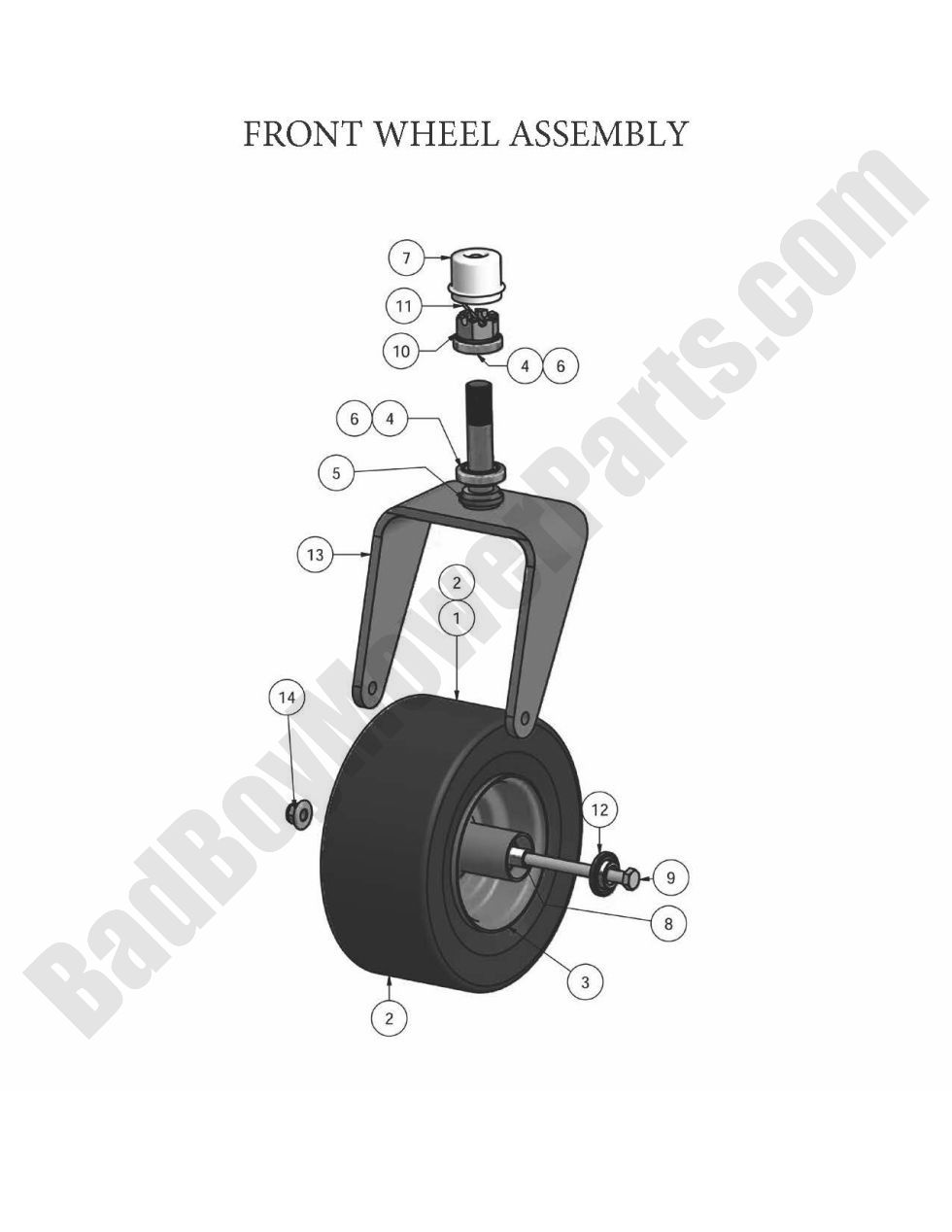

2010 ZT - Front Wheel Assembly

2010 ZT - Front Wheel Assembly

The 2010 ZT Front Wheel Assembly ensures smooth maneuverability and stable navigation across various mowing terrains. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts, including front wheels, axle shafts, caster arms, bearings, and mounting brackets for optimal performance. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for durability and smooth operation. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct front wheel components for seamless installation. Routine maintenance prevents uneven wear, enhances traction, and extends the lifespan of your mower’s front-end system. With access to Bad Boy Parts Online, ordering necessary front wheel parts is quick and simple. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 ZT Front Wheel Assembly is now more cost-effective. Order today to ensure superior handling, precise control, and long-lasting front-wheel performance.

Bad Boy Mower Parts Lookup

2010 ZT - Front Wheel Assembly
  Position Number SKU Product Title Price
1 022-2006-00 022-2006-00 - 13 x 6.50 - 6 Orange Tire and Wheel Assembly
$119.99
2 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
3 022-7002-00 022-7002-00 - 6 x 4.5 Orange Wheel (One Rim Only)
$77.03
4 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
5 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
6A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
6 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
7 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
8 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
9 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
10 013-7004-00 013-7004-00 - 1-14 Hex Castle Nut Plain (Slotted Nut)
$8.35
11 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
12 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
13 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$139.99
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
