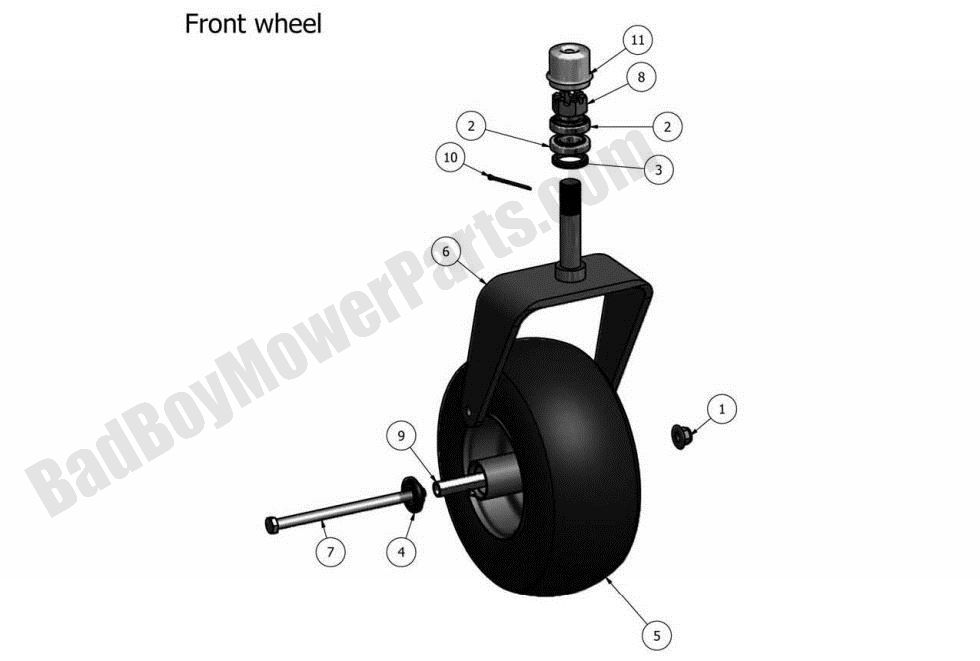

2011 Outlaw & Outlaw Extreme - Front Wheel Assembly

2011 Outlaw & Outlaw Extreme - Front Wheel Assembly

The 2011 Outlaw & Outlaw Extreme Front Wheel Assembly plays a key role in ensuring smooth movement and control of your mower. If you need to replace or repair your front wheels, BadBoyMowerParts.com offers high-quality parts designed to fit your mower perfectly. Our Bad Boy Mower Part diagrams will help you easily identify the components you need. With Bad Boy Lawn Mower Parts, you can count on durable, reliable replacements that extend the life of your mower. Shopping is simple with Bad Boy Parts Online, and you can benefit from Free Shipping On Orders Over $100. If you need a 2011 Outlaw & Outlaw Extreme Front Wheel Assembly, visit BadBoyMowerParts.com for a quick, easy, and cost-effective solution.

Bad Boy Mower Parts Lookup

2011 Outlaw & Outlaw Extreme - Front Wheel Assembly
  Position Number SKU Product Title Price
1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
2A 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
2 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
3A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
3 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
4 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
5 022-3060-00 022-3060-00 - 13 x 6.50 - 6 LARGE BORE, Orange Front Assembly
$122.99
6 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$139.99
7 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
8 013-7004-00 013-7004-00 - 1-14 Hex Castle Nut Plain (Slotted Nut)
$8.35
9 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
10 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
11 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
