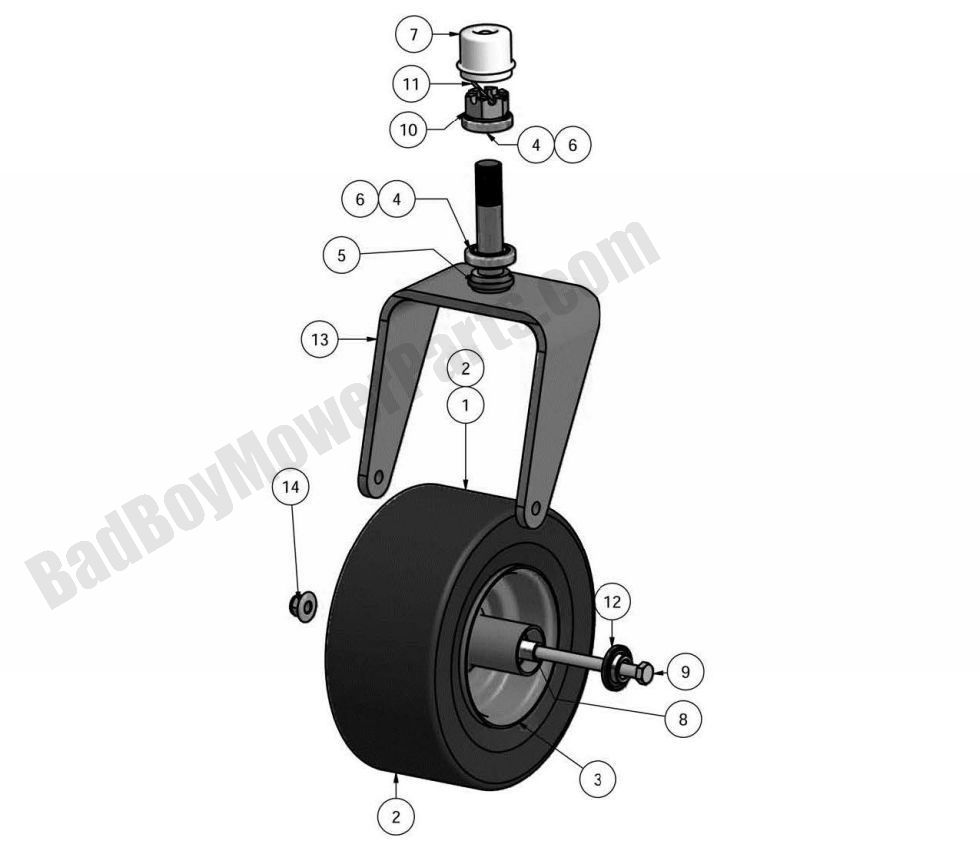

2011 ZT - Front Wheel Assembly

2011 ZT - Front Wheel Assembly

The 2011 ZT Front Wheel Assembly plays a critical role in ensuring your mower’s stability and maneuverability. At BadBoyMowerParts.com, we provide a wide selection of genuine Bad Boy Mower Parts to keep your equipment in top working order. Our detailed Bad Boy Mower Part diagrams make it easier than ever to find the correct replacement parts for your mower. Whether you're replacing a worn-out wheel or need to repair the entire assembly, our extensive inventory of Bad Boy Lawn Mower Parts ensures you'll find exactly what you need. We offer Bad Boy Parts Online, making it quick and convenient to place an order. A functional front wheel assembly ensures that your mower is not only stable but also performs well on a variety of terrains. Don’t forget, with Free Shipping On Orders Over $100, you can get your parts delivered straight to your door at no extra cost. Keep your 2011 ZT running smoothly by choosing BadBoyMowerParts.com for all your front wheel assembly needs.

Bad Boy Mower Parts Lookup

2011 ZT - Front Wheel Assembly
  Position Number SKU Product Title Price
1 022-2006-00 022-2006-00 - 13 x 6.50 - 6 Orange Tire and Wheel Assembly
$119.99
2 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
3 022-7002-00 022-7002-00 - 6 x 4.5 Orange Wheel (One Rim Only)
$77.03
4 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
5 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
6A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
6 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
7 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
8 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
9 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
10 013-7004-00 013-7004-00 - 1-14 Hex Castle Nut Plain (Slotted Nut)
$8.35
11 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
12 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
13 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$139.99
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
