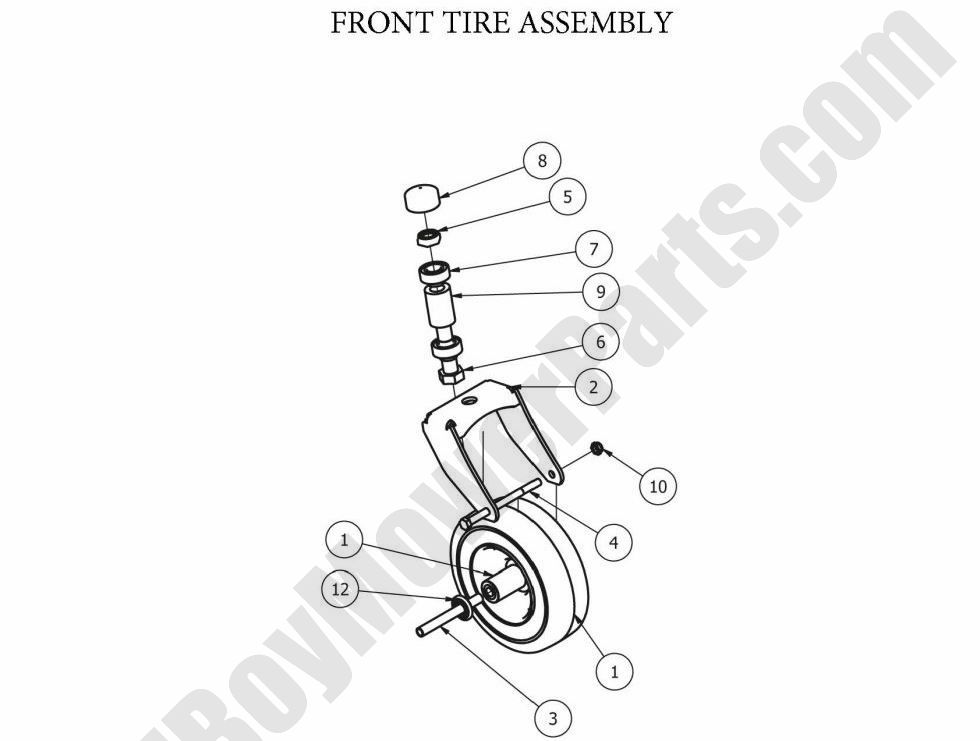

2012 MZ - Front Wheel Assembly

2012 MZ - Front Wheel Assembly

The 2012 MZ Front Wheel Assembly is a critical component for ensuring smooth and easy maneuverability of your Bad Boy mower. If you’re experiencing uneven or difficult steering, the front wheel assembly may need to be replaced. At BadBoyMowerParts.com, we provide a full selection of Bad Boy Mower Parts for the 2012 MZ model, including the front wheel assembly and related components. Our user-friendly Bad Boy Mower Part diagrams make it simple to identify the right parts you need, so you can quickly get back to mowing. We understand the importance of quality, which is why all our Bad Boy Lawn Mower Parts are designed to be durable and long-lasting. Ordering Bad Boy Parts Online is a breeze, and you can take advantage of Free Shipping On Orders Over $100 to save on shipping costs while keeping your mower in peak condition. Replace the front wheel assembly and restore smooth operation to your 2012 MZ mower today.

Bad Boy Mower Parts Lookup

2012 MZ - Front Wheel Assembly
  Position Number SKU Product Title Price
1 022-8049-00 022-8049-00 - 11x6.00-5 Front Assembly (One Tire and Rim Assy)
$99.39
2 023-1000-00 023-1000-00 - 2010-2016 MZ Front Fork
$106.14
3 025-0008-00 025-0008-00 - Front Wheel Spanner - MZ
$15.60
4 018-0004-00 018-0004-00 - 1/2-13 X 7" Hex Bolt -
$5.49
5 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
6 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
7 010-2000-00 010-2000-00 - Front Fork Caster Bearing (See Models Used On For Details)
$16.68
8 014-2050-00 014-2050-00 - Rubber Caster Bearing Cover (See Models Used On For Details)
$3.73
9 025-0005-00 025-0005-00 - MZ Caster Bearing Spacer
$12.64
10 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
12 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
