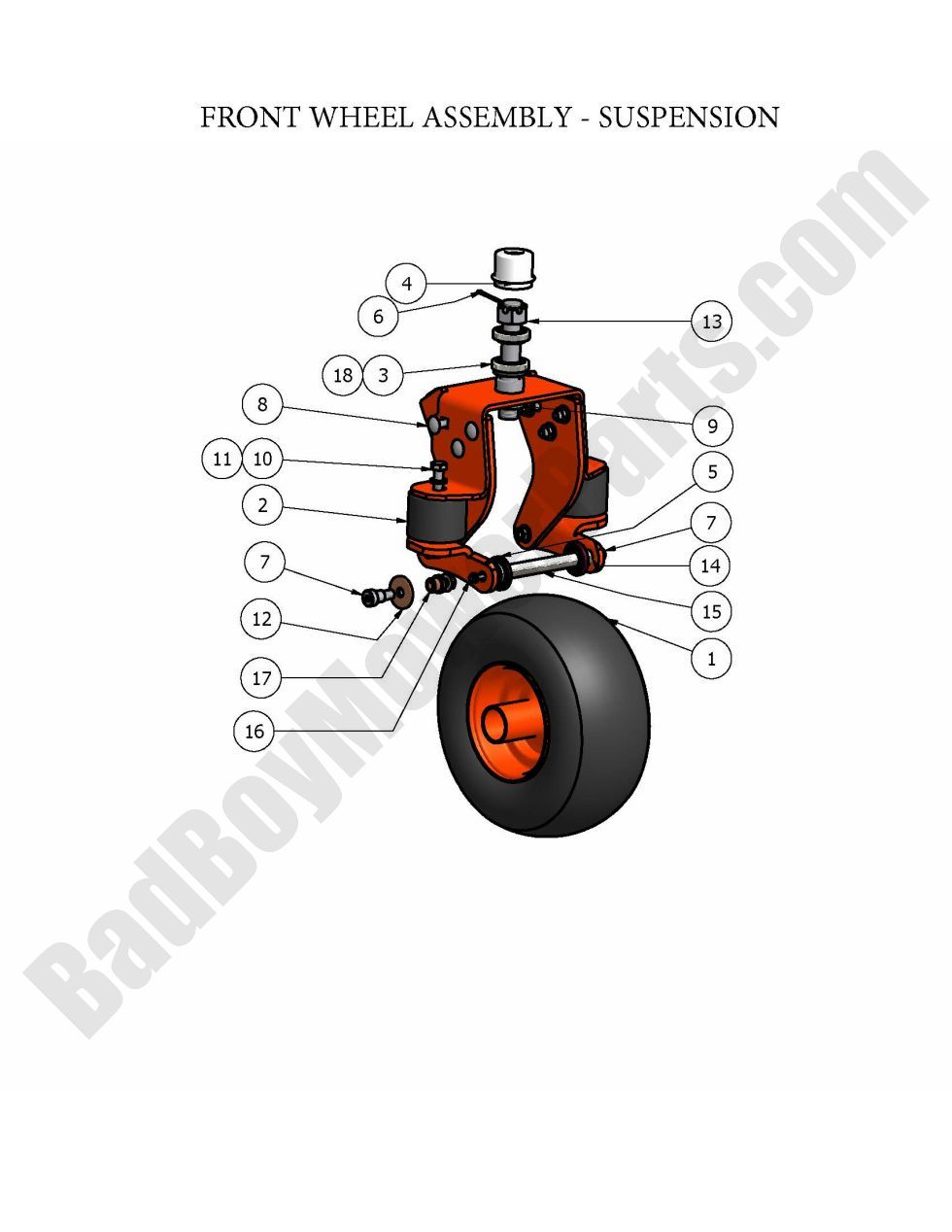

2009 Diesel - Front Wheel Assembly

2009 Diesel - Front Wheel Assembly

The 2009 Diesel Front Wheel Assembly plays a crucial role in the stability and mobility of your Bad Boy Mower. If you're in need of replacement parts, BadBoyMowerParts.com offers a wide variety of Bad Boy Mower Parts designed to fit your mower model perfectly. Our detailed Bad Boy Mower Part Diagrams make finding the right front wheel assembly or individual components a breeze. Whether you're looking for wheels, axles, or related suspension parts, we have you covered. Our website offers a wide selection of Bad Boy Lawn Mower Parts that can be ordered with ease. Shop for Bad Boy Parts Online and get your parts delivered right to your door, ensuring minimal downtime for your mower. Plus, with Free Shipping On Orders Over $100, you can save on delivery while getting your mower back in action. Order your front wheel assembly today and keep your 2009 Diesel mower moving smoothly.

Bad Boy Mower Parts Lookup

2009 Diesel - Front Wheel Assembly
  Position Number SKU Product Title Price
1 022-3060-00 022-3060-00 - 13 x 6.50 - 6 LARGE BORE, Orange Front Assembly
$122.99
2 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
3A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
3 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
5 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
6 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
7 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
8 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
9 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
10 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
11 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
12 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
13 013-7004-00 013-7004-00 - 1-14 Hex Castle Nut Plain (Slotted Nut)
$8.35
14 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
14 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
15 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
16 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
17 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
18 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
