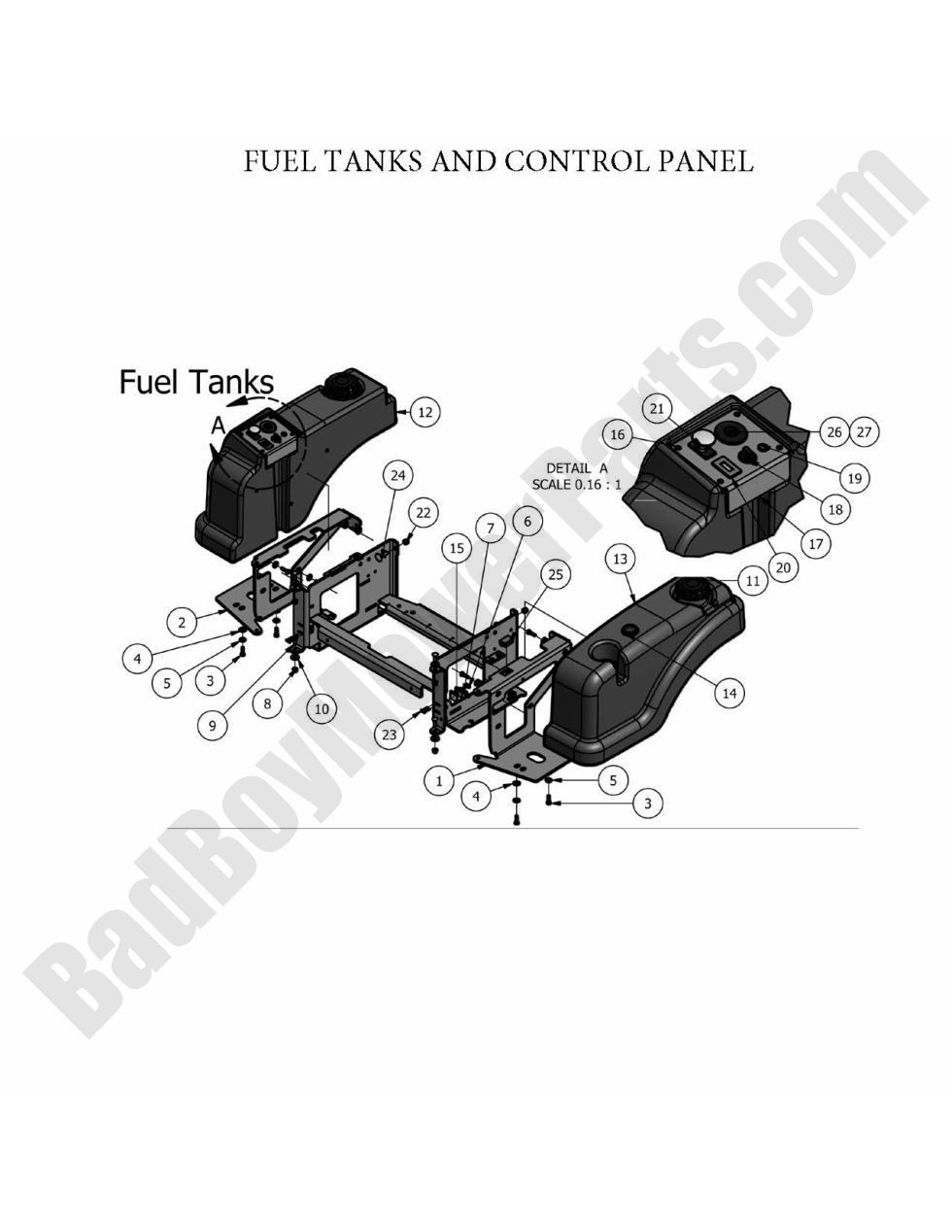

2010 Outlaw & Outlaw Extreme - Fuel Tanks

2010 Outlaw & Outlaw Extreme - Fuel Tanks

The 2010 Outlaw & Outlaw Extreme Fuel Tanks ensure secure fuel storage and optimal fuel flow, keeping your mower running efficiently. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including fuel tanks, gas caps, fuel lines, brackets, and mounting hardware to ensure proper fuel containment. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for long-lasting reliability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct fuel tank components for seamless installation. Routine maintenance prevents leaks, enhances fuel efficiency, and ensures continuous operation. With access to Bad Boy Parts Online, ordering replacement fuel tank components is quick and simple. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 Outlaw & Outlaw Extreme Fuel Tanks is now more affordable. Order today to ensure secure fuel storage and maximize the efficiency of your mower’s fuel system.

Bad Boy Mower Parts Lookup

2010 Outlaw & Outlaw Extreme - Fuel Tanks
  Position Number SKU Product Title Price
1 031-2006-00 031-2006-00 - Tank Support R (See Models Used On For Details)
$47.07
2 031-2007-00 031-2007-00 - Tank Support L (See Models Used On For Details)
$47.07
3 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
4 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
5 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
6 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
7 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
8 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
9 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
12 067-5000-50 067-5000-50 - Right Fuel Tank (See Models Used On For Details)
$329.99
13 067-5001-50 067-5001-50 - Left Fuel Tank (See Models Used On For Details)
$329.99
14 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
15 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
16 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
17 079-3300-00 079-3300-00 - 2010-2014 Outlaw/XP Instrument Panel
$23.78
18 077-2075-00 077-2075-00 - 12-Volt Auxiliary Plug
$21.39
19 089-1000-00 089-1000-00 - Oil Light
$12.63
20 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
21 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
22 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
23 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
24 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
25 018-1040-00 018-1040-00 - Light Plug
$2.99
26 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
27 042-9000-00 042-9000-00 - Ignition Key
$4.06
