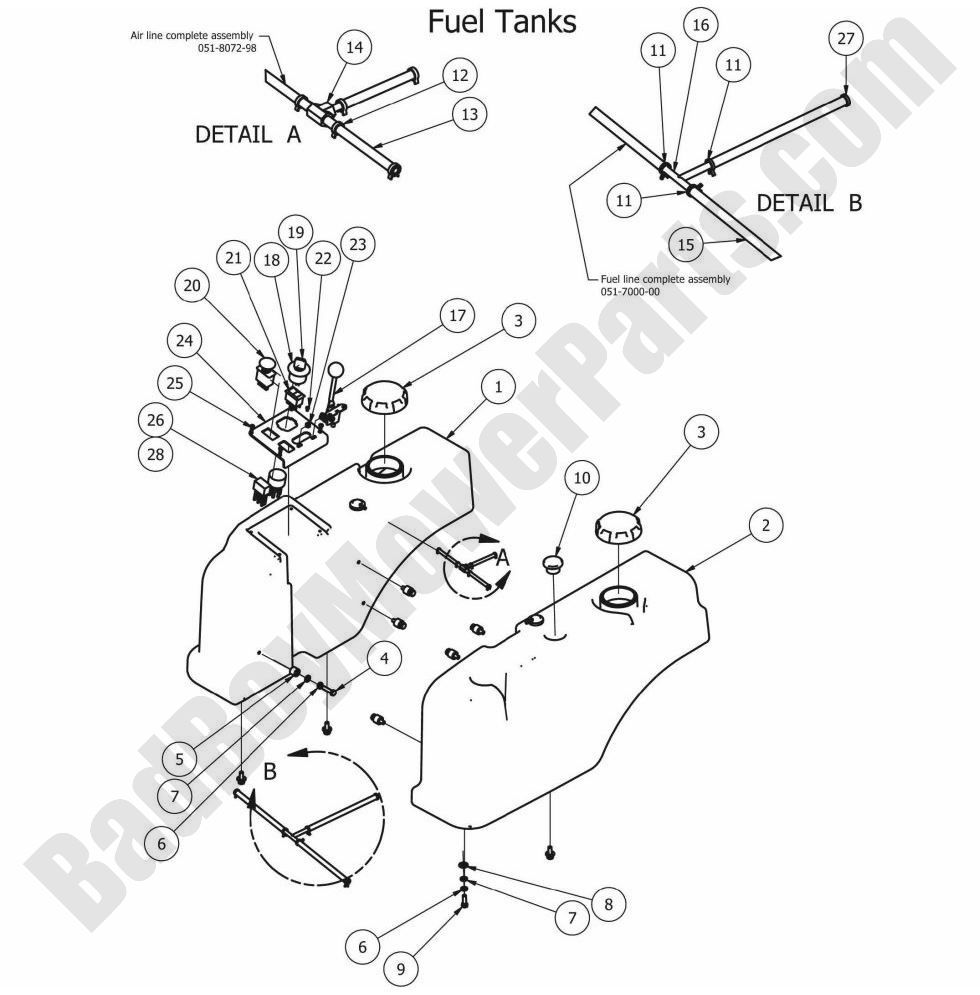

2012 CZT - Fuel Tanks

2012 CZT - Fuel Tanks

Introducing the 2012 CZT Fuel Tanks, high-quality components designed to store and deliver fuel safely and efficiently to your mower. Constructed from corrosion-resistant materials, these fuel tanks are engineered to withstand harsh environmental conditions and regular use in both residential and commercial settings. Their robust design ensures secure fuel containment and reliable performance, minimizing leakage and maximizing engine efficiency. The tanks are easy to install and maintain, with clear instructions provided to ensure proper integration with your mower’s fuel system. This essential component plays a critical role in maintaining consistent fuel flow and optimal engine performance throughout every mowing session. For detailed schematics, verified components, and expert support, please consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for further guidance and advice. Upgrade your mower with fuel tanks, ensuring operation each time. Enjoy efficiency today.

Bad Boy Mower Parts Lookup

2012 CZT - Fuel Tanks
  Position Number SKU Product Title Price
3 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
4 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
5 025-2000-00 025-2000-00 -.380x.735x.470 Nylon Spacer
$2.99
6 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
7 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
8 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
10 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
11 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
12 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
13 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
14 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
15 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
16 073-8068-00 073-8068-00 - Fuel Line T
$9.70
18 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
19 042-9000-00 042-9000-00 - Ignition Key
$4.06
20 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
21 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
22 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
23 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
24 079-3400-00 079-3400-00 - 2011-2012 CZT/ZT Control Panel With round hole for toggle
$31.55
25 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
26 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99
27 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
28 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
