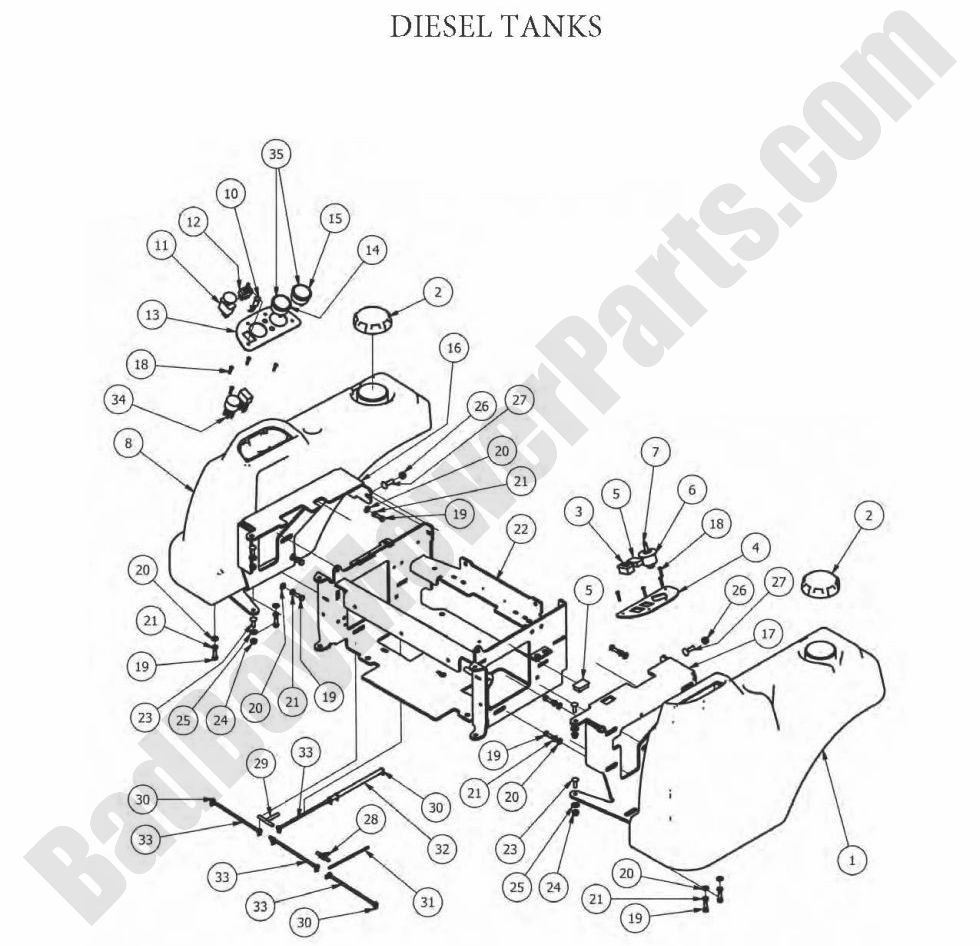

2012 Diesels - Fuel Tanks

2012 Diesels - Fuel Tanks

A properly functioning Fuel Tank is essential for the efficient operation of your 2012 Diesels Bad Boy mower. If your fuel tank is damaged or needs replacing, BadBoyMowerParts.com has the parts you need to keep your mower in top shape. We offer a comprehensive range of Bad Boy Mower Parts, including fuel tanks and their components, to ensure your mower runs smoothly and efficiently. Our Bad Boy Mower Part diagrams make it easy to identify the right fuel tank for your specific model. When you order Bad Boy Lawn Mower Parts from our website, you can be confident that you’re getting quality components designed for long-lasting performance. Plus, with Free Shipping On Orders Over $100, you can enjoy even greater value when ordering from us. Shop for Bad Boy Parts Online and ensure that your 2012 Diesels mower’s fuel system is operating optimally, helping to extend the lifespan and performance of your equipment.

Bad Boy Mower Parts Lookup

2012 Diesels - Fuel Tanks
  Position Number SKU Product Title Price
1A 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
1 067-3000-00 067-3000-00 - Diesel/AOS Fuel Tank - Left
$509.99
2 066-8090-00 066-8090-00 - Diesel Fuel Cap-3.5 inch Neck
$39.86
3 083-4014-00 083-4014-00 - Diesel Hourmeter
$62.40
4 079-3402-00 079-3402-00 - Left Diesel Instrument Panel (See Models Used On For Details)
$22.71
5 018-1040-00 018-1040-00 - Light Plug
$2.99
6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
7 042-9000-00 042-9000-00 - Ignition Key
$4.06
8 067-3001-00 067-3001-00 - Diesel/AOS Fuel Tank - Right
$214.99
10 089-1000-00 089-1000-00 - Oil Light
$12.63
11 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
12 078-8077-00 078-8077-00 - Joystick - Deck Lift
$42.79
13 079-3405-00 079-3405-00 - Right Diesel Control Panel (See Models Used On For Details)
$17.11
14 086-7001-00 086-7001-00 - 2" Water Temperature Gauge (See Models Used On For Details)
$100.71
15 086-7000-00 086-7000-00 - 2" Oil Pressure Gauge (See Models Used On For Details)
$100.71
16 031-2010-00 031-2010-00 - 72 Tank Supports- Left
$59.91
17 031-2011-00 031-2011-00 - 72 Tank Support- Right (See Models Used On For Details)
$59.91
18 018-2015-00 018-2015-00 - 10-32 x 1 Button Head Bolt
$2.99
19 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
20 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
21 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
22 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$399.99
23 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
24 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
26 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
27 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
28 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
29 073-8068-00 073-8068-00 - Fuel Line T
$9.70
30 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
31 051-8068-00 051-8068-00 - 3/16 Fuel Line
$3.59
32 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
33 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
34 086-0035-00 086-0035-00 - Harness-28/35 Diesel w/Plastic Tank
$463.10
35 086-7002-00 086-7002-00 - Pigtail-2" Faria Gauge-2012
$28.32
