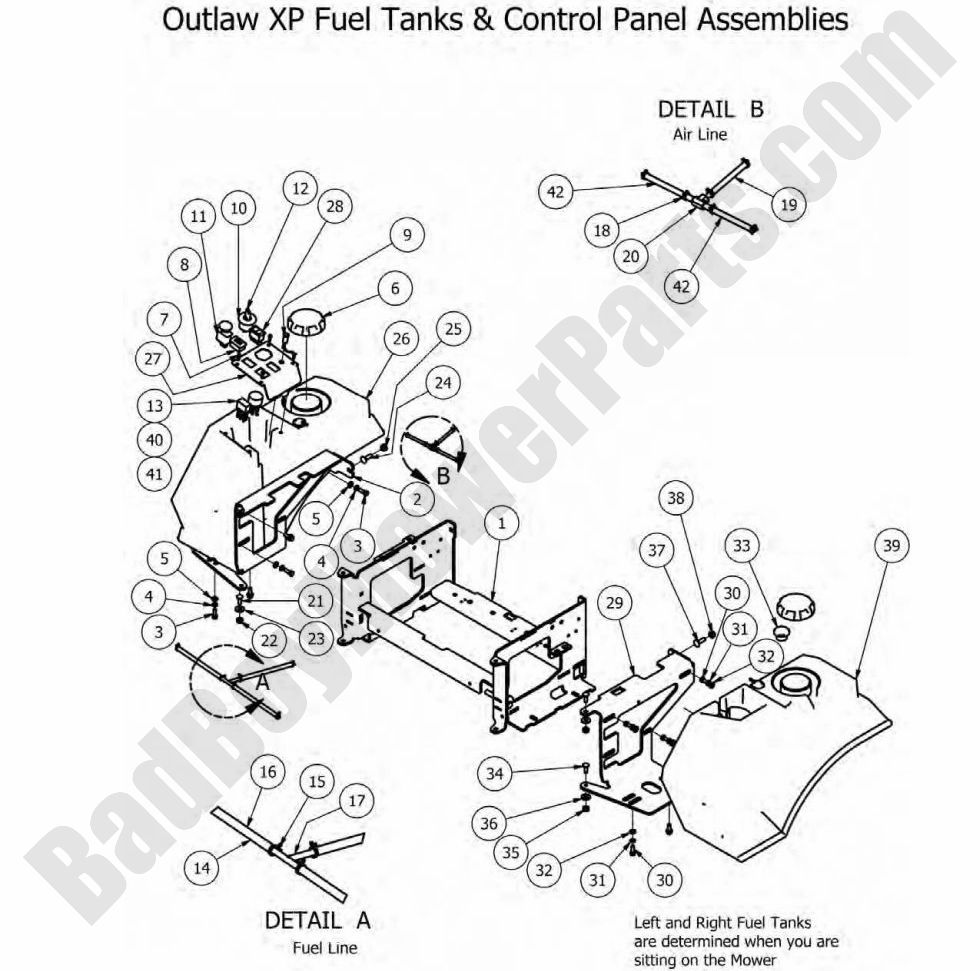

2012 Outlaw XP - Fuel Tanks

2012 Outlaw XP - Fuel Tanks

The fuel tank of the 2012 Outlaw XP is essential for storing and supplying fuel to your engine, and ensuring it’s in good condition is important for the mower’s performance. If you're in need of a replacement or repair, BadBoyMowerParts.com offers a variety of Bad Boy Mower Parts for your fuel system. We carry Bad Boy Lawn Mower Parts designed to fit the fuel tank of your 2012 Outlaw XP, including tank assemblies and related components. Our detailed Bad Boy Mower Part diagrams help you find the right parts quickly, so you can get your mower back to work. Whether you're replacing a cracked fuel tank or performing maintenance, we have high-quality parts for all your fuel system needs. Shopping Bad Boy Parts Online allows you to conveniently order parts from our trusted store. Plus, with Free Shipping On Orders Over $100, you can save on delivery costs while ensuring your mower is always ready to go. Visit BadBoyMowerParts.com for all your fuel tank needs.

Bad Boy Mower Parts Lookup

2012 Outlaw XP - Fuel Tanks
  Position Number SKU Product Title Price
1 080-5000-00 080-5000-00 - Outlaw Seat Bracket 2012 Assembly
$399.99
2 031-2030-00 031-2030-00 - 2012-2014 Outlaw Tank Support Right
$78.08
3 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
4 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
5 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
6 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
7 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
9 089-1000-00 089-1000-00 - Oil Light
$12.63
10 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
11 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
12 042-9000-00 042-9000-00 - Ignition Key
$4.06
13 086-0045-00 086-0045-00 - Wiring Harness - 31hp Kawasaki
$499.99
14 051-7070-00 051-7070-00 - Fuel Line Assy - 31HP Outlaw
$53.49
15 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
16 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
17 073-8068-00 073-8068-00 - Fuel Line T
$9.70
18 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
19 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
20 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
21 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
22 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
23 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
24 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
25 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99

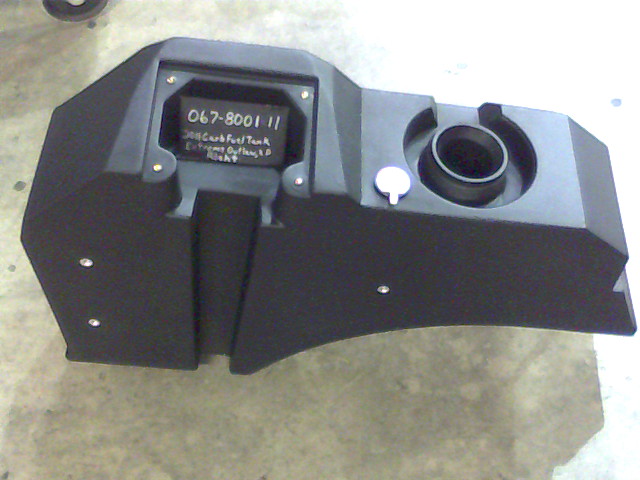

26 067-8001-11 067-8001-11 - 2011 CARB Fuel Tank - Extreme Outlaw, XP - Right (obsolete)
use part #067-8001-50
$329.99
27 079-3350-00 079-3350-00 - 2012-2014 Outlaw XP Control Panel with Actuator Rocker Switch
$31.22
28 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
29 031-2031-00 031-2031-00 - 2012-2014 Outlaw Tank Support Left
$78.08
33 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
39 067-8000-11 067-8000-11 - OBSOLETE use 067-8000-50 2011 CARB Fuel Outlaw XP Left (obsolete)
use part #067-8000-50
$358.99
40 086-0032-00 086-0032-00 - Wiring Harness-32hp Lightning/ 36hp Outlaw
$330.40
41 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
42 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
