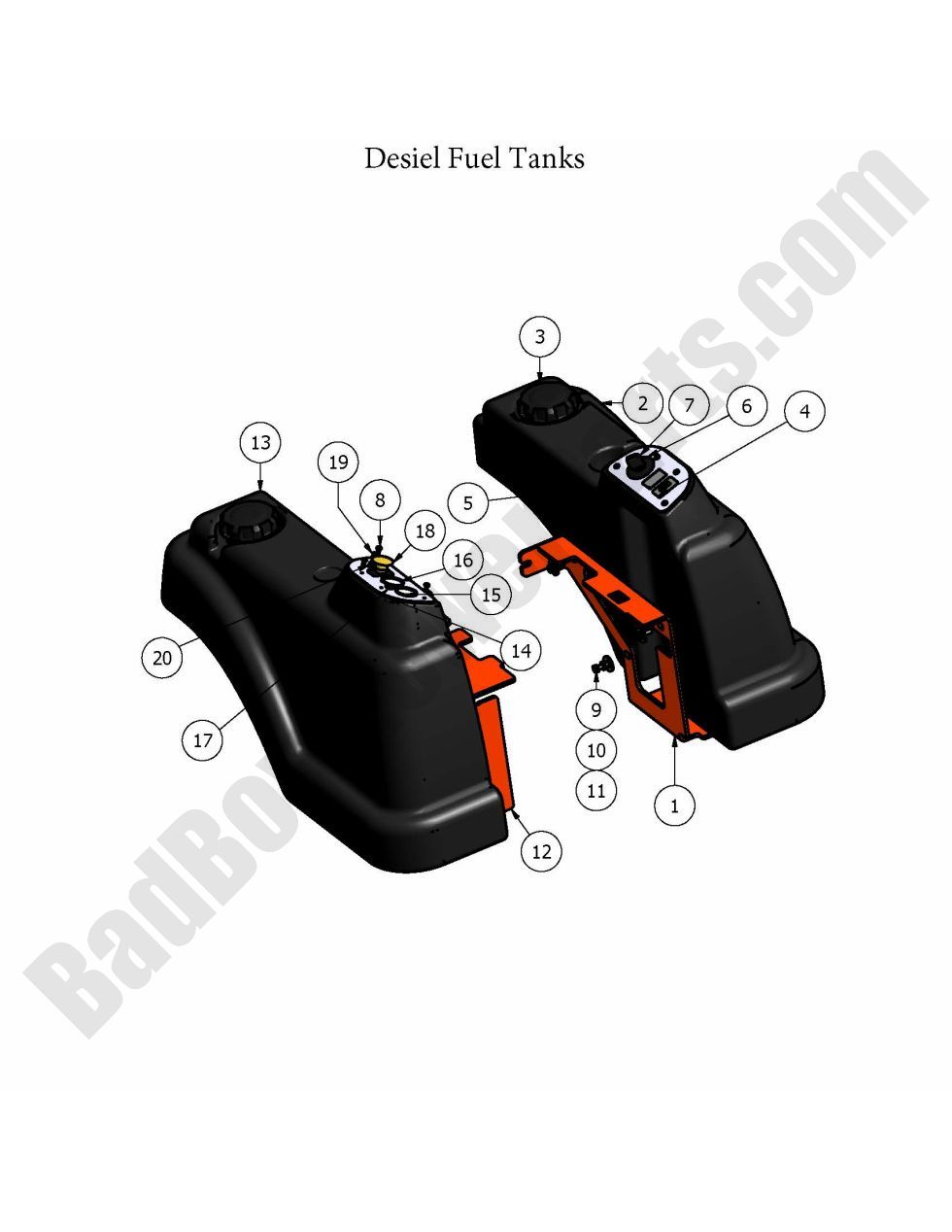

2009 Diesel - Fuel Tanks

2009 Diesel - Fuel Tanks

The 2009 Diesel Fuel Tanks on your Bad Boy Mower are vital for keeping your mower running efficiently, and at BadBoyMowerParts.com, we provide high-quality replacement tanks to keep you going. Whether your fuel tank is damaged or you're looking for a spare, we offer a wide range of Bad Boy Mower Parts that are built to last. Our easy-to-use Bad Boy Mower Part Diagrams help you identify the right fuel tank and any other parts you might need for your mower. We also offer Bad Boy Lawn Mower Parts for other essential systems in your mower, ensuring that it continues to operate at peak efficiency. Shopping for Bad Boy Parts Online is simple and fast on our website, and we make it easy to find the parts that are compatible with your 2009 Diesel mower. Plus, take advantage of Free Shipping On Orders Over $100, so you can save on delivery costs while keeping your mower in top shape.

Bad Boy Mower Parts Lookup

2009 Diesel - Fuel Tanks
  Position Number SKU Product Title Price

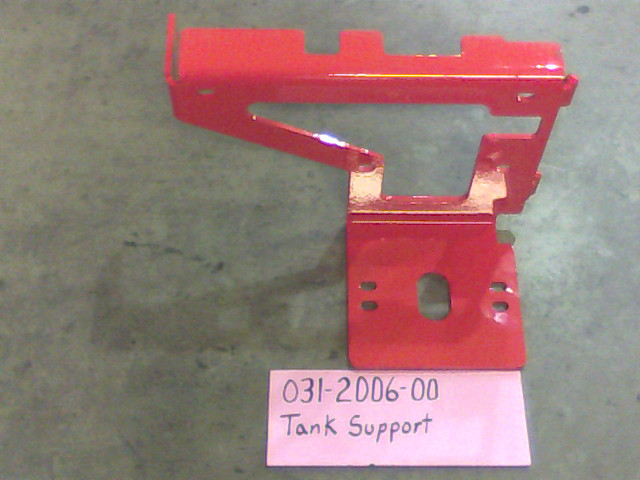

1 031-2006-00 031-2006-00 - Tank Support R (See Models Used On For Details)
$47.07
2 067-3000-00 067-3000-00 - Diesel/AOS Fuel Tank - Left
$509.99
3 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
4 083-4014-00 083-4014-00 - Diesel Hourmeter
$62.40
5 079-3402-00 079-3402-00 - Left Diesel Instrument Panel (See Models Used On For Details)
$22.71
6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
7 042-9000-00 042-9000-00 - Ignition Key
$4.06
8 018-5301-00 018-5301-00 - M10x1.25x25MM 8.8 Hex Bolt
$2.99

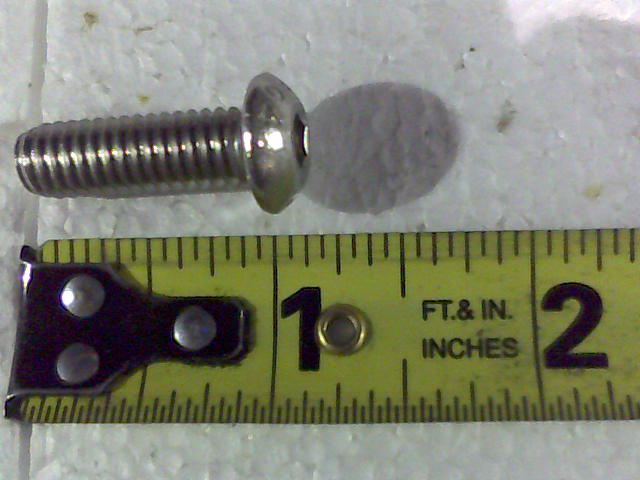

9 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
10 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
11 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
12 031-2011-00 031-2011-00 - 72 Tank Support- Right (See Models Used On For Details)
$59.91
13 067-3001-00 067-3001-00 - Diesel/AOS Fuel Tank - Right
$214.99
14 079-3403-00 079-3403-00 - 2007-2011 Right Diesel Instrument Panel
$17.11
15 086-5001-00 086-5001-00 - 2007-2011 Diesel Oil Pressure Gauge w/Sender
$169.99
16 086-5000-00 086-5000-00 - 2007-2011 Diesel Water Temp Gauge w/ Sender
$123.99
17 089-1000-00 089-1000-00 - Oil Light
$12.63
18 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
19 078-8077-00 078-8077-00 - Joystick - Deck Lift
$42.79

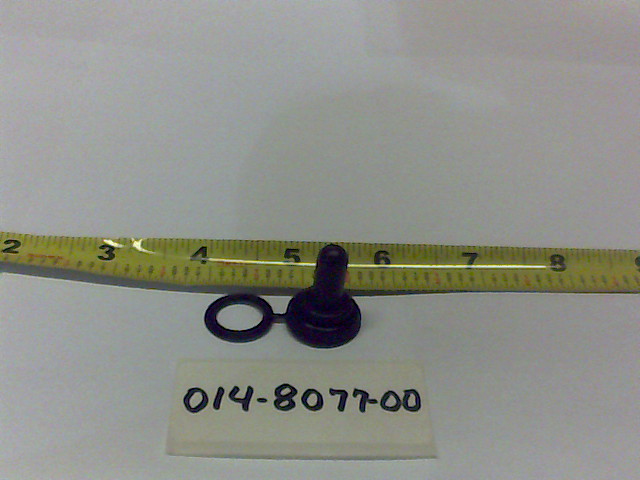

20 014-8077-00 014-8077-00 - Rubber Joystick Boot for Deck Lift Switch
$11.34
