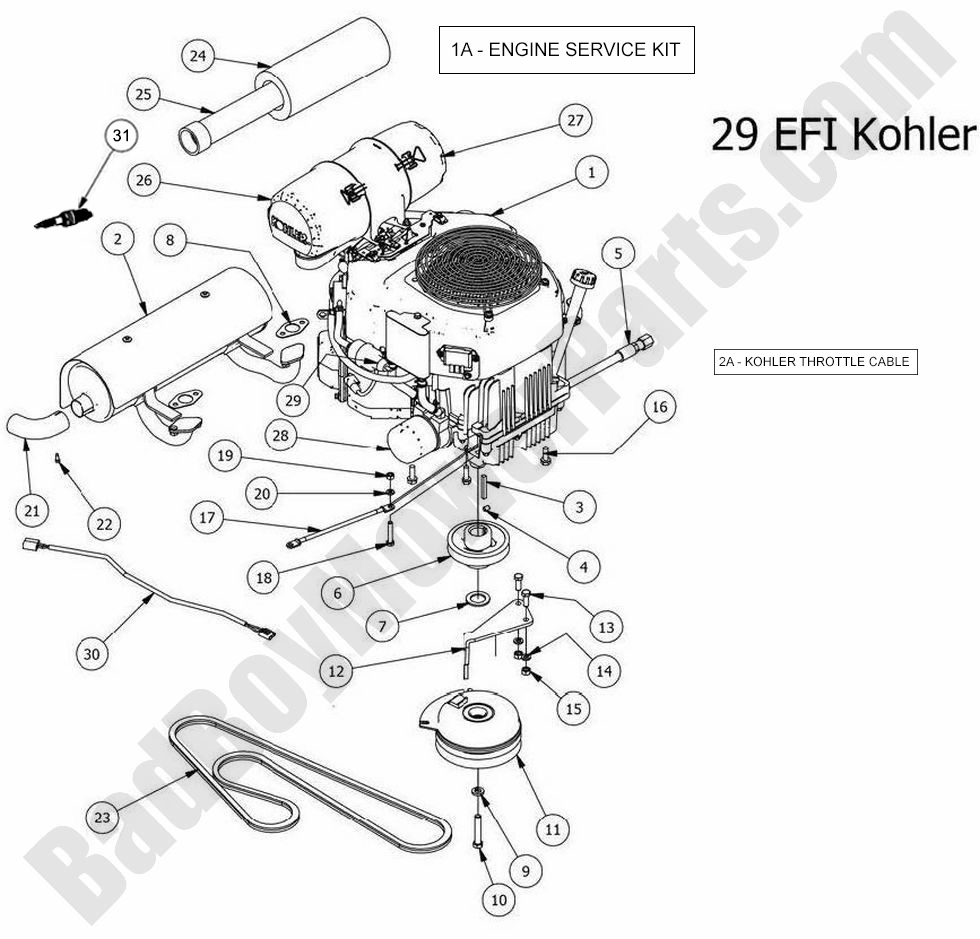

2014 Outlaw & Outlaw Extreme - Engine - Kohler 29HP EFI

2014 Outlaw & Outlaw Extreme - Engine - Kohler 29HP EFI

The 2014 Outlaw & Outlaw Extreme Engine - Kohler 29HP EFI is engineered for power and efficiency, making it the ideal engine for demanding lawn care tasks. BadBoyMowerParts.com offers a comprehensive selection of Bad Boy Mower Parts that are compatible with this engine, ensuring optimal performance and longevity. Our Bad Boy Mower Part Diagrams make it easy to find the correct components, whether you’re replacing the fuel pump, carburetor, or air filter. When you order Bad Boy Lawn Mower Parts, you’re choosing parts that are designed specifically for the 2014 Outlaw & Outlaw Extreme to keep it running smoothly. With Bad Boy Parts Online, you can shop from the comfort of your home, and with Free Shipping On Orders Over $100, you’ll save on shipping costs while getting the parts you need delivered straight to your door.

Bad Boy Mower Parts Lookup

2014 Outlaw & Outlaw Extreme - Engine - Kohler 29HP EFI
  Position Number SKU Product Title Price
1A 063-2000-18 063-2000-18 - Kohler ECV860 & ECV880 Engine Service Kit
$138.99
1 015-2900-00 015-2900-00 - 29 EFI Kohler Engine (obsolete)
use part #015-0824-00
$3599.00
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2 015-0039-00 015-0039-00 - Exhaust 30 Kohler
$699.99
3 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
4 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
5 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
6 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
7 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
8 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
9 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
10 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
11 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
12 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
13 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
14 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
15 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
16 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
17 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
18 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
19 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
20 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
21 015-5400-00 015-5400-00 - Exhaust Extension
$21.28
22 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
23 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
24 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
25 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
26 015-2720-00 015-2720-00 - Kohler Air Canister Assy (See Models Used On for Details)
$333.99
27 015-2704-00 015-2704-00 - Kohler End Cap - New Style (See Models Used On For Details)
$56.70
28 063-5400-00 063-5400-00 - Oil Filter (Long) for Kohler Engines
$22.46
29 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
30 070-2010-00 070-2010-00 - 10 amp Clutch Pigtail-29 EFI (See Models Used On For Details)
$21.39
31 015-8002-00 015-8002-00 - Spark Plug for Kohler ECV860 & ECV880
$14.97
