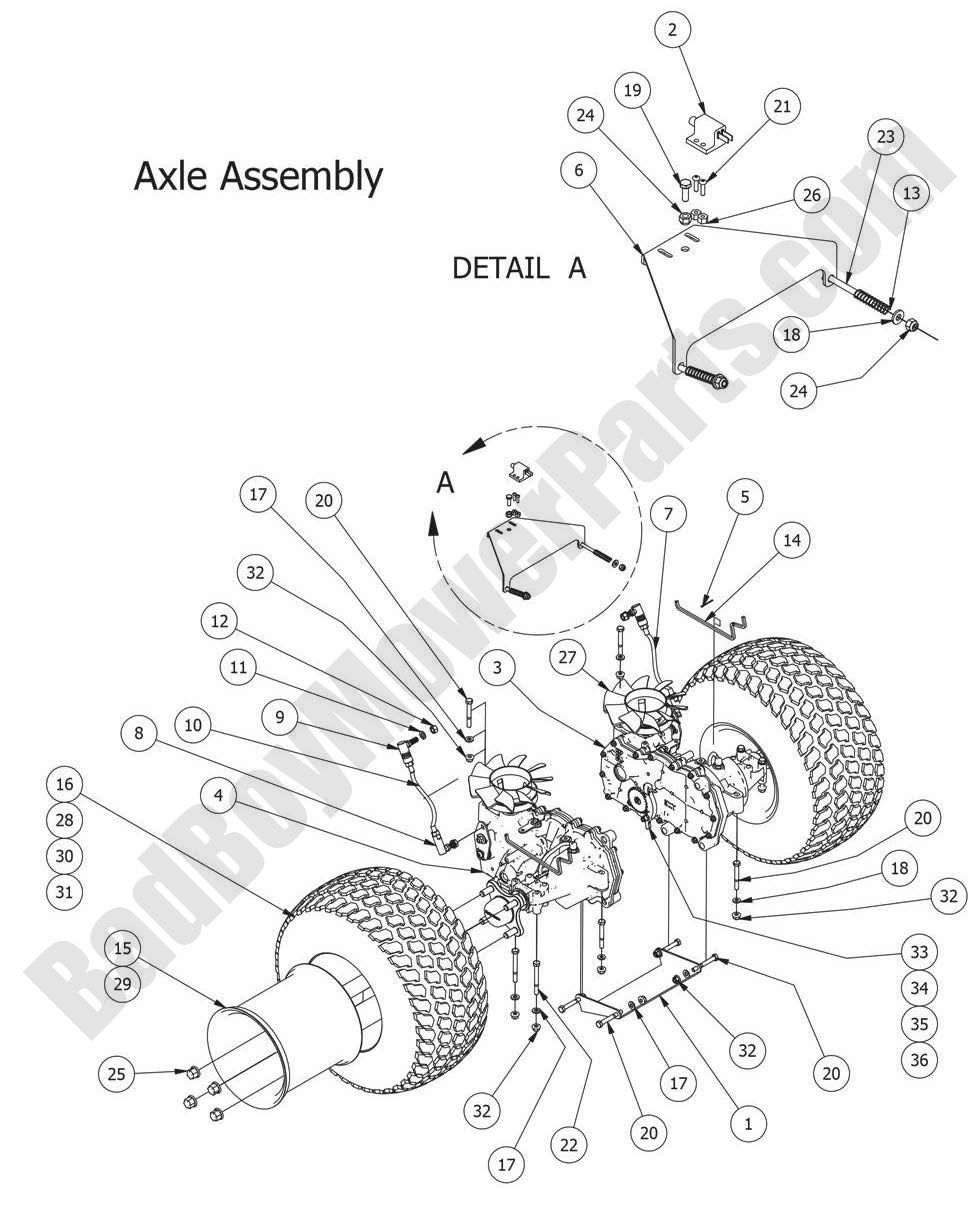

2014 MZ - Axle Assembly

2014 MZ - Axle Assembly

The 2014 MZ Axle Assembly is a crucial component for the movement of your mower, connecting the wheels to the frame and allowing the mower to drive. BadBoyMowerParts.com carries a full range of Bad Boy Mower Parts, including axle assemblies, wheel bearings, and other related components for the 2014 MZ model. Our Bad Boy Mower Part Diagrams provide detailed information, making it easy to find the correct parts for your mower's axle system. A well-maintained axle assembly ensures smooth operation, helping you achieve optimal performance and maneuverability while mowing. Along with axle parts, we offer a full selection of Bad Boy Lawn Mower Parts to address all your mower's needs. Ordering Bad Boy Parts Online is straightforward, and with Free Shipping On Orders Over $100, you can receive the parts you need without the added shipping cost. Keep your 2014 MZ Axle Assembly in top shape to ensure smooth operation and reliability.

Bad Boy Mower Parts Lookup

2014 MZ - Axle Assembly
  Position Number SKU Product Title Price
1 201-2020-00 201-2020-00 - MZ Transaxle Support (Lower)
$19.81
2 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
3 050-4030-00 050-4030-00 - EZT - Right - MZ Models ZC-APBB-3DKB-1FPX
$999.99
4 050-4031-00 050-4031-00 - EZT - Left Transaxle- MZ Models ZC-DPBB-3DKC-1FPX
$999.99
5 040-2025-00 040-2025-00 - Cotter Pin-Brake Bar on MZ
$2.99
6 039-1124-00 039-1124-00 - Brake Lock Bracket
$9.89
8 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
9 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
11 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
13 034-3050-00 034-3050-00 - Spring-Brake Lock Bracket MZ
$2.99
14 028-0060-00 028-0060-00 - Brake Release Bar (See Models Used On For Detail)
$7.28
15 022-8026-00 022-8026-00 - Rear Wheel 48in MZ (One Rim Only)
$106.19
16 022-8025-00 022-8025-00 - 18x9.50-8 Rear Tire Only (One Tire Only)
$197.99
17 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
18 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
19 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
20 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
21 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
22 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
23 018-1076-00 018-1076-00 - 1/4-20 x 2-1/2 Gr2 Hex C/S Zinc
$2.99
24 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
25 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
26 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
27 050-2074-00 050-2074-00 - Fan/Pulley Kit for 2012-2016 MZ/MZ Magnum
$65.26
28 022-8027-00 022-8027-00 - 18x8.50-8 Rear Tire Only 42 MZ (One Tire Only)
$136.99
29 022-8028-00 022-8028-00 - Rear Wheel 42in MZ (One Rim Only)
$85.27
30 022-8050-00 022-8050-00 - 18x9.50-8 Tire and Wheel Assembly (One Tire & Rim Assy)
$229.99
31 022-2050-00 022-2050-00 - 18x8.50-8 w/8" Tire & Wheel Assembly Fits 42" MZ
$202.99
32 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
34 050-4033-00 050-4033-00 - MZ Retainer Ring for Brake
$19.86
35 050-4034-00 050-4034-00 - MZ Brake Gear Hydro Gear
$32.78
36 050-4036-00 050-4036-00 - Ring for Neutral Bypass fits the 3100 - 3200 - 3400 & EZT Transaxles
$12.83
