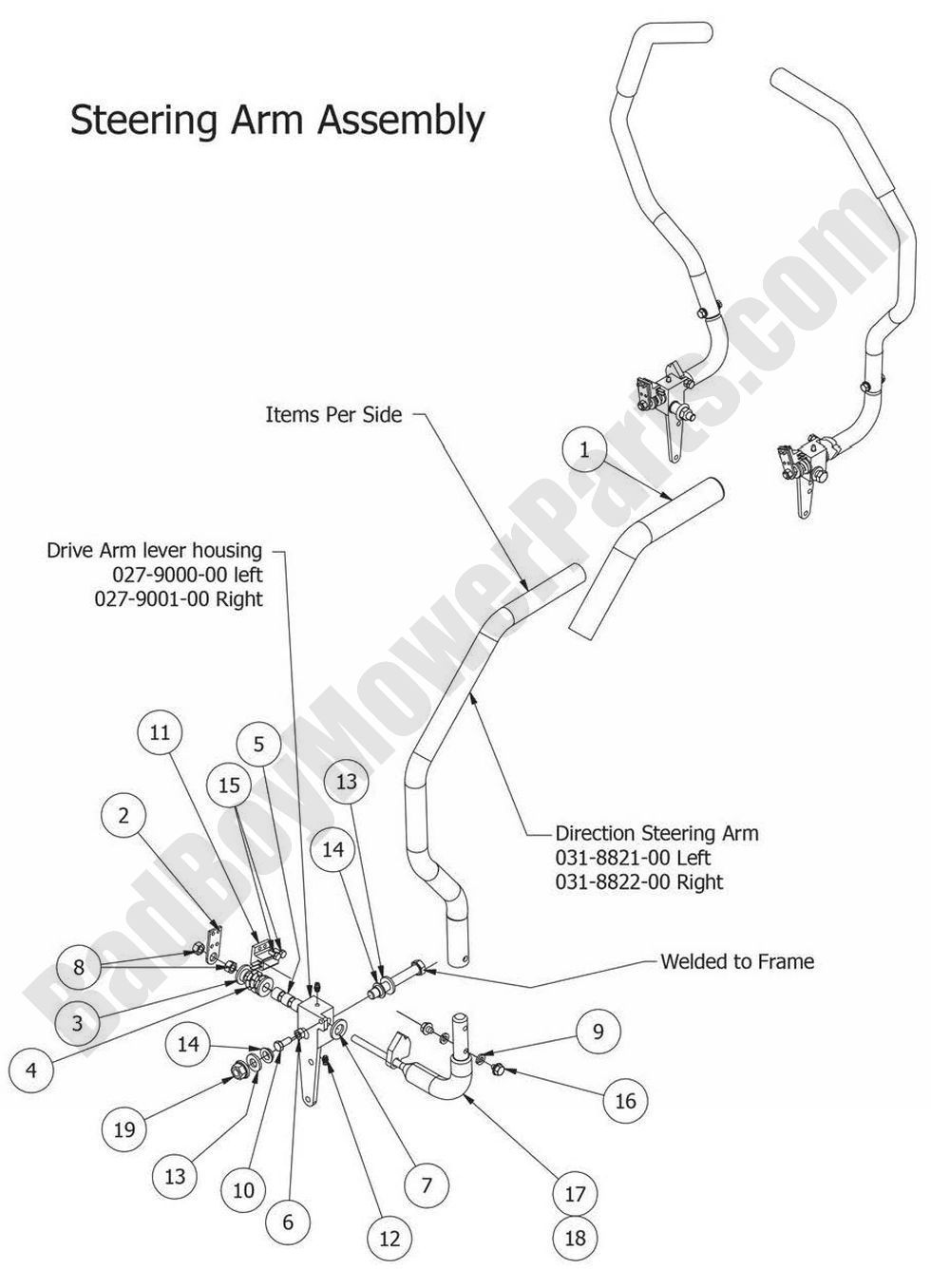

2014 MZ - Drive Arm Assembly

2014 MZ - Drive Arm Assembly

The 2014 MZ Drive Arm Assembly is an important part of your mower's drive system, helping to transfer power from the engine to the wheels. BadBoyMowerParts.com carries a full selection of Bad Boy Mower Parts, including drive arm assemblies, bearings, and related components to keep your 2014 MZ mower running smoothly. Our Bad Boy Mower Part Diagrams make it easy to identify and find the right drive arm parts for your specific model. A properly functioning drive arm assembly ensures that your mower maintains excellent traction and performance, making it easier to tackle challenging mowing tasks. Along with drive arm assemblies, we offer a variety of Bad Boy Lawn Mower Parts to address other areas of your mower, such as the engine and deck. Ordering Bad Boy Parts Online is fast and convenient, and with Free Shipping On Orders Over $100, you can have your parts delivered to your doorstep without additional shipping costs. Keep your 2014 MZ Drive Arm Assembly in top shape for reliable performance.

Bad Boy Mower Parts Lookup

2014 MZ - Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
2 039-1125-00 039-1125-00 - MZ Switch Bracket
$5.22
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
5 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
7 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
8 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
9 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
10 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
11 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
12 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
13 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
14 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
15 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
16 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
17 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
18 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
19 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
20 027-9000-00 027-9000-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Left)
$42.58
21 027-9001-00 027-9001-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Right)
$42.58
