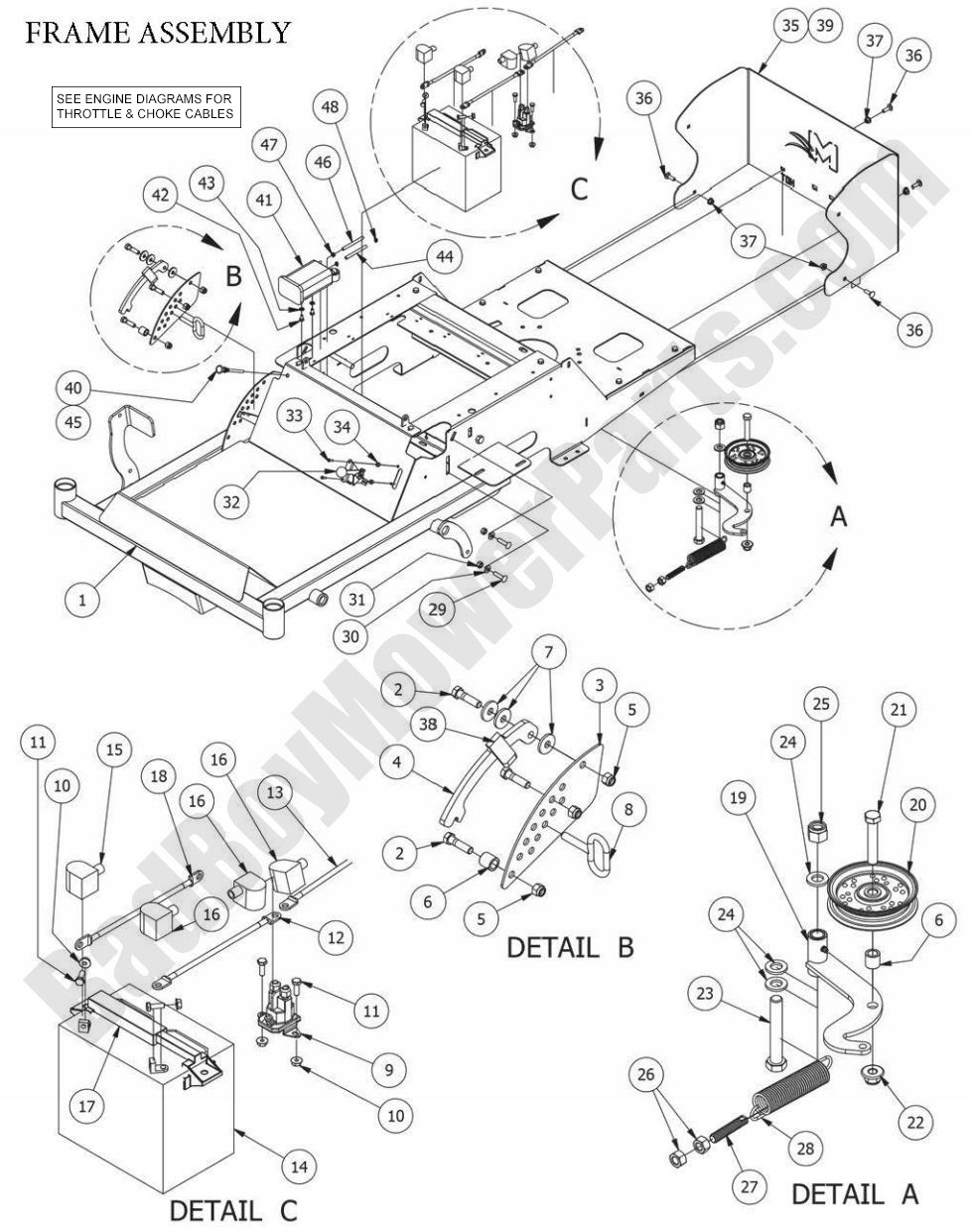

2014 MZ - Frame Assembly

2014 MZ - Frame Assembly

The 2014 MZ Frame Assembly is the backbone of your mower, providing structural support and housing for key components. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts designed to keep your mower’s frame in top condition. Whether you're replacing a damaged frame or upgrading components, our Bad Boy Mower Part Diagrams help you easily identify the parts you need. The frame assembly plays a key role in ensuring that the mower operates smoothly and safely, which is why it’s important to invest in high-quality replacement parts. Our Bad Boy Lawn Mower Parts are specifically designed for durability and performance, so you can rely on them for the long term. Ordering Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can get the parts you need without extra costs. Keep your 2014 MZ Frame Assembly strong and reliable with top-notch parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2014 MZ - Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5800-00 070-5800-00 - 2012-2016 MZ, 2013-2016 MZ Magnum Frame
$1461.53
2 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
3 026-2020-00 026-2020-00 - MZ Height Indicator Plate
$14.11
4 031-1050-00 031-1050-00 - 2010-2016 MZ, 2013-2016 MZ Magnum Deck Level Lock Lever
$31.23
5 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
6 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
7 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
8 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
9 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
10 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 064-0025-00 064-0025-00 - 10" Red Battery Cable
$13.90
13 064-0050-00 064-0050-00 - 62" Red Battery Cable
$21.39
15 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
16 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
18 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
19 039-7000-00 039-7000-00 - MZ Pump Idler Arm Bracket
$38.32
20 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
21 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
22 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
26 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
27 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
28 034-9050-00 034-9050-00 - Pump Idler Spring - Big Diameter
$17.11
29 018-0001-00 018-0001-00 - 3/8-16 X 1-1/2 Short Neck Carriage Bolt
$2.99
30 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
31 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
32 064-8057-00 064-8057-00 - Brake Cable for MZ (See Models Used On For Details)
$49.96
33 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
34 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
35 026-0110-00 026-0110-00 - MZ Rear Plate (27BS/26KA/22KA)
$88.99
36 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
37 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
38 014-2051-00 014-2051-00 - Deck Height Handle Grip MZ
$2.99
41 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
42 018-0025-00 018-0025-00 - M6-1.0x12mm Bolt
$2.99
43 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
44 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
46 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
47 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
48 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
