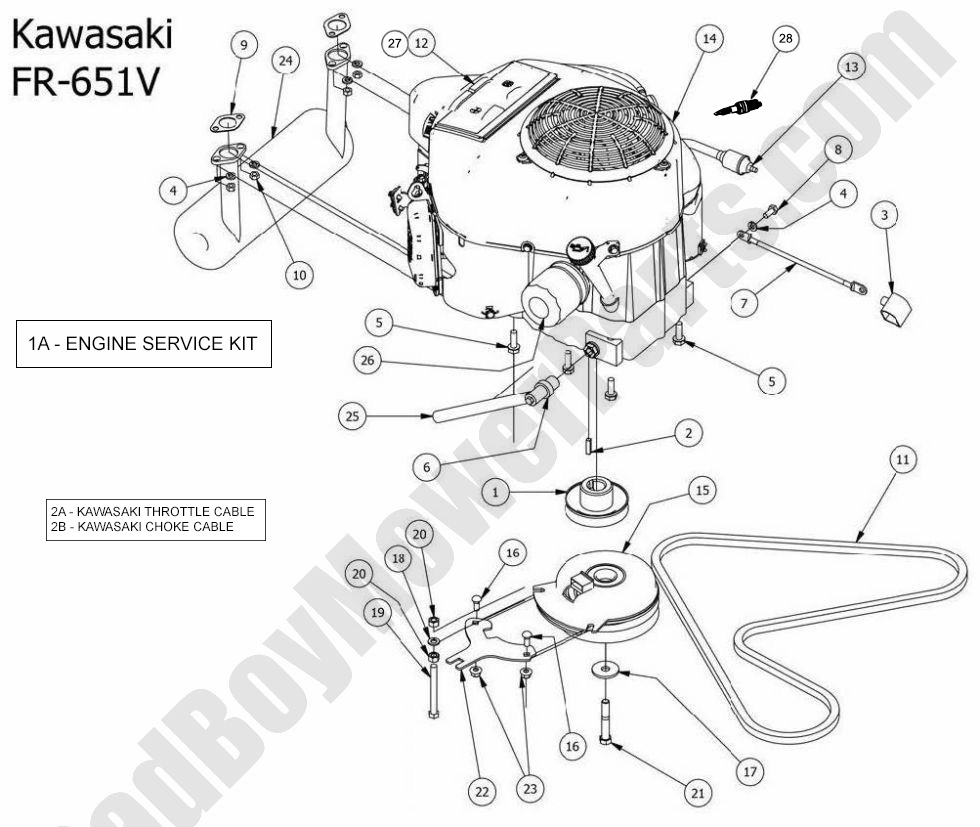

2014 MZ Magnum - Engine - Kawasaki FR651

2014 MZ Magnum - Engine - Kawasaki FR651

The 2014 MZ Magnum Engine - Kawasaki FR651 is a powerful and reliable engine that provides exceptional performance for your mower. At BadBoyMowerParts.com, we carry a range of Bad Boy Mower Parts for the 2014 MZ Magnum Engine - Kawasaki FR651, including air filters, spark plugs, and oil filters designed to maintain engine efficiency. Our Bad Boy Mower Part Diagrams help you easily locate the parts you need for the Kawasaki FR651 engine, ensuring that you can keep it running smoothly. With regular maintenance and the right parts, your engine will perform at its best, providing consistent power for mowing. We also offer a complete selection of Bad Boy Lawn Mower Parts for the rest of your mower to ensure it stays in top condition. Shopping Bad Boy Parts Online is quick and easy, and with Free Shipping On Orders Over $100, you’ll save on delivery costs.

Bad Boy Mower Parts Lookup

2014 MZ Magnum - Engine - Kawasaki FR651
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
2A 055-3000-00 055-3000-00 - 47" Throttle Cable for 2017 & Older MZ (Not Used On Briggs Smart Choke Models)
$26.74
2B 054-8016-00 054-8016-00 - 47" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
3 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
4 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
5 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
6 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$42.58
7 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
8 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
9 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
10 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
11 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
12.0 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
13 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
14 015-0022-00 015-0022-00 - FR651V-S00-S Kawasaki Engine
$2389.06
15 070-3000-00 070-3000-00 - 2010-2014 MZ/ Magnum UNITS ONLY Ogura PTO Clutch - 100 ft/lbs
$279.99
16 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
17 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
18 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
19 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
20 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
21 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
22 057-5920-00 057-5920-00 - 2010-2014 MZ Clutch Holder
$21.28
23 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
24 015-0038-00 015-0038-00 - Exhaust for FR Kawasaki - MZ
$92.01
25 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
26 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
27 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
28 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
