2014 MZ Magnum - Shroud Assembly

2014 MZ Magnum - Shroud Assembly

The 2014 MZ Magnum Shroud Assembly is crucial for protecting the engine and other components from dirt and debris while allowing for proper airflow and cooling. At BadBoyMowerParts.com, we offer a comprehensive selection of Bad Boy Mower Parts for the 2014 MZ Magnum Shroud Assembly, including replacement shrouds, fasteners, and cooling components. Our Bad Boy Mower Part Diagrams make it easy to identify the exact parts you need to keep your shroud assembly intact and functional. A well-maintained shroud assembly ensures that your engine remains cool and performs at its best during extended use. We also offer Bad Boy Lawn Mower Parts for other systems in your mower to keep everything running smoothly. Ordering Bad Boy Parts Online is fast and convenient, and with Free Shipping On Orders Over $100, you can have all your parts delivered directly to your door without any additional shipping costs.

Bad Boy Mower Parts Lookup

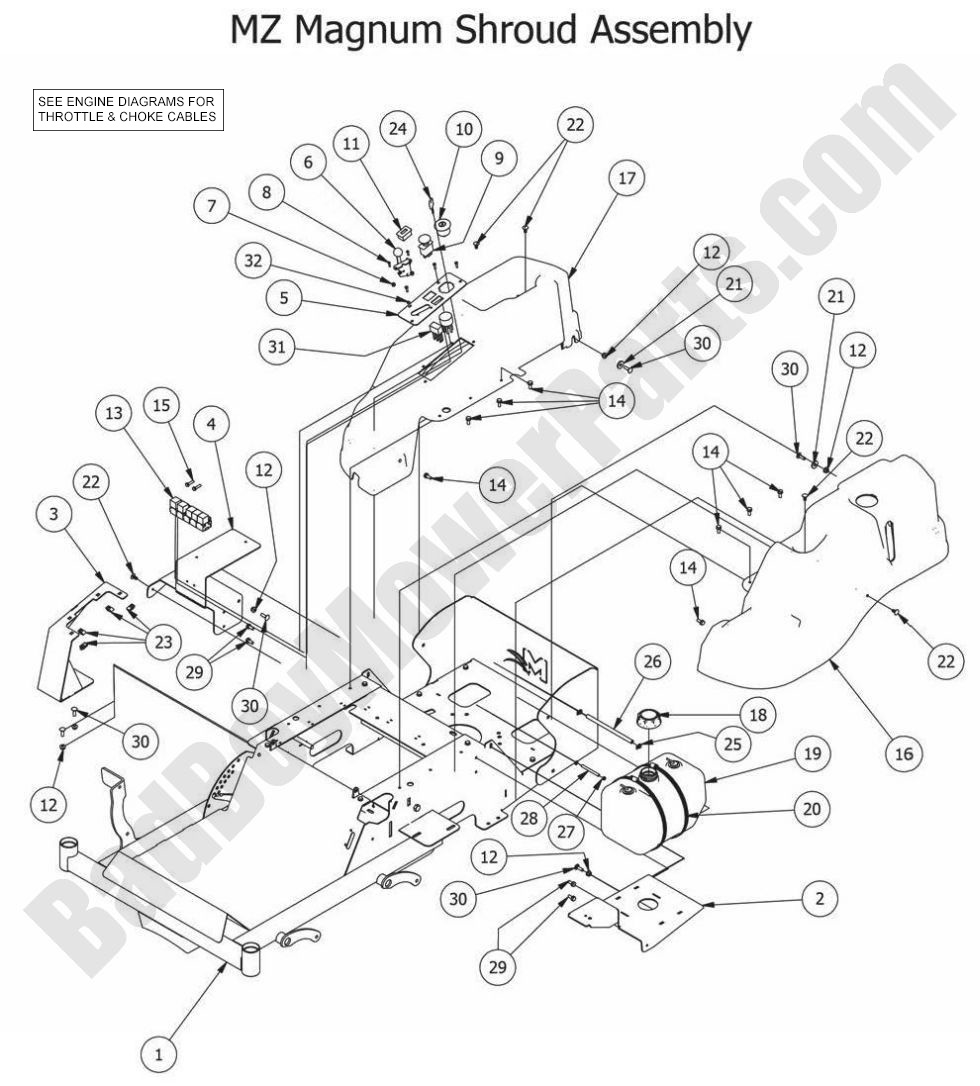

2014 MZ Magnum - Shroud Assembly
  Position Number SKU Product Title Price
1 070-5900-00 070-5900-00 - 2014 - 2016 54" MZ Magnum Frame
$1461.53

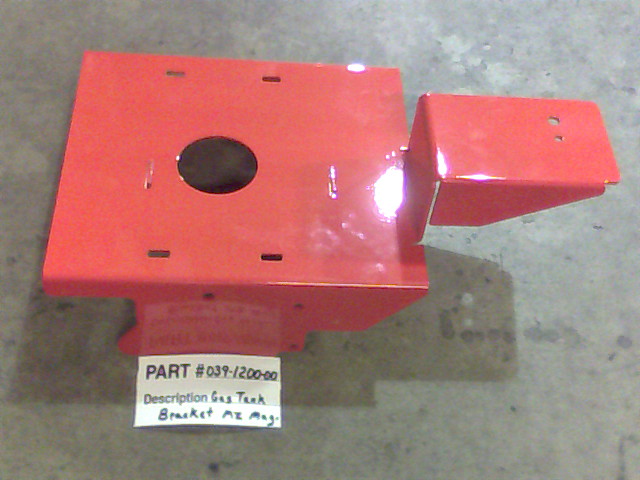

2 039-1200-00 039-1200-00 - MZ Magnum Gas Tank Bracket Assembly
$26.74

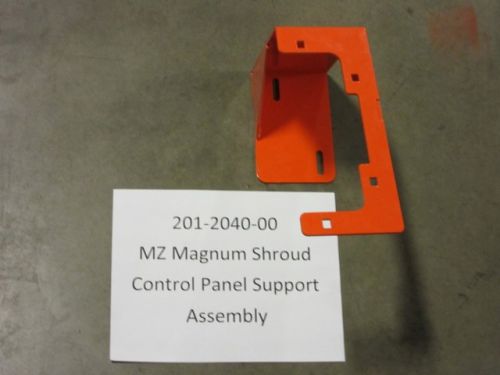

3 201-2040-00 201-2040-00 - MZ Magnum Shroud Control Panel Support Assembly
$26.74

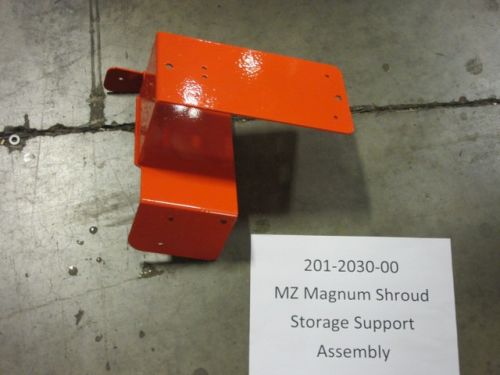

4 201-2030-00 201-2030-00 - MZ Magnum Shroud Storage Support Assembly
$37.44
5 079-0075-00 079-0075-00 - 2013-2016 MZ Magnum Control Panel
$16.04
7 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
8 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
9 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
10 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
11 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
12 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
13 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97

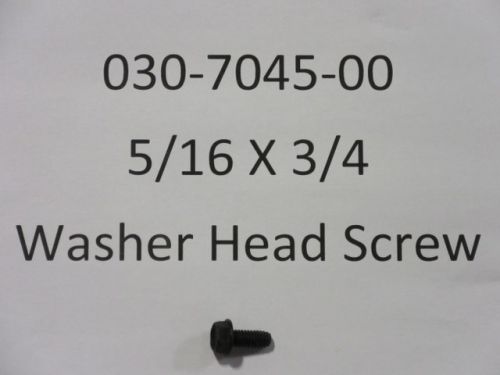

14 030-7045-00 030-7045-00 - 5/16-1 x 3/4 Hex Washer-Black
$2.99
15 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99

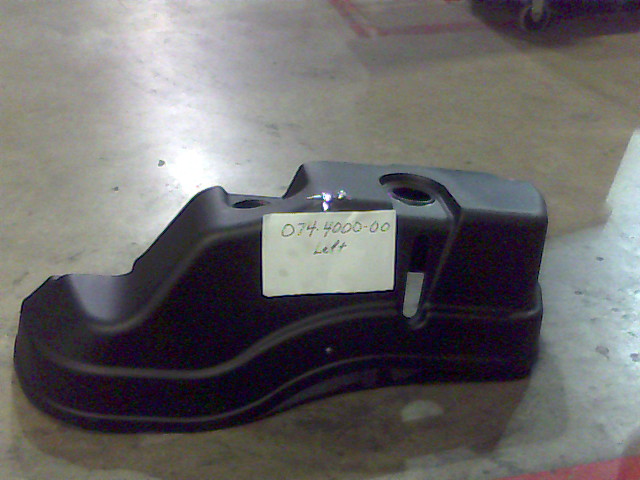

16 074-4000-00 074-4000-00 - MZ Magnum Left Fender Shroud
$162.99
17 074-4001-00 074-4001-00 - MZ Magnum Right Fender Shroud
$162.99
18 066-0050-00 066-0050-00 - Fuel Cap MZ Magnum (See Models Used On For Details)
$28.39
19 067-0050-00 067-0050-00 - 2013-2016 Magnum - Fuel Tank Assy
$155.99
20 072-0075-00 072-0075-00 - MZ Magnum Tank Clamp-63164
$14.19
21 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
22 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99

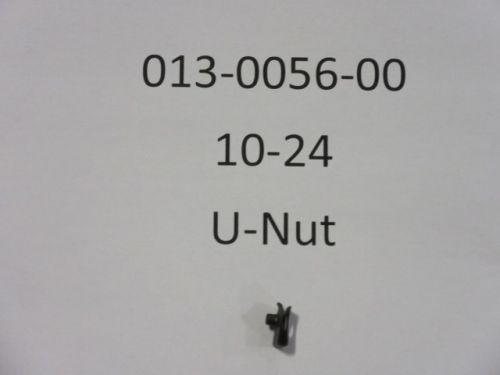

23 013-0056-00 013-0056-00 - 10-24 "U" Nut
$2.99
24 042-9000-00 042-9000-00 - Ignition Key
$4.06
25 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
26 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
27 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
28 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
29 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
30 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
30 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
31 086-0075-00 086-0075-00 - 2010-2016 Wiring Harness - MZ Models
$389.00
