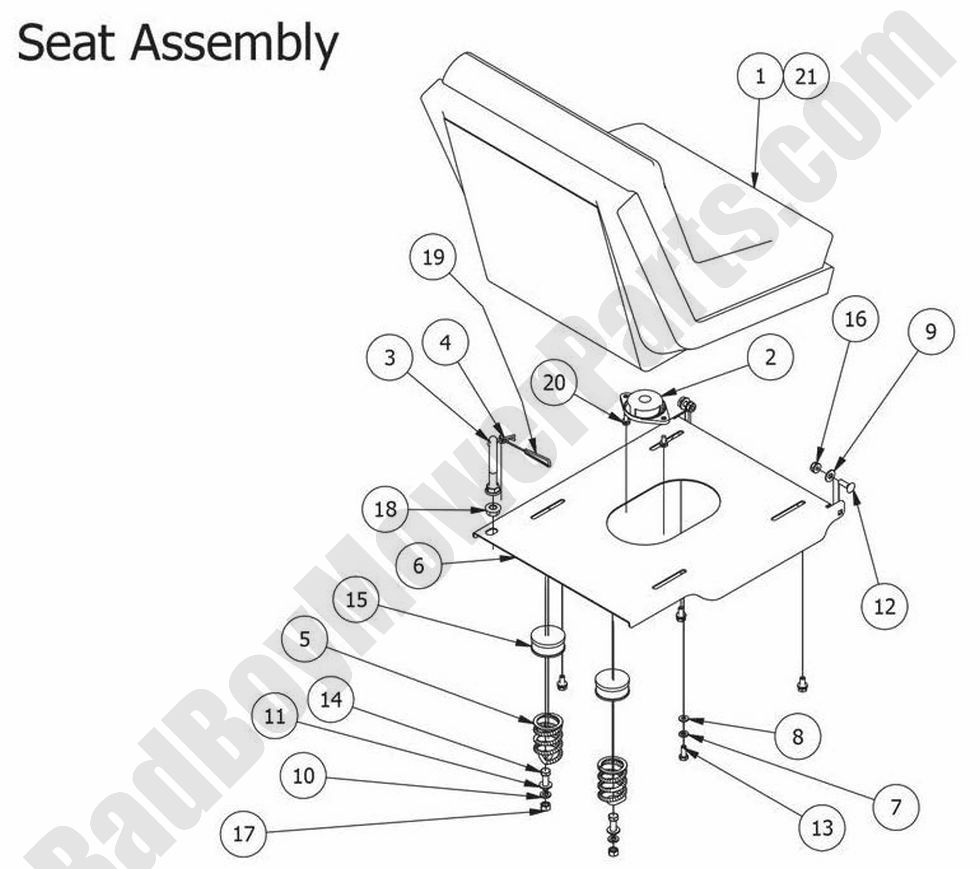

2014 MZ - Seat Assembly

2014 MZ - Seat Assembly

The 2014 MZ Seat Assembly provides comfort and support during long mowing sessions. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts designed for your 2014 MZ Seat Assembly, including seats, cushions, frames, and mounting hardware. Our Bad Boy Mower Part Diagrams help you easily locate and identify the right parts to ensure a perfect fit for your mower’s seat. A well-maintained seat assembly is crucial for comfort and safety, allowing you to work for longer periods without discomfort. In addition to seat parts, we provide a wide selection of Bad Boy Lawn Mower Parts for other mower systems. Ordering Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can save on shipping costs while keeping your mower in top shape. Enhance your mowing experience by replacing or upgrading your 2014 MZ Seat Assembly with high-quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2014 MZ - Seat Assembly
  Position Number SKU Product Title Price
1 071-9000-00 071-9000-00 - OBSOLETE use 071-1000-00 (obsolete)
use part #071-1000-00
$429.99
2 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
3 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
4 040-6060-00 040-6060-00 - Seat Latch Pin (See Models Used On For Details)
$2.99
5 034-8045-00 034-8045-00 - Seat Spring
$20.49
6 026-2010-00 026-2010-00 - MZ Seat Plate
$99.32
7 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
8 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
11 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
12 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
13 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
14 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
15 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
18 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
19 064-1000-00 064-1000-00 - Seat Pin Lanyard
$5.49
20 030-7041-00 030-7041-00 - 1/4-20x1/2 HWH Bolt Slot Type
$2.99
21 071-8095-00 071-8095-00 - MZ Seat-no Arms/Slide OBSOLETE use 071-1000-00 (obsolete)
use part #071-1000-00
$429.99
