2011 MZ - Operator Platform

2011 MZ - Operator Platform

When it comes to comfort and control on your 2011 MZ, the 2011 MZ Operator Platform plays a critical role. At BadBoyMowerParts.com, we offer a variety of components to keep your operator platform in top condition, ensuring you have a stable and comfortable ride. Whether you need replacement parts for footrests, pedals, or the entire platform assembly, our Bad Boy Mower Part diagrams help you identify exactly what you need. Browse through our vast collection of Bad Boy Lawn Mower Parts and enjoy easy online shopping through Bad Boy Parts Online. Plus, you can take advantage of Free Shipping On Orders Over $100, which makes maintaining your equipment more affordable. Don’t compromise on comfort and safety—visit us today and keep your 2011 MZ Operator Platform in optimal condition with parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

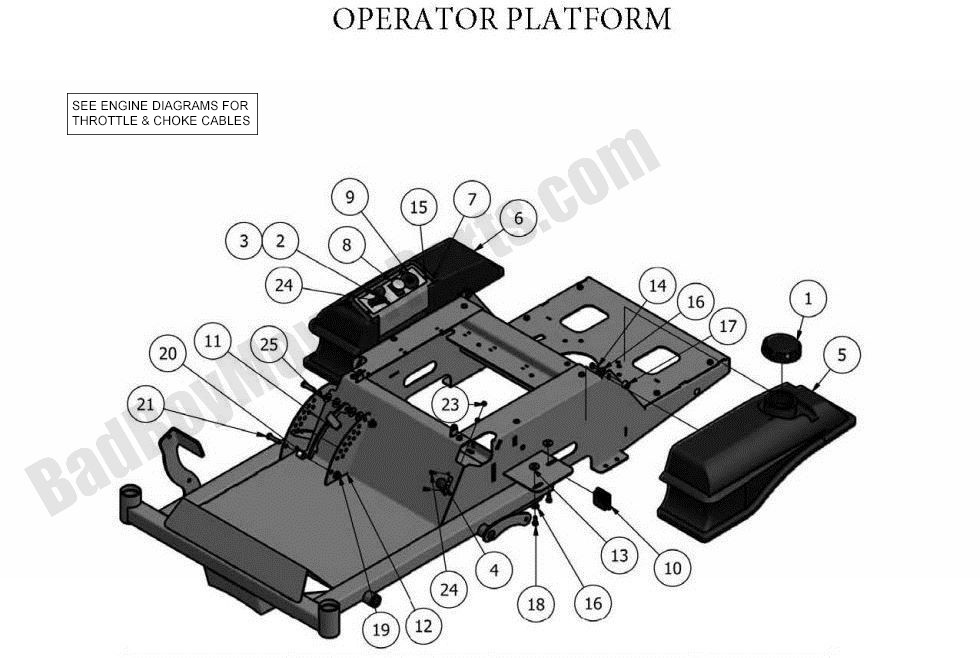

2011 MZ - Operator Platform
  Position Number SKU Product Title Price
1 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
4 064-8057-00 064-8057-00 - Brake Cable for MZ (See Models Used On For Details)
$49.96

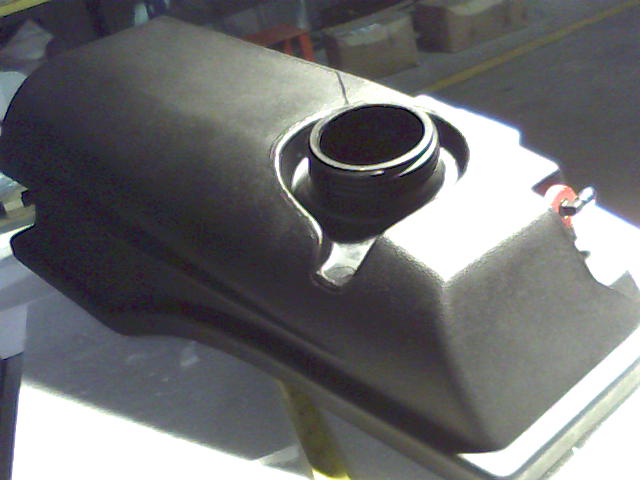

5 067-2000-00 067-2000-00 - OBSOLETE use 067-2000-50 50 MZ FUELTANK- LEFT (obsolete)
use part #067-2000-50
$285.99
6 067-2001-00 067-2001-00 - Fender Console
$209.99
7 079-0050-00 079-0050-00 - 2010-2016 MZ Control Panel
$28.39
8 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
9 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
10 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
11 031-1050-00 031-1050-00 - 2010-2016 MZ, 2013-2016 MZ Magnum Deck Level Lock Lever
$31.23
12 026-2020-00 026-2020-00 - MZ Height Indicator Plate
$14.11
13 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
14 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
15 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
16 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
17 025-2025-00 025-2025-00 - MZ Tank Spacer
$2.99
18 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
19 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
20 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
21 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
23 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
24 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
25 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
