2011 Outlaw & Outlaw Extreme - Operator Platform (Extreme)

2011 Outlaw & Outlaw Extreme - Operator Platform (Extreme)

The 2011 Outlaw & Outlaw Extreme Operator Platform (Extreme) is designed for enhanced comfort and control, making your mowing experience more efficient. If you need replacement parts for the platform, BadBoyMowerParts.com offers a wide selection of components. Our Bad Boy Mower Part diagrams allow you to easily find the parts you need, from seat frames to footrests. With Bad Boy Lawn Mower Parts, you can rest assured that each part is made with the highest standards of durability and performance. You can quickly shop for parts online through Bad Boy Parts Online, and take advantage of Free Shipping On Orders Over $100 to save on all your purchases. For the best selection of parts for your 2011 Outlaw & Outlaw Extreme Operator Platform (Extreme), visit BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

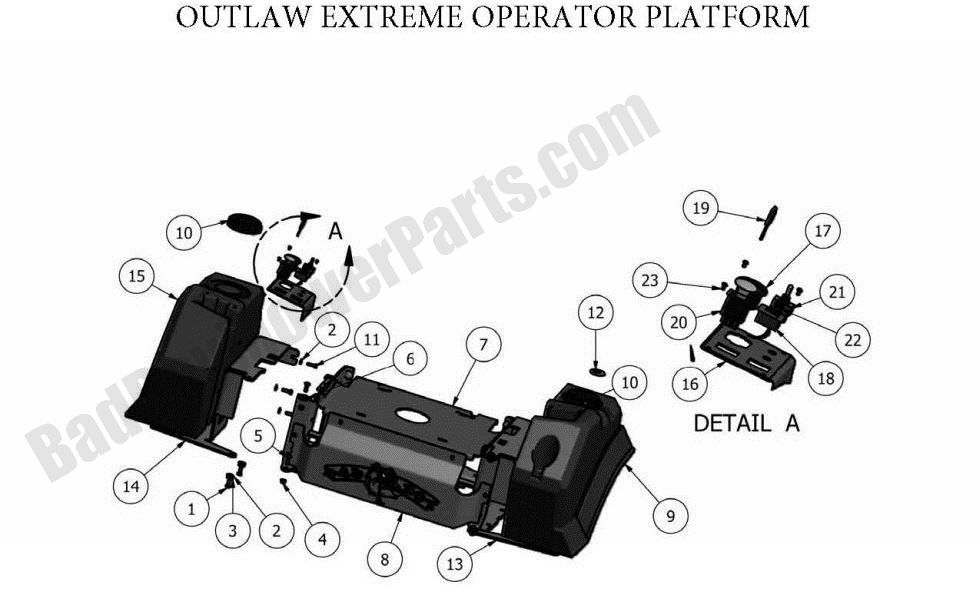

2011 Outlaw & Outlaw Extreme - Operator Platform (Extreme)
  Position Number SKU Product Title Price
1 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
2 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
3 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
7 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32

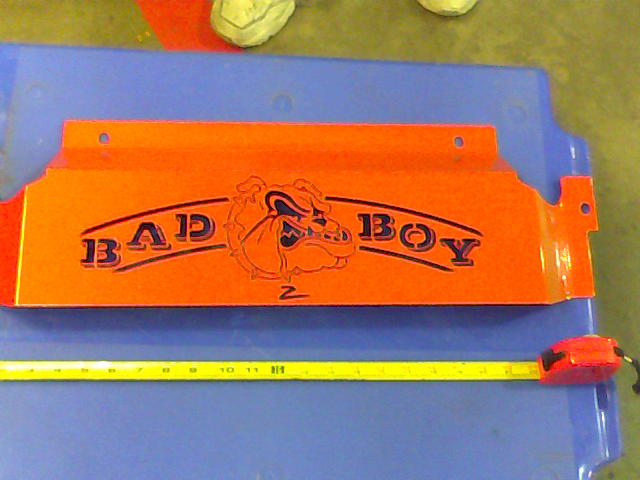

8 014-2009-00 014-2009-00 - Cooler Cover (See Models Used On For Details)
$117.94

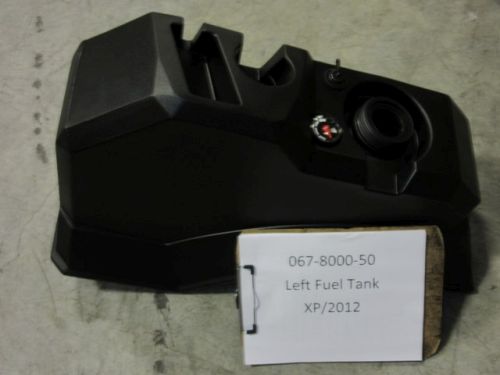

9 067-8000-50 067-8000-50 - Left Fuel Tank (2011-2014 Outlaw Extreme/XP)
$358.99
10 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05

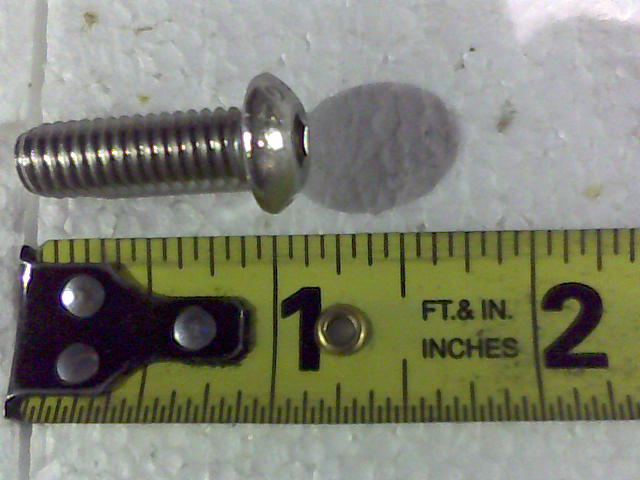

11 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
12 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
13 031-2011-00 031-2011-00 - 72 Tank Support- Right (See Models Used On For Details)
$59.91
14 031-2010-00 031-2010-00 - 72 Tank Supports- Left
$59.91

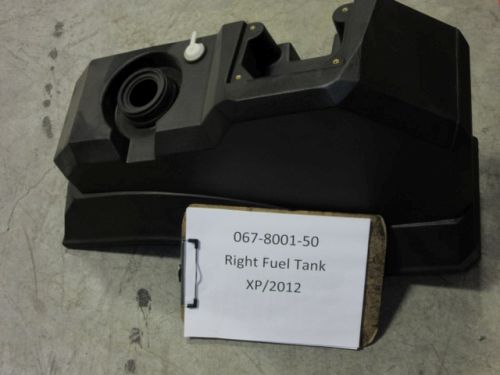

15 067-8001-50 067-8001-50 - Right Fuel Tank (See Models Used On For Details)
$329.99
16 079-3401-00 079-3401-00 - 2007-2011 Pup/Lightning, 2011 Outlaw Extreme Instrument Panel
$23.78
17 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
18 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
19 042-9000-00 042-9000-00 - Ignition Key
$4.06
20 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
21 078-8077-00 078-8077-00 - Joystick - Deck Lift
$42.79
22 089-1000-00 089-1000-00 - Oil Light
$12.63
23 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
