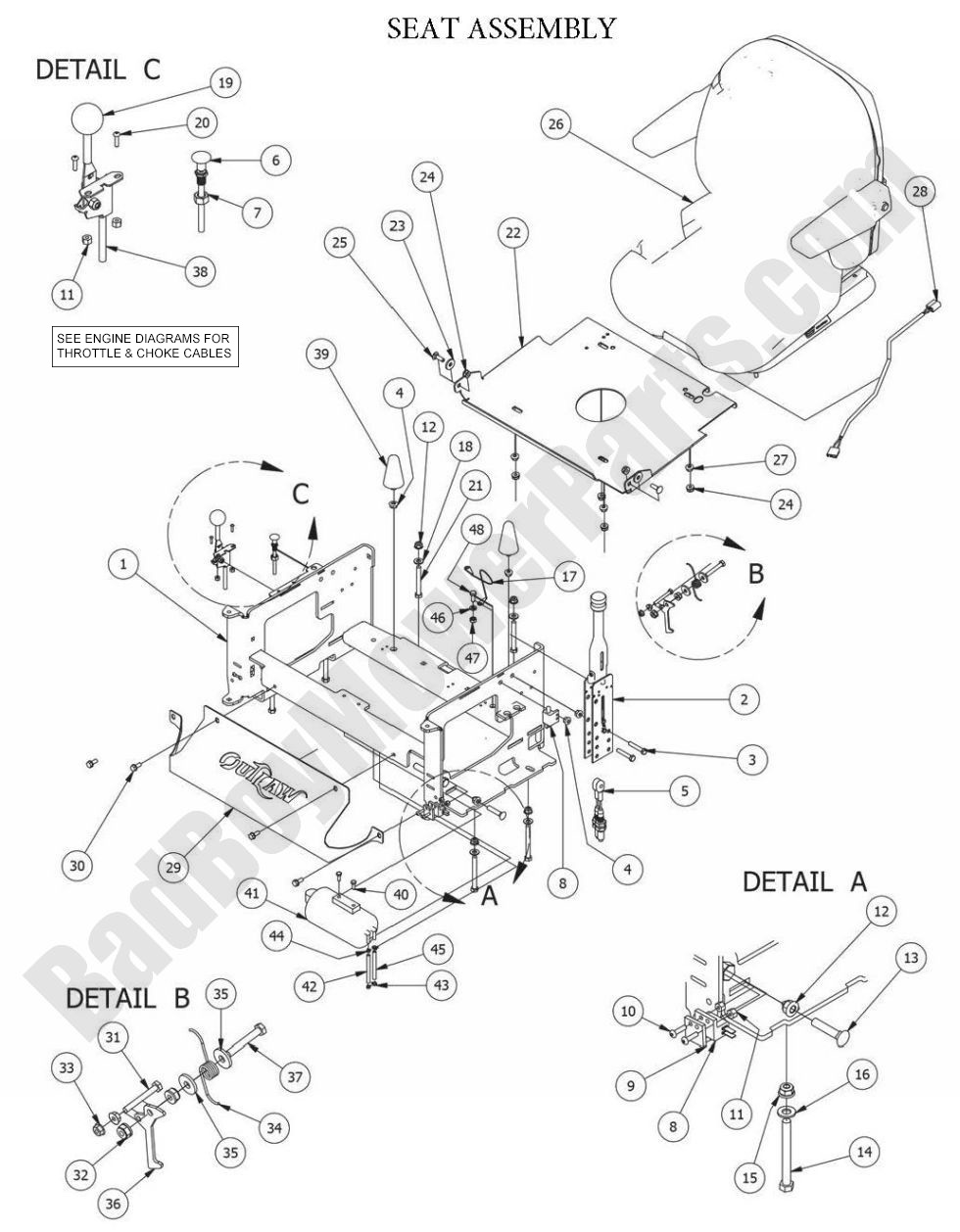

2014 Outlaw & Outlaw Extreme - Seat Assembly

2014 Outlaw & Outlaw Extreme - Seat Assembly

The 2014 Outlaw & Outlaw Extreme Seat Assembly ensures comfort and support during long hours of mowing. At BadBoyMowerParts.com, we offer a complete selection of Bad Boy Mower Parts, including seat assemblies that are designed for your 2014 Outlaw & Outlaw Extreme. Our detailed Bad Boy Mower Part Diagrams make it easy to find the exact seat assembly or replacement parts needed to keep you comfortable while working. With Bad Boy Lawn Mower Parts, you can trust that the parts you purchase will be durable and fit your mower perfectly. Shopping Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you’ll save on shipping costs while getting your seat assembly delivered right to your doorstep.

Bad Boy Mower Parts Lookup

2014 Outlaw & Outlaw Extreme - Seat Assembly
  Position Number SKU Product Title Price
1 080-5000-00 080-5000-00 - Outlaw Seat Bracket 2012 Assembly
$399.99
2 069-8054-00 069-8054-00 - Brake Handle Kit
$119.41
3 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
7 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
8 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
9 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
10 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
11 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
12 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
14 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
16 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
17 064-8081-00 064-8081-00 - Seat Cable
$15.60
19 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
20 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
21 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
22 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32
23 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
25 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
26 071-5000-00 071-5000-00 - 2010-2014 Outlaw Seat Use without ROPS (obsolete)
use part #071-5060-00
$699.99
27 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
28 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
29 014-2100-00 014-2100-00 - Outlaw Cooler Cover
$21.39
30 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
31 018-0011-00 018-0011-00 - 1/4-20 x 2 Hex Bolt
$2.99
33 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
34 034-1075-00 034-1075-00 - Torsion Spring-Seat Latch
$5.49
36 031-0200-00 031-0200-00 - Seat Latch Lever
$2.99
37 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5)
$2.99
39 034-1444-00 034-1444-00 - Rubber Cone (obsolete)
use part #034-8045-98
$29.80
40 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
41 067-0020-00 067-0020-00 - Carbon Canister
$62.40
42 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
43 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
44 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
45 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
46 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
47 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
48 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
