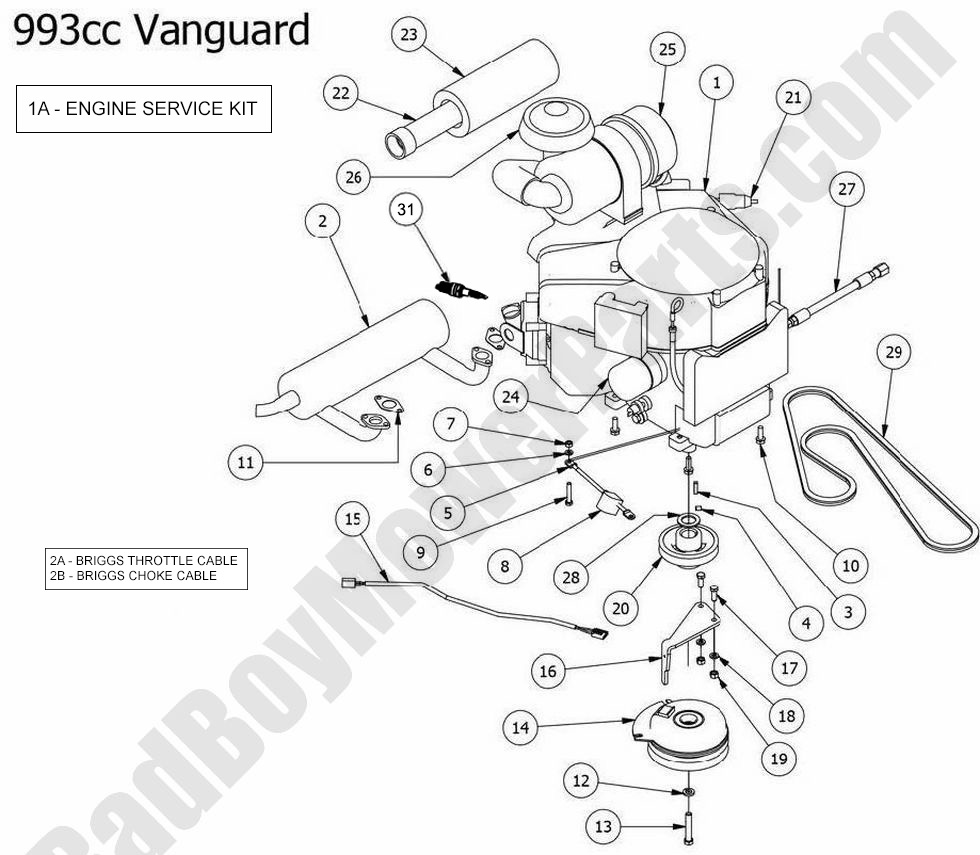

2014 Outlaw & Outlaw Extreme - Engine - Vanguard 993

2014 Outlaw & Outlaw Extreme - Engine - Vanguard 993

The 2014 Outlaw & Outlaw Extreme Engine - Vanguard 993 provides superior power and reliability, making it an ideal engine for large lawns. At BadBoyMowerParts.com, we offer a full range of Bad Boy Mower Parts designed to keep your Vanguard 993 engine in optimal condition. Our Bad Boy Mower Part Diagrams make it easy to find and order the correct parts for maintenance or repairs. Whether you need a new fuel pump, air filter, or any other engine component, we have you covered. With Bad Boy Lawn Mower Parts, you can trust that you're getting high-quality replacements that meet OEM standards. Shopping Bad Boy Parts Online ensures a quick and convenient shopping experience, and with Free Shipping On Orders Over $100, you can save on shipping costs while receiving the parts you need at your doorstep.

Bad Boy Mower Parts Lookup

2014 Outlaw & Outlaw Extreme - Engine - Vanguard 993
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1 015-3600-00 015-3600-00 - 36hp Briggs Vanguard Engine
$4379.44
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 015-0034-00 015-0034-00 - Exhaust-32/36hp Vanguard Engine (See Models Used On For Details)
$185.76
3 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
4 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
5 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
6 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
7 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
8 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
9 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
10 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
11 015-2708-00 015-2708-00 - Exhaust Gasket - 36hp Vanguard
$16.04
12 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
13 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
14 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
15 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
16 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
17 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
18 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
19 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
20 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
21 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
22 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
23 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
24 063-8018-00 063-8018-00 - Oil Filter
$21.39
25 015-2705-00 015-2705-00 - Complete Canister 30KO and pre-2010/26KA (See Models Used On For Details)
$409.99
26 063-2045-00 063-2045-00 - Rain Cap-Fits all Canisters (obsolete)
use part #088-3060-00
$53.49
27 051-5402-00 051-5402-00 - 14mm Oil Drain Hose-36hp Vanguard
$31.22
28 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
29 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
31 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
