2014 Outlaw XP - 61" Deck Assembly

2014 Outlaw XP - 61" Deck Assembly

The 2014 Outlaw XP 61" Deck Assembly offers superior performance for those looking to tackle larger lawns with ease. At BadBoyMowerParts.com, we supply an extensive range of Bad Boy Mower Parts, including this robust deck assembly. Our Bad Boy Lawn Mower Parts are designed for durability and performance, ensuring that your mower provides a clean, even cut every time. By using our Bad Boy Mower Part diagrams, you can identify the exact parts you need for your 2014 Outlaw XP 61" deck. We stock only the highest quality parts, so you can be confident that your mower will continue to perform at its best. When you shop Bad Boy Parts Online, you gain access to easy navigation and prompt service, plus with Free Shipping On Orders Over $100, you’ll save on delivery. Keep your 2014 Outlaw XP in top shape by upgrading or replacing your deck assembly today!

Bad Boy Mower Parts Lookup

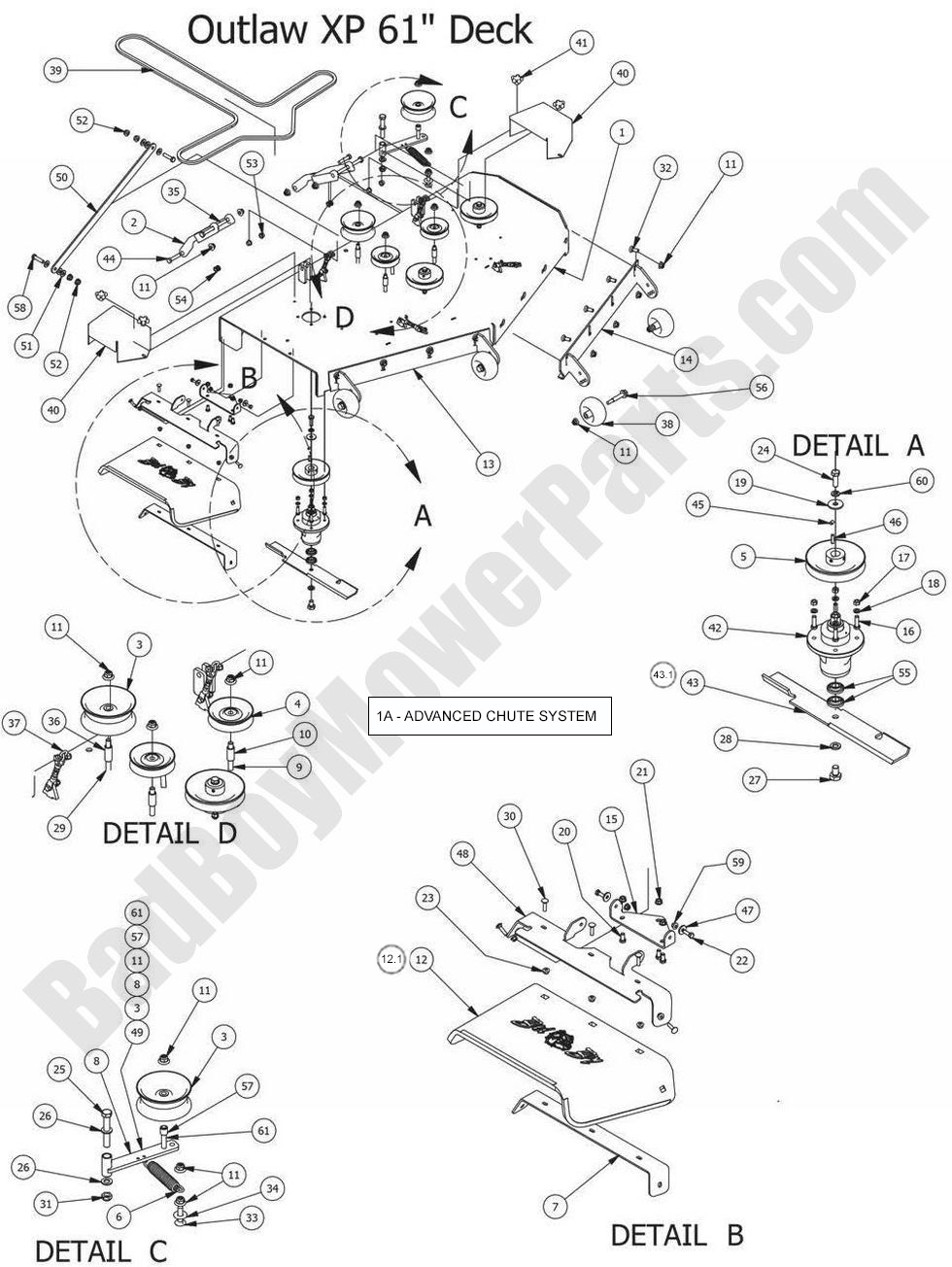

2014 Outlaw XP - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00

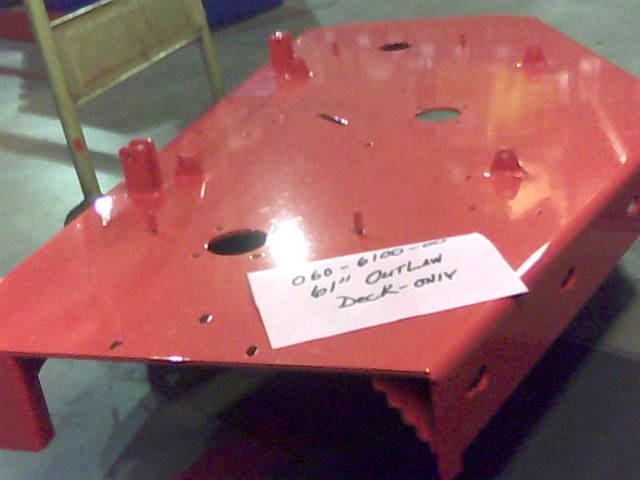

1 060-6100-00 060-6100-00 - 61" Deck Shell (See Models Used On For Details)
$1461.53
2 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
3 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
4 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
5 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
6 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
7 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
8 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
9 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
10 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
11 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
12.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
12 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91

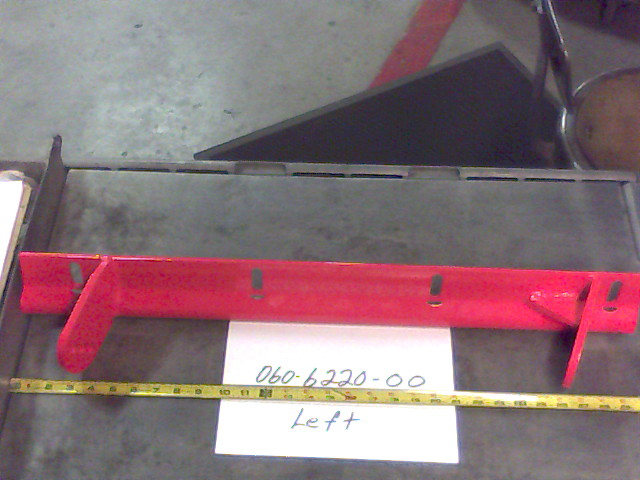

13 060-6220-00 060-6220-00 - 61 Adjustable Deck Front (Left Gate) (See Models Used On For Detail)
$103.99

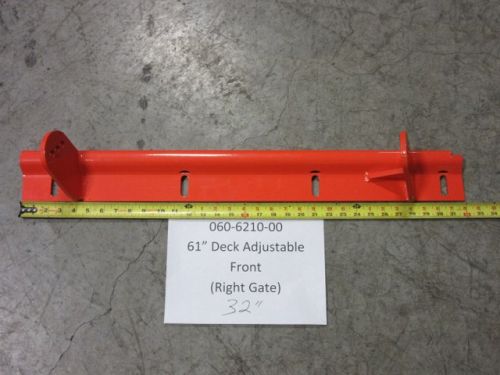

14 060-6210-00 060-6210-00 - 61 Adjustable Deck Front (Right Gate) (See Models Used On For Detail)
$103.99
15 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
16 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
17 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
18 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
19 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
20 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
21 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
22 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
24 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
25 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
28 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
29 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
30 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
31 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
32 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
33 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99

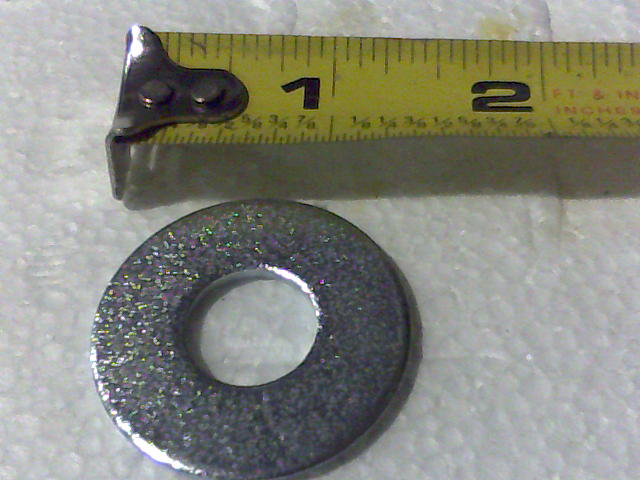

34 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
35 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
36 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
37 047-6047-98 047-6047-98 - 3-Link Adjustable Deck Hanger (obsolete)
use part #046-6048-98
$32.09
38A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
38 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
39 041-0178-00 041-0178-00 - B178 Deck Belt For 61" Decks (See Models Used On For Details)
$96.29
40 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
41 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
42 037-8000-50 037-8000-50 - Double Bearing Spindle - Aluminum Housing (obsolete)
use part #037-4000-00
$291.91
43.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
43 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
44 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
45 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
46 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
47 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
48 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
49 039-6945-98 039-6945-98 - Deck Idler Assy
$78.08

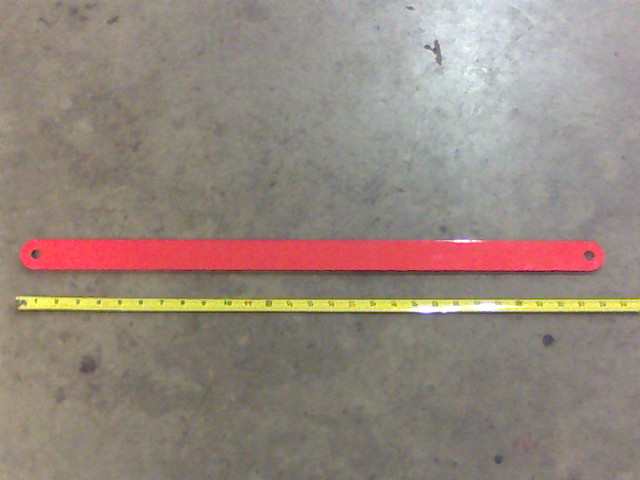

50 028-6060-00 028-6060-00 - Panhard Linkage Bar Outlaw and Diesel Decks (See Models Used On For Detail)
$12.77
51 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
52 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
53 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
54 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
55 037-8001-00 037-8001-00 - Double Bearing for Spindle (See Models Used On For Details)
$46.78
56 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
57 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
58 018-0022-00 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt
$2.99
59 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
60 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
61 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
