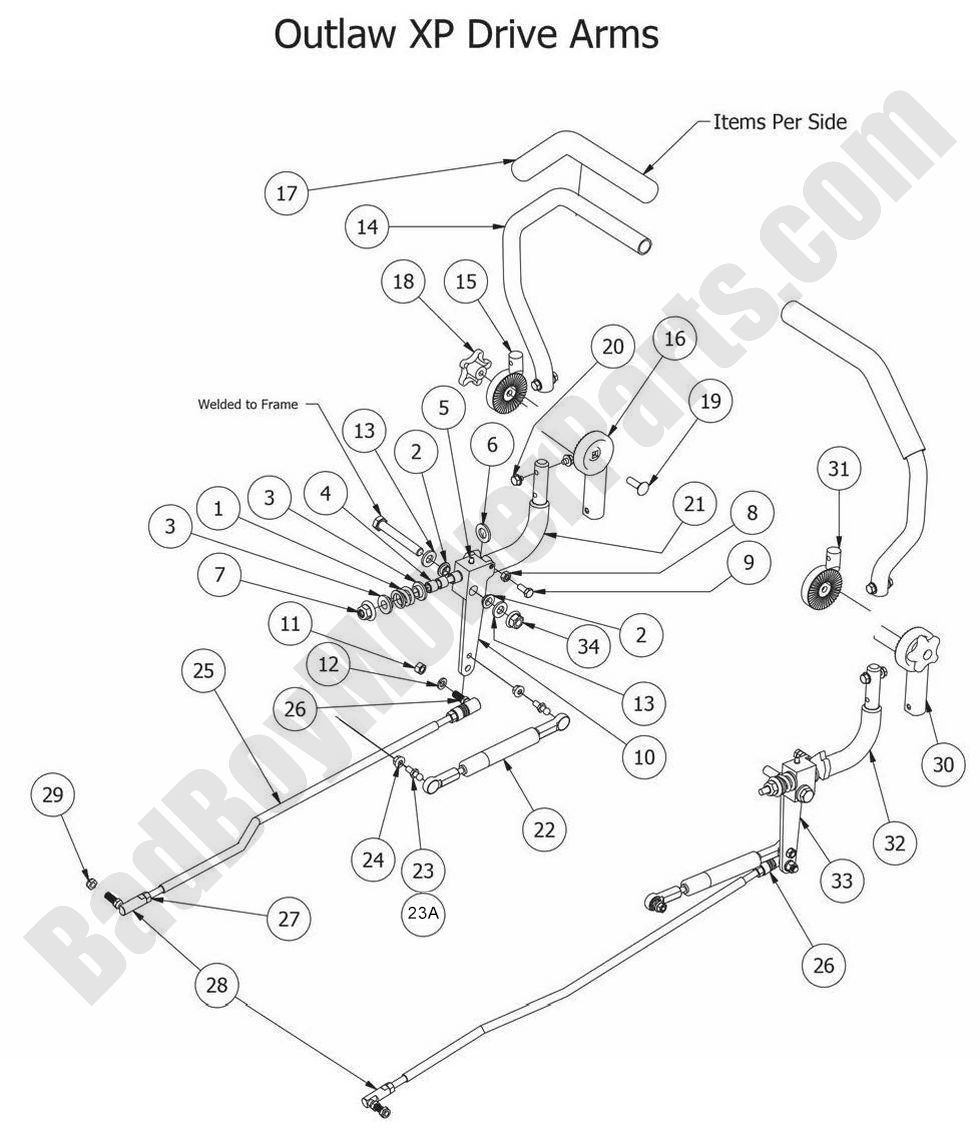

2014 Outlaw XP - Drive Arm Assembly

2014 Outlaw XP - Drive Arm Assembly

The 2014 Outlaw XP Drive Arm Assembly is a critical component that ensures your mower operates at peak performance. At BadBoyMowerParts.com, we offer an extensive range of Bad Boy Mower Parts to keep your 2014 Outlaw XP running smoothly. Our high-quality Bad Boy Lawn Mower Parts are designed to deliver reliability and durability, so you can continue to get the job done without interruptions. By referencing our Bad Boy Mower Part diagrams, you’ll be able to identify and select the right parts for your mower model. When you choose to shop Bad Boy Parts Online, you’ll benefit from a smooth and efficient shopping experience, and with Free Shipping On Orders Over $100, you’ll save on shipping. Keep your 2014 Outlaw XP in top working order by replacing your drive arm assembly with quality parts from BadBoyMowerParts.com today!

Bad Boy Mower Parts Lookup

2014 Outlaw XP - Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
9 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
10 027-8819-00 027-8819-00 - Drive Arm Lever Housing-Left (See Models Used On For Details)
$46.84
11 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
14 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
15 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
16 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
17 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
18 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
19 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
20 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
21 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
22 087-3000-00 087-3000-00 - Steering Damper (obsolete)
use part #087-0001-00
$62.40
23A 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
23 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
24 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 035-5350-00 035-5350-00 - 2012-2018 Outlaw XP Steering Push Rod
$31.22
26 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
28 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
29 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
30 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
32 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
33 027-8820-00 027-8820-00 - Drive Arm Lever Housing-Right (See Models Used On For Details)
$46.84
34 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
