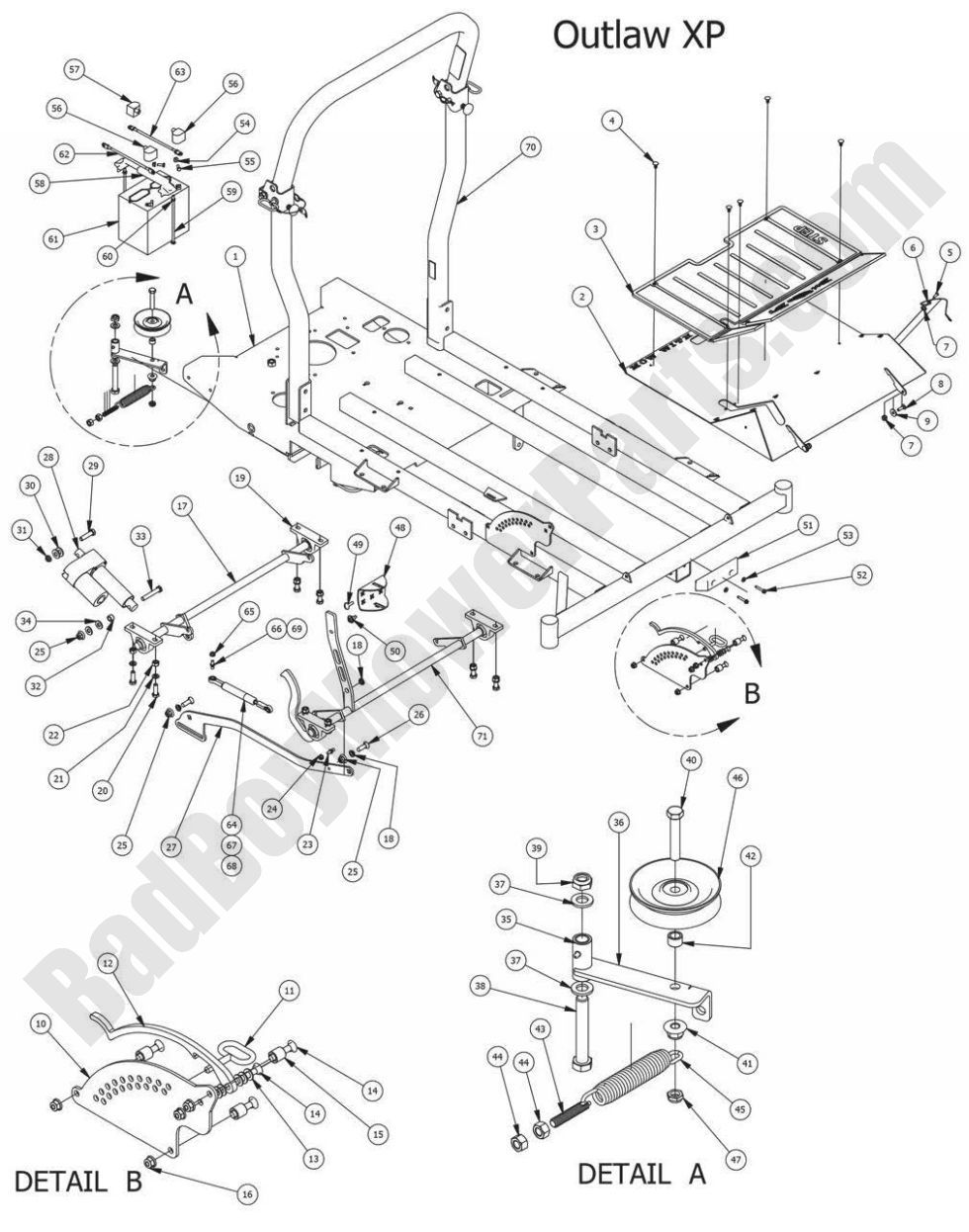

2014 Outlaw XP - Frame Assembly

2014 Outlaw XP - Frame Assembly

The 2014 Outlaw XP Frame Assembly is a vital component of your mower’s structure, designed to withstand the rigors of tough outdoor work. At BadBoyMowerParts.com, we carry an extensive selection of Bad Boy Mower Parts, including high-quality frame assemblies for the 2014 Outlaw XP. This part is crucial for maintaining the integrity and stability of your mower. Our Bad Boy Lawn Mower Parts are designed to fit perfectly and provide the durability you need for long-lasting performance. With our detailed Bad Boy Mower Part diagrams, you can easily locate the frame assembly and order the right components for your machine. Shopping Bad Boy Parts Online allows you to find top-quality parts at competitive prices, and with Free Shipping On Orders Over $100, you’ll save even more on your purchase. Whether you're replacing a damaged frame or performing regular maintenance, our parts will keep your 2014 Outlaw XP running smoothly and efficiently.

Bad Boy Mower Parts Lookup

2014 Outlaw XP - Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5360-00 070-5360-00 - 2012-2014 Outlaw XP Frame
$1299.99
2 079-3100-00 079-3100-00 - 2010-2015 Outlaw Floor Panel
$139.99
3 081-2008-00 081-2008-00 - Foot Assist Floor Mat (See Models Used On For Details)
$66.76
4 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
5 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
6 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
8 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 026-2100-00 026-2100-00 - Diesel & Outlaw Height Indicator Plate (Outer)
$12.83
11 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
12 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
13 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
14 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
15 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
16 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
17 028-6020-00 028-6020-00 - Rear Actuator Bar Assy (See Models Used On For Detail)
$106.48

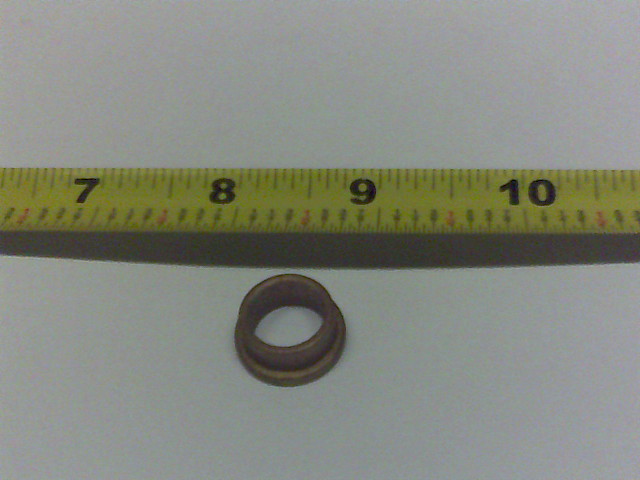

18 032-3000-00 032-3000-00 - Actuator Bar Bushing
$2.99
19 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
20 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99

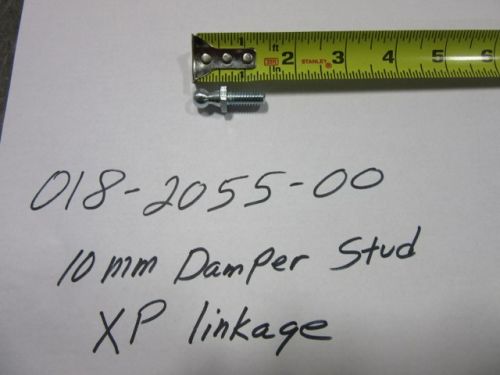

23 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
24 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
26 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
27 028-6055-00 028-6055-00 - Linkage Bar Suspension Frame (See Models Used On For Detail)
$28.39
28 035-7033-00 035-7033-00 - Actuator
$408.75

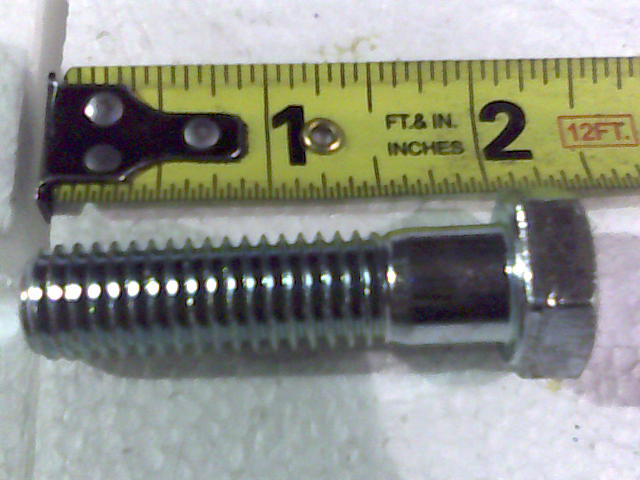

29 018-5049-00 018-5049-00 - 1/2-13 X 2 Hex Bolts Zinc
$2.99
30 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
31 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
32 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
33 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
34 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
35 039-5944-98 039-5944-98 - Pump Idler Assembly (obsolete)
use part #039-5944-01
$62.46
36 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
37 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
38 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
39 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
40 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
43 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
45 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
46 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22

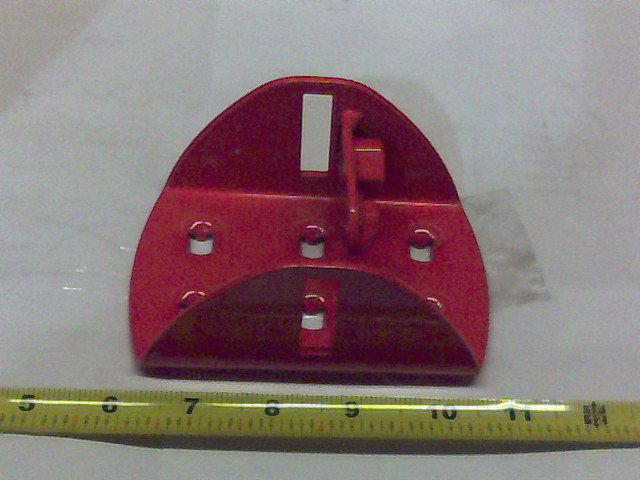

48 026-0013-00 026-0013-00 - 2010-2018 Outlaw & 2012-2018 Compact Diesel Deck Lift Pedal
$21.28
49 030-0010-00 030-0010-00 - 5/16-18 x 1 Thumb Screw Zinc (No Shoulder)
$3.29
50 040-5000-00 040-5000-00 - Pull Pin - Foot Assist w/Ring
$21.39
51 029-7038-00 029-7038-00 - 8 Bumper
$28.32
52 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
53 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
54 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
55 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
56 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
57 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
58 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
59 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
60 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
62 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
63 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
64 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
66 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
67 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
68 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
69 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
71 028-6010-00 028-6010-00 - Front Actuator Bar Assy (See Models Used On For Detail)
$142.99
