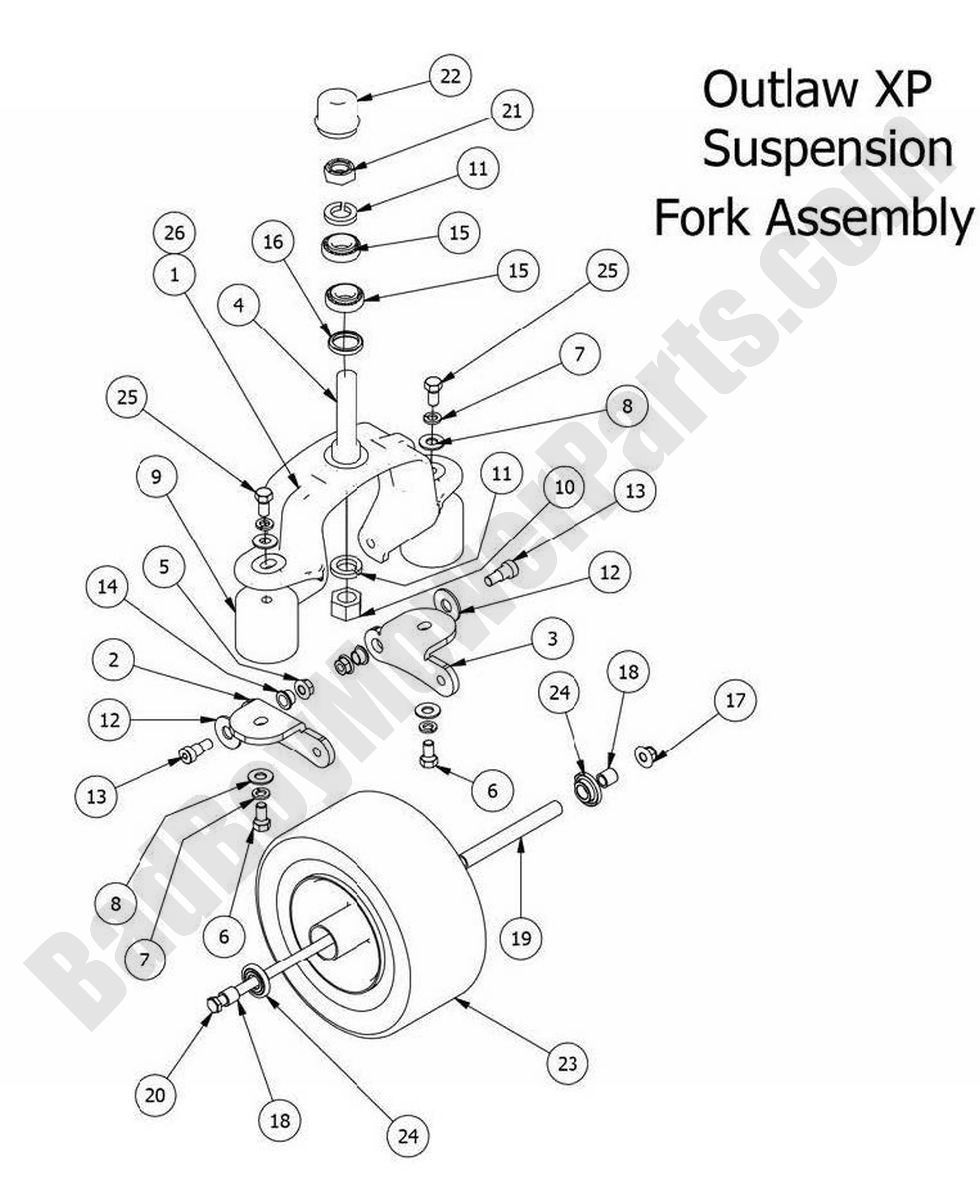

2014 Outlaw XP - Suspension Fork Assembly

2014 Outlaw XP - Suspension Fork Assembly

The 2014 Outlaw XP Suspension Fork Assembly is designed to improve the stability and comfort of your mower, especially when navigating rough terrain. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts, including suspension fork assemblies for the 2014 Outlaw XP. This assembly plays a crucial role in absorbing shock and providing a smooth ride, even over uneven ground. Our Bad Boy Lawn Mower Parts are built for toughness and reliability, ensuring that your mower performs at its best. With Bad Boy Mower Part diagrams, locating and ordering the right suspension fork assembly has never been easier. Shopping Bad Boy Parts Online allows you to access a variety of parts, all at competitive prices. Plus, with Free Shipping On Orders Over $100, you can have your suspension fork assembly delivered right to your door, saving you time and money while keeping your 2014 Outlaw XP in top condition.

Bad Boy Mower Parts Lookup

2014 Outlaw XP - Suspension Fork Assembly
  Position Number SKU Product Title Price
1 023-0020-00 023-0020-00 - 2012-2016 Outlaw XP, 2012-2020 Diesel Suspension Fork Top/Side Combo
$263.99
2 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
3 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
4 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
7 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
8 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
9 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
10 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
11 019-3000-00 019-3000-00 - 1" Lock Washer
$3.29
12 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
13 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
14 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
15A 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
15A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
15 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
16 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
19 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
20 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
22 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
23 022-3060-00 022-3060-00 - 13 x 6.50 - 6 LARGE BORE, Orange Front Assembly
$122.99
24 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
25 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
26 023-7915-98 023-7915-98 - Suspension Fork Assembly
$350.99
