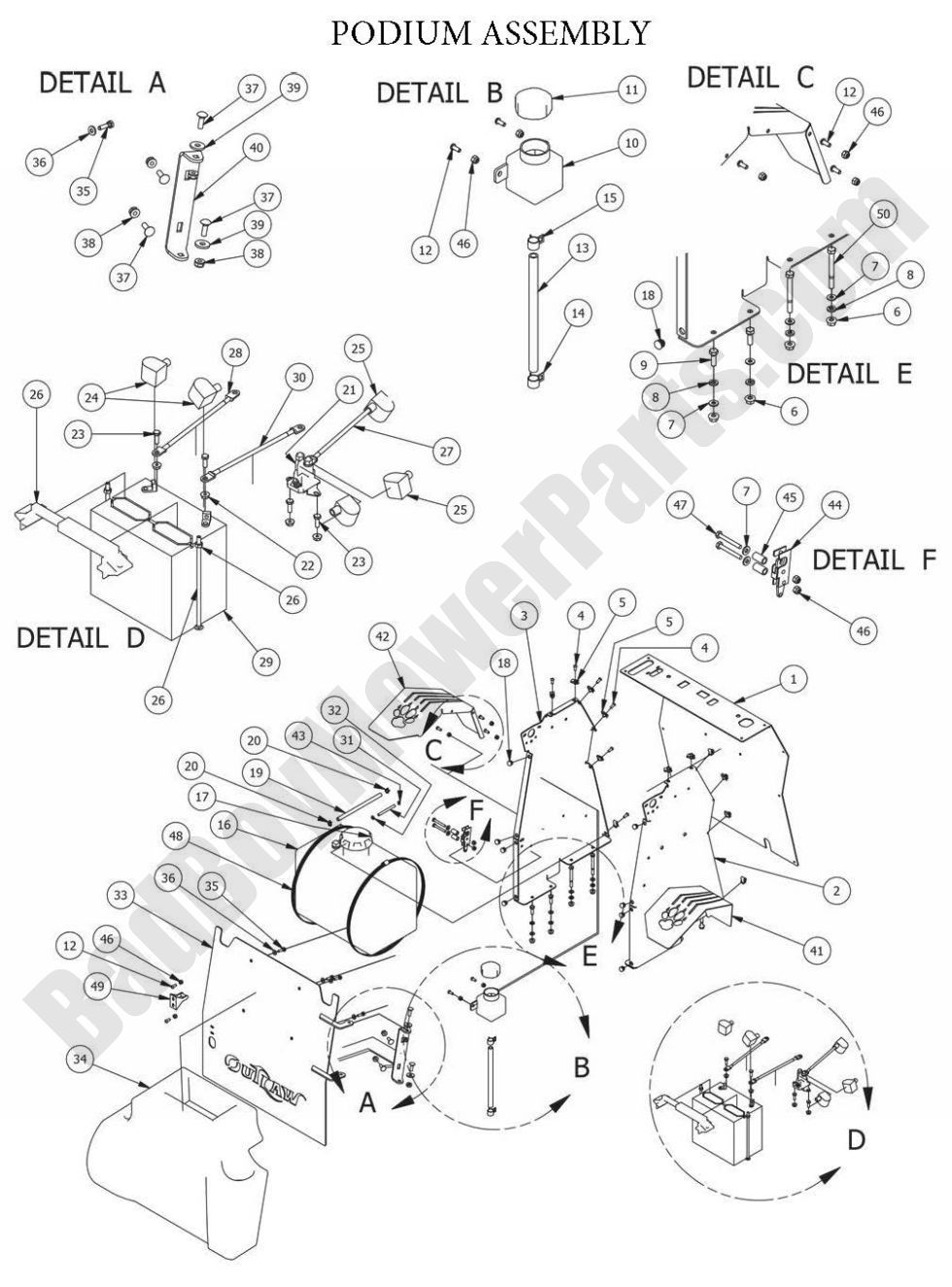

2014 Stand-On - Podium Assembly

2014 Stand-On - Podium Assembly

The 2014 Stand-On Podium Assembly is an essential part of your mower, designed to provide comfort and control while operating. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts, including the 2014 Stand-On Podium Assembly, ensuring that you can customize your mower to suit your needs. This assembly allows for improved ergonomics, providing a more comfortable riding experience for operators during long hours of use. Our Bad Boy Lawn Mower Parts are engineered for durability, ensuring that your podium assembly lasts throughout the season. With Bad Boy Mower Part diagrams, finding the exact parts you need for your 2014 Stand-On is quick and easy. When you shop Bad Boy Parts Online, you can take advantage of competitive prices and excellent customer service. Plus, with Free Shipping On Orders Over $100, you’ll save on delivery and have your podium assembly shipped directly to your door.

Bad Boy Mower Parts Lookup

2014 Stand-On - Podium Assembly
  Position Number SKU Product Title Price
1 079-4020-00 079-4020-00 - 2012-2014 Stand On Podium Front Panel
$106.99
2 079-4030-00 079-4030-00 - 2012-2014 Stand on Podium Panel Right Side
$21.39
4 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
5 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
6 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
7 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
10 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
11 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
13 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
14 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
15 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
16 067-0001-00 067-0001-00 - Fuel Tank w/Gauge for 2012-2014 Stand On
$244.99
17 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
18 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
19 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
20 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
21 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
22 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
23 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
24 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
25 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
26 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
27 086-0003-00 086-0003-00 - Alternator to Starter Cable
$7.79
28 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
30 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
31 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
32 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99

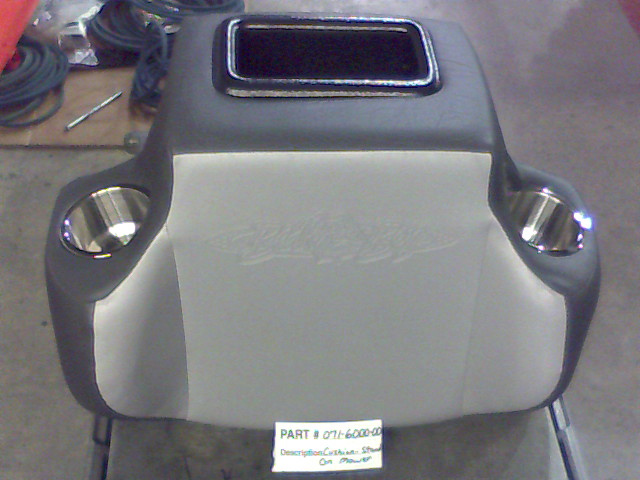

34 071-6000-00 071-6000-00 - Seat Cushion-Stand On Mower
$276.99
35 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
37 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
38 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
39 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
40 039-0070-00 039-0070-00 - Back Cover Hinge Bracket
$14.19
43 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
44 052-1000-00 052-1000-00 - Latch-Stand On
$32.09

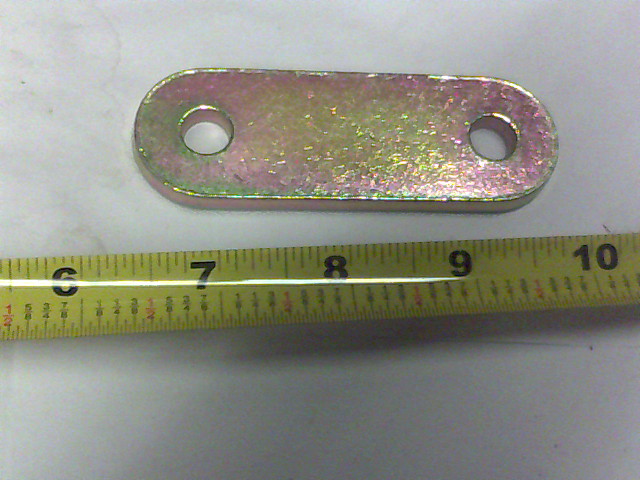

45 025-0011-00 025-0011-00 - Brake/Latch Spacer-Stand On
$3.29
46 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
47 018-0011-00 018-0011-00 - 1/4-20 x 2 Hex Bolt
$2.99
48 072-0050-00 072-0050-00 - Fuel Tank Clamp (See Models Used On For Details)
$11.34
50 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
