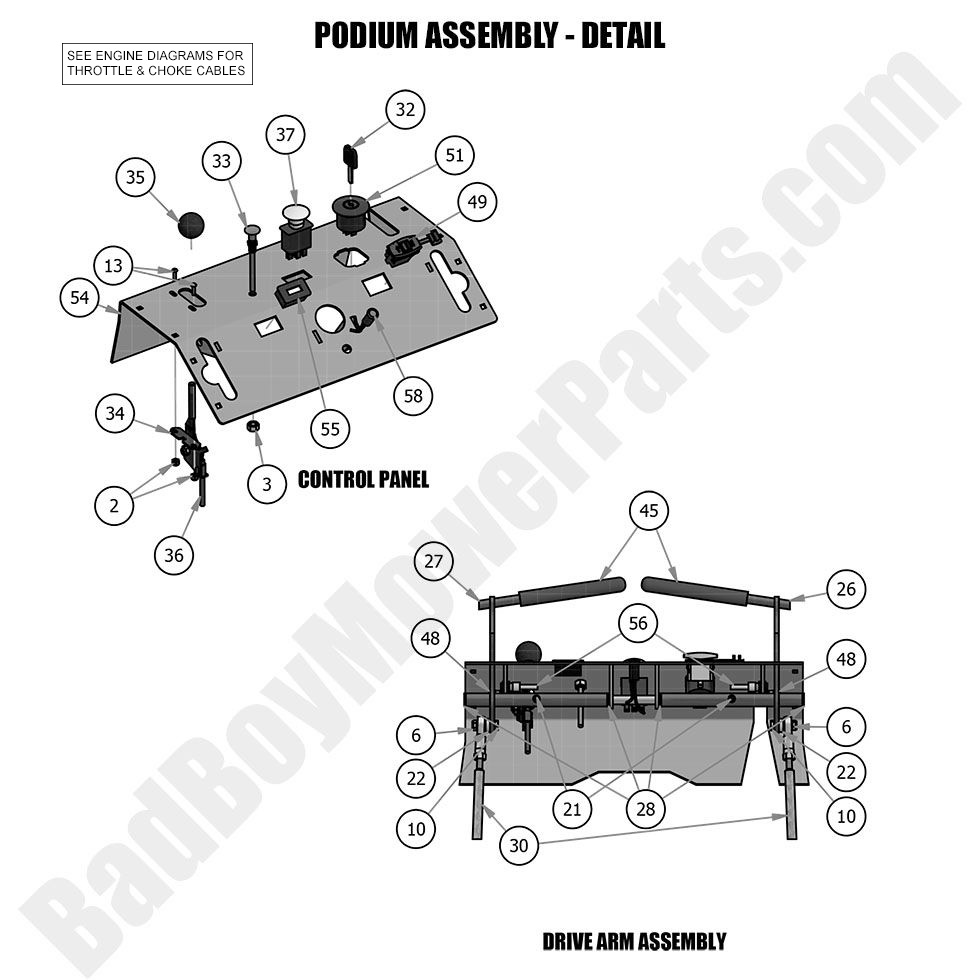

2019 Revolt - Podium Assembly - Detail

2019 Revolt - Podium Assembly - Detail

The 2019 Revolt Podium Assembly - Detail includes the intricate components of the control panel that ensure precision operation. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including control levers, switches, buttons, and indicator lights to maintain functionality. Our Bad Boy Lawn Mower Parts inventory provides factory-grade replacements designed for efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary podium assembly parts for seamless installation. Proper upkeep of these controls enhances mower responsiveness, prevents wear-related issues, and ensures smooth operation. We provide Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Revolt Podium Assembly - Detail is now more cost-effective. Order today for enhanced control panel performance and long-lasting durability.

Bad Boy Mower Parts Lookup

2019 Revolt - Podium Assembly - Detail
  Position Number SKU Product Title Price
2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
6 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
10 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
13 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
21 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
22 025-2001-00 025-2001-00 - ACS Spacer 3/4x3/8x1/4
$15.60
26 031-0028-00 031-0028-00 - RH Drive Arm Actuator 2019-2022 Revolt
$42.52
27 031-0029-00 031-0029-00 - LH Drive Arm Actuator 2019-2022 Revolt
$42.52
28 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
30 035-0006-19 035-0006-19 - Push-Rod Assembly
$46.84
32 042-9000-00 042-9000-00 - Ignition Key
$4.06
34 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
35 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
37 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
45 069-2014-00 069-2014-00 - 2019-2022 Cushioned Grip (See Models Used On For Details)
$8.01
48 077-1000-00 077-1000-00 - Magnet-Steering Arm
$14.97
49 077-2076-00 077-2076-00 - USB Port
$46.84
51 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
54 079-4112-00 079-4112-00 - 2019-2022 Revolt Podium Front Panel Weldment
$48.14
55 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
56 086-0015-00 086-0015-00 - Safety Switch Harness
$70.27
58 089-1000-00 089-1000-00 - Oil Light
$12.63
