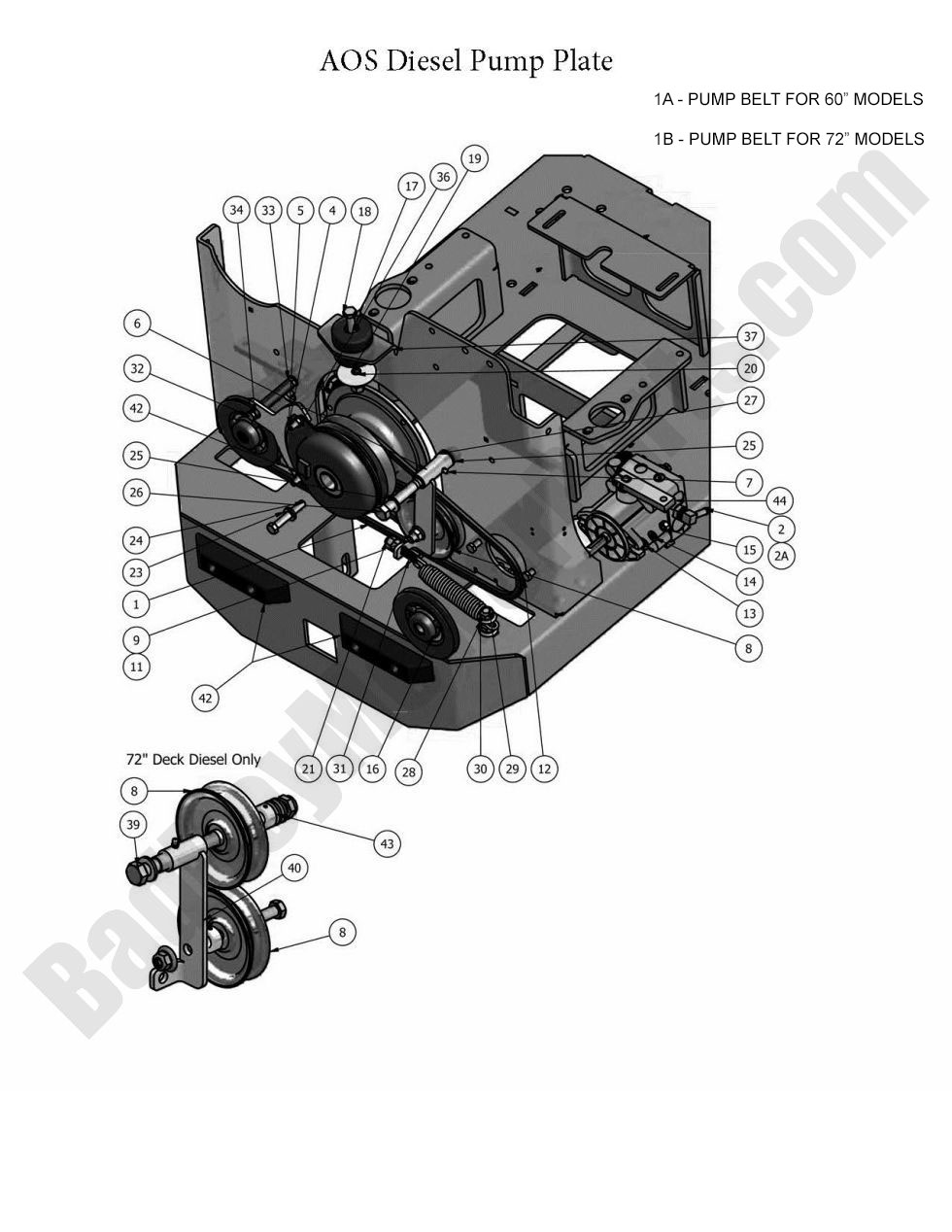

2010 AOS Diesel - Pump Plate

2010 AOS Diesel - Pump Plate

The 2010 AOS Diesel Pump Plate plays a vital role in the mower’s hydraulic system, ensuring proper pump function and fluid flow. At BadBoyMowerParts.com, we offer premium Bad Boy Mower Parts, including pump plates, hydraulic pumps, seals, hoses, and mounting hardware for durability and efficiency. Our Bad Boy Lawn Mower Parts inventory guarantees factory-quality replacements designed for long-term performance. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct pump plate components for seamless installation. Routine maintenance prevents fluid leaks, ensures optimal hydraulic pressure, and extends the lifespan of hydraulic components. We also stock Bad Boy Parts Online, making ordering replacement pump plate components simple and fast. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 AOS Diesel Pump Plate is now more cost-effective. Order today to keep your mower’s hydraulic system operating at maximum efficiency.

Bad Boy Mower Parts Lookup

2010 AOS Diesel - Pump Plate
  Position Number SKU Product Title Price
1A 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
1B 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
2A 050-5407-00 050-5407-00 - Right Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
2 050-5308-00 050-5308-00 - Left Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
4 057-5910-10 057-5910-10 - 2010-2020 Diesel PTO Engager Holder
$22.71
5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
6 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
7 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
9 018-5049-00 018-5049-00 - 1/2-13 X 2 Hex Bolts Zinc
$2.99
11 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
12 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
13 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
14 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
15 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
16 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
17 032-4000-00 032-4000-00 - Rubber for Rear Diesel Motor Mount
$76.53
18 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
19 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
23 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
24 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
25 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
26 018-5312-00 018-5312-00 - 5/8 x 4 1/2 Bolt
$2.99
27 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
28 034-5039-00 034-5039-00 - OBSOLETE USE 034-2009-00 (obsolete)
use part #034-2009-00
$18.18
29 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
30 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
31 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
32 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
33 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
34 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
36 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
37 026-8030-00 026-8030-00 - Pump Plate Diesel (See Models Used On For Details)
$109.99
39 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
40 039-5945-00 039-5945-00 - Diesel Pump Idler 72 (35HP)
$32.65
42 029-7038-00 029-7038-00 - 8 Bumper
$28.32
43 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
44 031-5923-00 031-5923-00 - Pump Arm
$30.07
45 070-5040-00 070-5040-00 - Diesel/Vanguard PTO Clutch
$399.00
