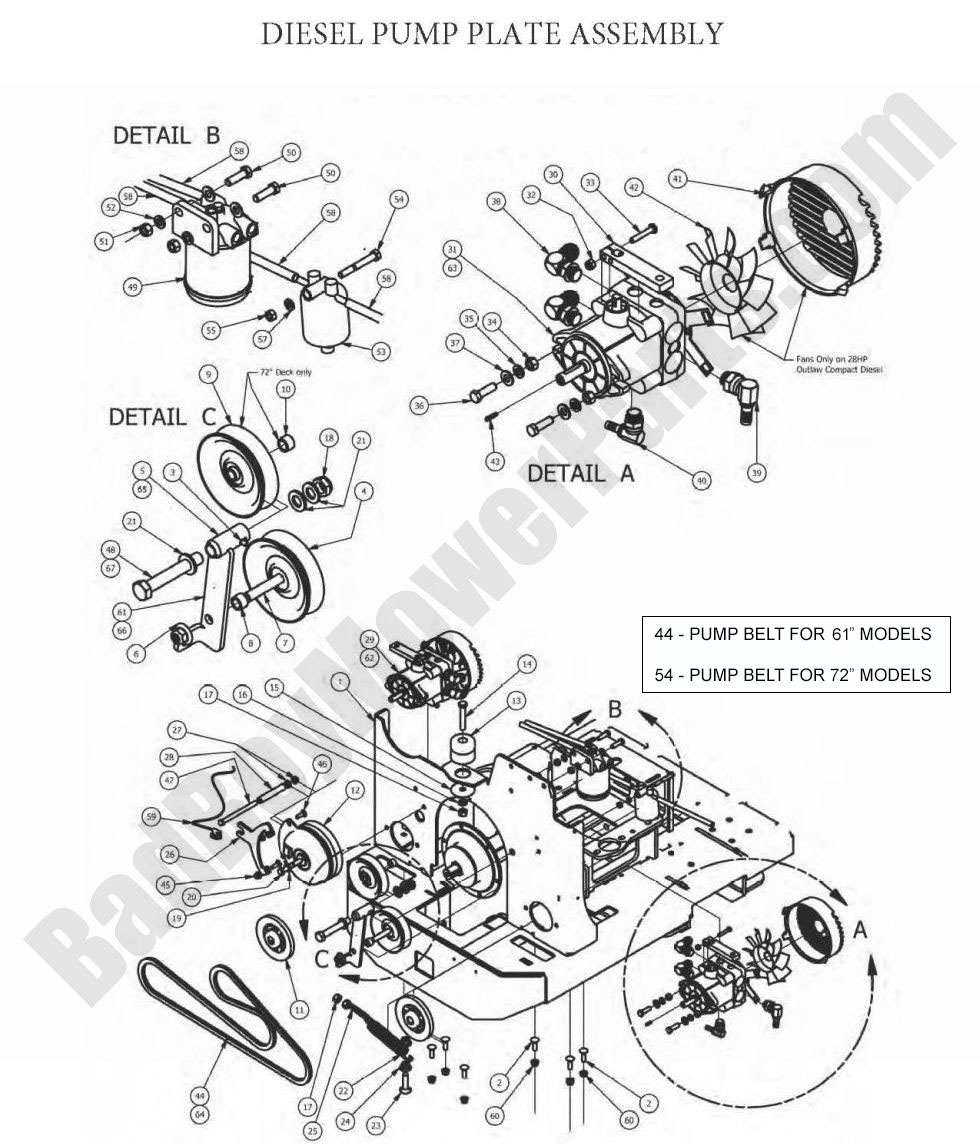

2012 Diesels - Pump Plate Assembly

2012 Diesels - Pump Plate Assembly

The Pump Plate Assembly in your 2012 Diesels Bad Boy mower is a crucial part of the hydraulic system, controlling the flow of fluid to the various components. If you're replacing or repairing this assembly, BadBoyMowerParts.com has the right parts for you. Our extensive selection of Bad Boy Mower Parts includes everything you need for the pump plate assembly and its related components. With the help of Bad Boy Mower Part diagrams, you can quickly and easily find the parts that match your 2012 Diesels mower. Shopping for Bad Boy Lawn Mower Parts online is convenient and secure, and you can place an order in minutes. Plus, we offer Free Shipping On Orders Over $100, allowing you to save even more on your repair project. Keep your mower in excellent condition by shopping Bad Boy Parts Online today and ensure that your 2012 Diesels mower’s pump plate assembly is in top working order for

Bad Boy Mower Parts Lookup

2012 Diesels - Pump Plate Assembly
  Position Number SKU Product Title Price
1 026-8030-00 026-8030-00 - Pump Plate Diesel (See Models Used On For Details)
$109.99
2 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
4 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
5 039-5950-00 039-5950-00 - Pump Idler Bracket 60 Diesel
$32.65
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
8 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
9 033-4050-00 033-4050-00 - 5" V Idler 35hp Diesel
$37.79
10 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
11 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
12 070-5040-00 070-5040-00 - Diesel/Vanguard PTO Clutch
$399.00
13 032-4000-00 032-4000-00 - Rubber for Rear Diesel Motor Mount
$76.53
15 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
16 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
17 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
18 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
19 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
20 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
21 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
22 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
23 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
24 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
25 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
26 057-5910-10 057-5910-10 - 2010-2020 Diesel PTO Engager Holder
$22.71
27 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
28 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
29 050-5500-00 050-5500-00 - PR Pump w/Fan 16cc Left Compact Diesel (See Models Used On For Details)
$599.99
30 031-5923-00 031-5923-00 - Pump Arm
$30.07
31 050-5501-00 050-5501-00 - PR Pump w/Fan and Cover Right Compact Diesel PR2HCC-GY1G
$599.99
32 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
33 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 Hex Bolt
$2.99
34 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
35 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
36 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
37 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
38 024-2060-00 024-2060-00 - 6801-LL-8-8 Fitting - Diesels
$26.53
39 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
40 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
41 014-5500-00 014-5500-00 - Fan Guard 7"
$39.03
42 015-9999-00 015-9999-00 - Hydro Fan - Fits Hydraulic Pumps
$28.88
43 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
44 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
45 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
46 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
47 018-7055-00 018-7055-00 - 3/8-16 x 5 Hex Bolt -
$2.99
48 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
49 063-2011-00 063-2011-00 - CAT Fuel Filter - Big
$29.95
50 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
53 015-0007-00 015-0007-00 - Caterpillar Fuel Bowl Kit
$150.99
54 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
55 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
57 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
59 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
60 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
61 039-5946-98 039-5946-98 - Pump Idler Bracket Assy Diesel
$56.77
62 050-5308-00 050-5308-00 - Left Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
63 050-5407-00 050-5407-00 - Right Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
65 039-5945-00 039-5945-00 - Diesel Pump Idler 72 (35HP)
$32.65
66 039-5945-98 039-5945-98 - Pump Idler 72" (35HP) Assy (See Models Used On For Details)
$56.77
67 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
