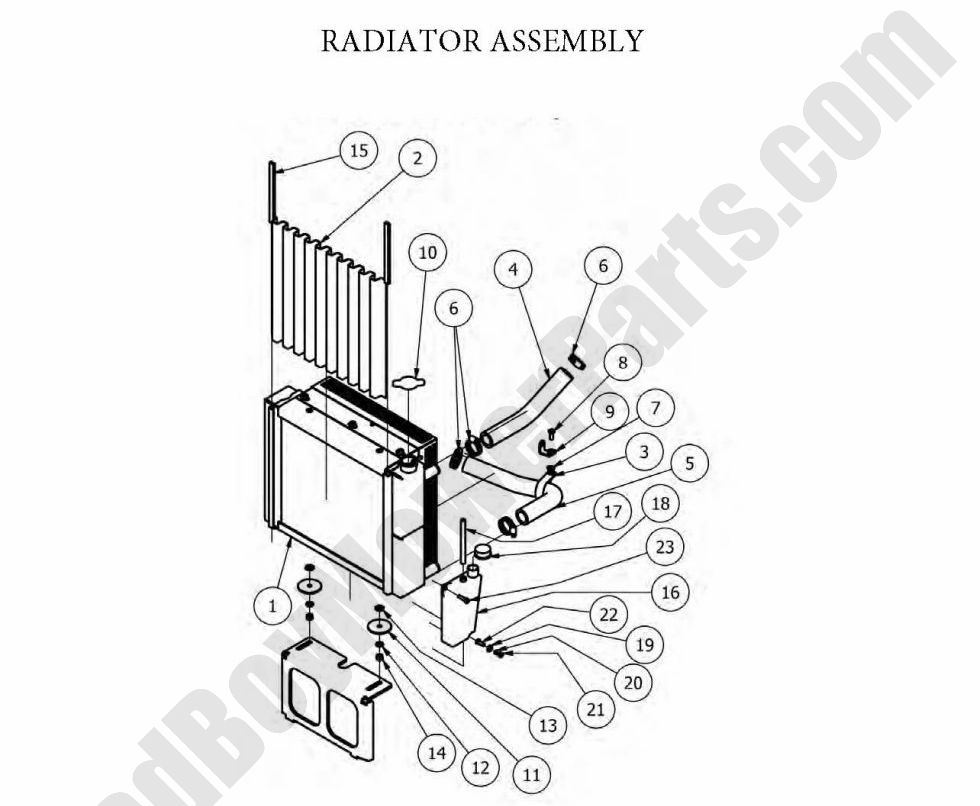

2012 Diesels - Radiator

2012 Diesels - Radiator

The Radiator is essential to maintaining the proper temperature of your 2012 Diesels Bad Boy mower’s engine, preventing it from overheating. If your radiator is damaged or worn out, BadBoyMowerParts.com offers a wide range of Bad Boy Mower Parts to get your mower back in top shape. Our website features clear Bad Boy Mower Part diagrams, making it easy to find the right radiator and cooling system components for your model. Whether you're performing a simple repair or replacing the radiator entirely, you can shop for Bad Boy Lawn Mower Parts with ease. Ordering online is simple, and with Free Shipping On Orders Over $100, you can enjoy extra savings on your purchase. Get the right parts for your 2012 Diesels mower to ensure that it runs cool and efficiently, maintaining peak performance throughout the year. Shop Bad Boy Parts Online today for all your radiator and cooling system needs.

Bad Boy Mower Parts Lookup

2012 Diesels - Radiator
  Position Number SKU Product Title Price
1 061-5000-00 061-5000-00 - Radiator - Diesel Models (See Models Used On For Details)
$999.99
2 094-5088-00 094-5088-00 - Radiator Screen Diesel
$129.99
3 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
4 051-3000-00 051-3000-00 - 2010-2020 Top Radiator Hose - Diesel
$22.03
5 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
6 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
9 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
10 015-0104-00 015-0104-00 - CAT Diesel Radiator Cap
$31.22
11 019-5050-00 019-5050-00 - 3/8 X 2-1/4 OD Fibre Washer
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 084-4015-00 084-4015-00 - Rubber Trim
$10.99
16 015-0111-00 015-0111-00 - Overflow Reservoir-27 Kaw
$74.89
17 051-8069-00 051-8069-00 - 5/16 Clear Hose (Priced Per Foot)
$2.99
18 066-8075-00 066-8075-00 - Reservoir Tank Cap-Overflow Tank
$6.48
19 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
20 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
21 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
22 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
23 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
