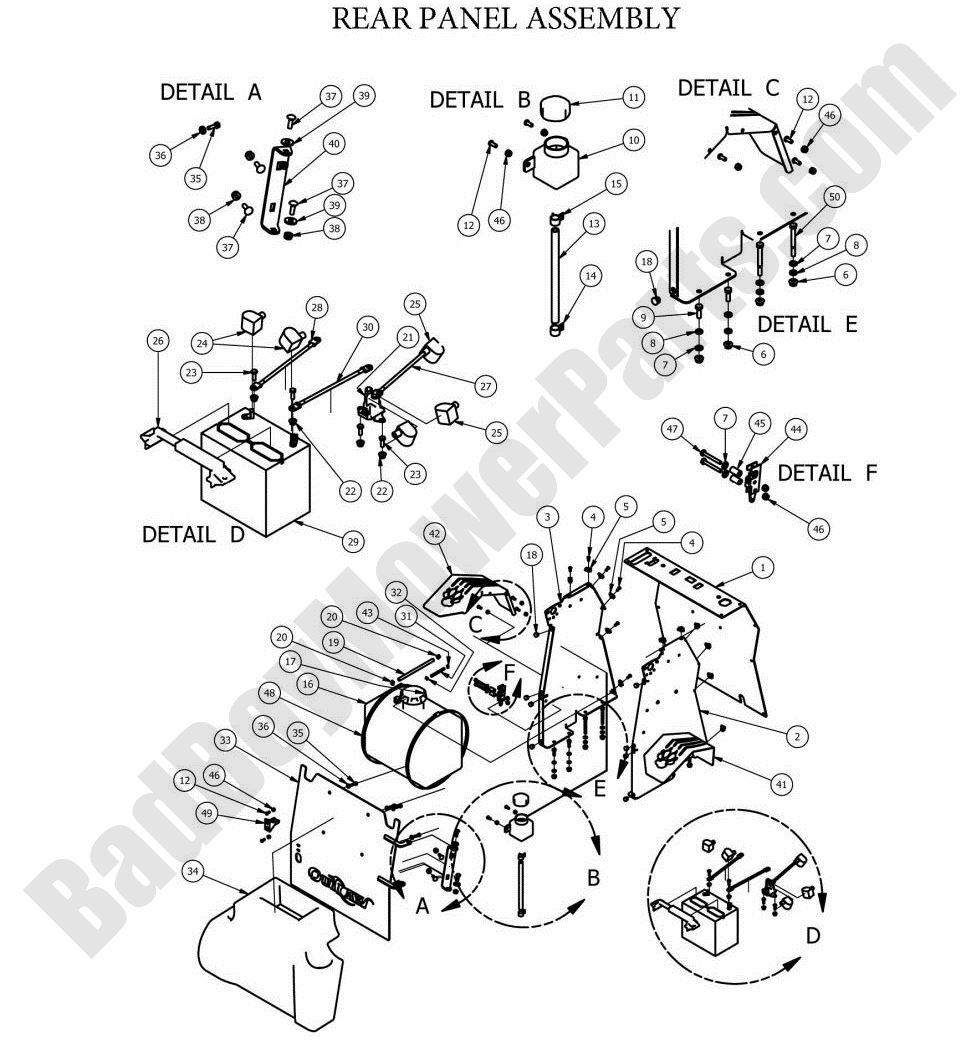

2012 Stand-On - Rear Panel Assembly

2012 Stand-On - Rear Panel Assembly

The Rear Panel Assembly on your 2012 Stand-On mower helps protect internal components while also contributing to the overall structure and appearance of the mower. If the rear panel becomes damaged or worn, it’s essential to replace it to maintain your mower’s integrity. BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts, including rear panels and related components, designed to fit the 2012 Stand-On mower. Our Bad Boy Lawn Mower Parts are high-quality, ensuring your mower remains durable and reliable for years to come. With our Bad Boy Mower Part diagrams, you can quickly identify the parts you need and place your order with ease. Shopping Bad Boy Parts Online is convenient, and our fast shipping ensures you receive your parts quickly. Enjoy Free Shipping On Orders Over $100 to save on delivery costs. Visit BadBoyMowerParts.com for all your rear panel assembly replacement needs.

Bad Boy Mower Parts Lookup

2012 Stand-On - Rear Panel Assembly
  Position Number SKU Product Title Price
1 079-4020-00 079-4020-00 - 2012-2014 Stand On Podium Front Panel
$106.99
2 079-4030-00 079-4030-00 - 2012-2014 Stand on Podium Panel Right Side
$21.39
4 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
5 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
6 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
7 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
10 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
11 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
13 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
14 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
15 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
16 067-0001-00 067-0001-00 - Fuel Tank w/Gauge for 2012-2014 Stand On
$244.99
17 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
18 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
19 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
20 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
21 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
22 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
23 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
24 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
25 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
26 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
27 086-0003-00 086-0003-00 - Alternator to Starter Cable
$7.79
28 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
30 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
31 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
32 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
34 071-6000-00 071-6000-00 - Seat Cushion-Stand On Mower
$276.99
35 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
37 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
38 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
39 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
40 039-0070-00 039-0070-00 - Back Cover Hinge Bracket
$14.19
43 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
44 052-1000-00 052-1000-00 - Latch-Stand On
$32.09
45 025-0011-00 025-0011-00 - Brake/Latch Spacer-Stand On
$3.29
46 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
47 018-0011-00 018-0011-00 - 1/4-20 x 2 Hex Bolt
$2.99
48 072-0050-00 072-0050-00 - Fuel Tank Clamp (See Models Used On For Details)
$11.34
50 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
