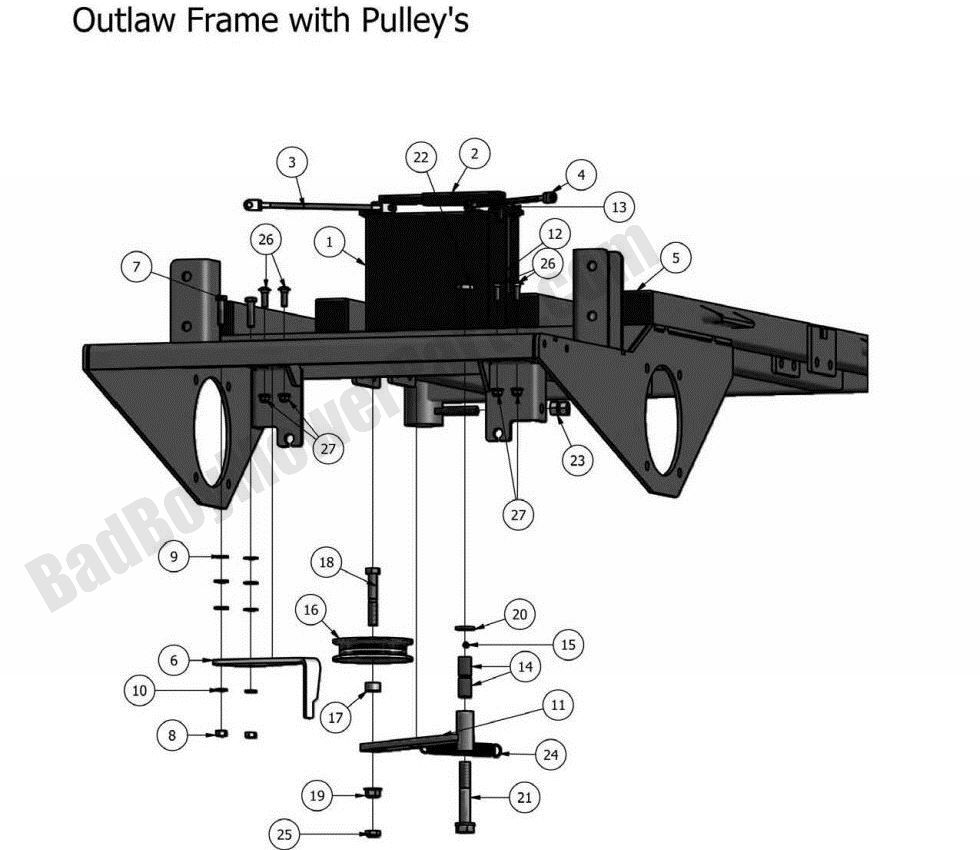

2011 Outlaw & Outlaw Extreme - Rear Pulley Assembly

2011 Outlaw & Outlaw Extreme - Rear Pulley Assembly

The 2011 Outlaw & Outlaw Extreme Rear Pulley Assembly is vital to the smooth operation of your mower’s transmission system. Over time, pulleys may wear down and require replacement, and BadBoyMowerParts.com has the right parts for the job. Our Bad Boy Mower Part diagrams will guide you to the correct pulley and components for your mower. With Bad Boy Lawn Mower Parts, you can expect high-quality replacements that keep your mower running smoothly. Shopping for parts is easy with Bad Boy Parts Online, and with Free Shipping On Orders Over $100, you can save on every order. For all your 2011 Outlaw & Outlaw Extreme Rear Pulley Assembly needs, trust BadBoyMowerParts.com for fast, reliable service and parts.

Bad Boy Mower Parts Lookup

2011 Outlaw & Outlaw Extreme - Rear Pulley Assembly
  Position Number SKU Product Title Price
2 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
3 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
4 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
5 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
6 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
7 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
8 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
9 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
10 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
12 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
13 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
14 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
15 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
16 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
17 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
18 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
20 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
21 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
22 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
23 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
24 034-5039-00 034-5039-00 - OBSOLETE USE 034-2009-00 (obsolete)
use part #034-2009-00
$18.18
25 013-6052-00 013-6052-00 - 1/2-20 Nylon Insert Jam Locknut Zinc
$2.99
26 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
27 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
