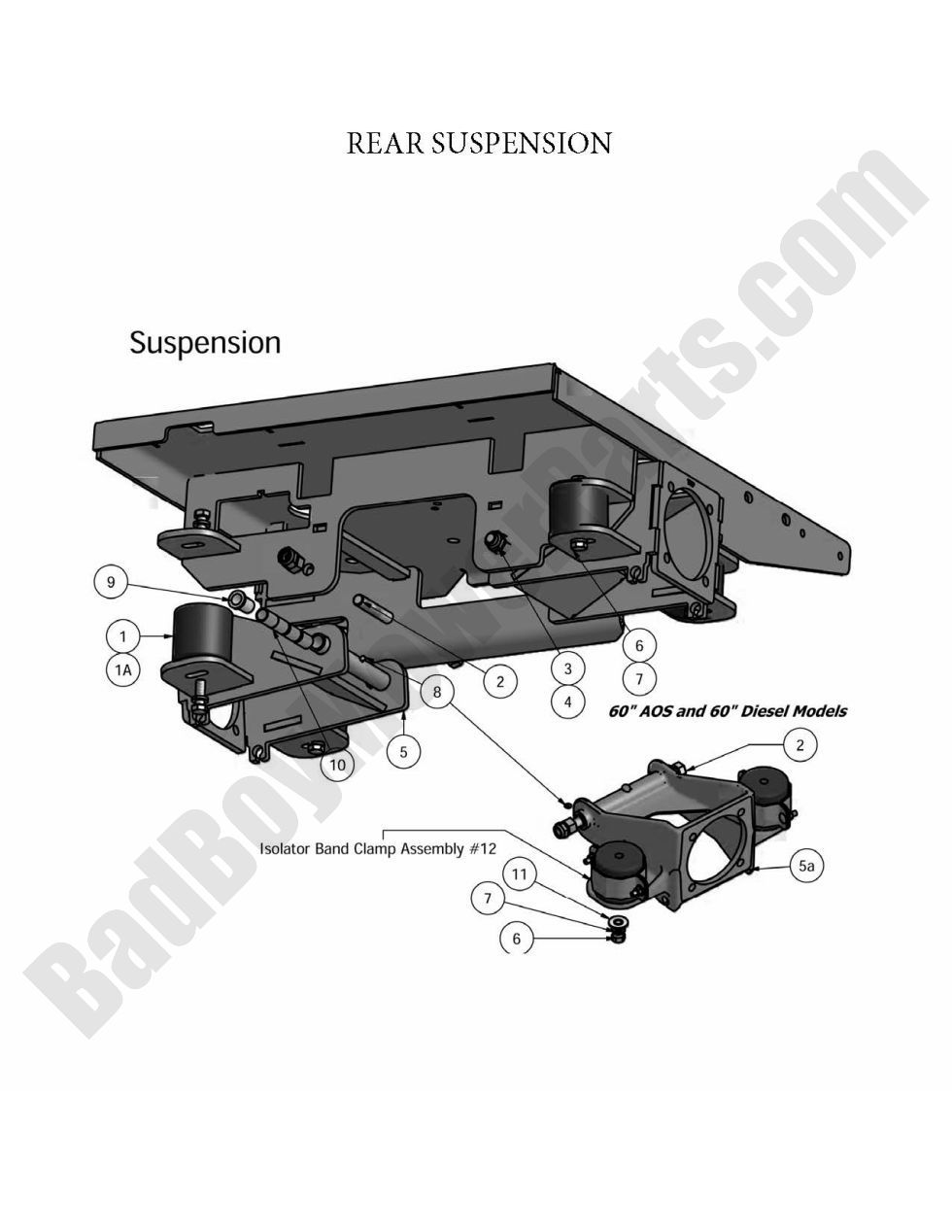

2010 Compact Diesel - Rear Suspension

2010 Compact Diesel - Rear Suspension

The 2010 Compact Diesel Rear Suspension is crucial for providing a smooth ride, reducing vibration, and ensuring stability on uneven terrain. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including suspension arms, shock absorbers, bushings, and mounting brackets for long-term durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed to withstand rigorous use. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct rear suspension components for seamless installation. Routine maintenance prevents excessive wear, enhances operator comfort, and extends the mower’s lifespan. We also stock Bad Boy Parts Online, making it easy to order necessary suspension parts when needed. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 Compact Diesel Rear Suspension is now more budget-friendly. Order today to ensure superior ride comfort, better control, and long-lasting performance for your mower.

Bad Boy Mower Parts Lookup

2010 Compact Diesel - Rear Suspension
  Position Number SKU Product Title Price
1A 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
1 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
2 018-2051-00 018-2051-00 - 5/8 x 10 Bolt Grade 8
$15.61
3 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
4 013-5020-00 013-5020-00 - 5/8-11 Hex Nuts Zinc
$3.51
5A 070-8000-00 070-8000-00 - Suspension Kit Wheel Motor (See Models Used On For Details)
$291.91
5 070-8001-00 070-8001-00 - 72 Suspension Kit Wheel Motor
$265.37
6 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
7 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
8 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
9 032-5051-00 032-5051-00 - Bronze Bushing - SF2024-24 Wheel Motor Cage
$4.37
10 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
11 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
