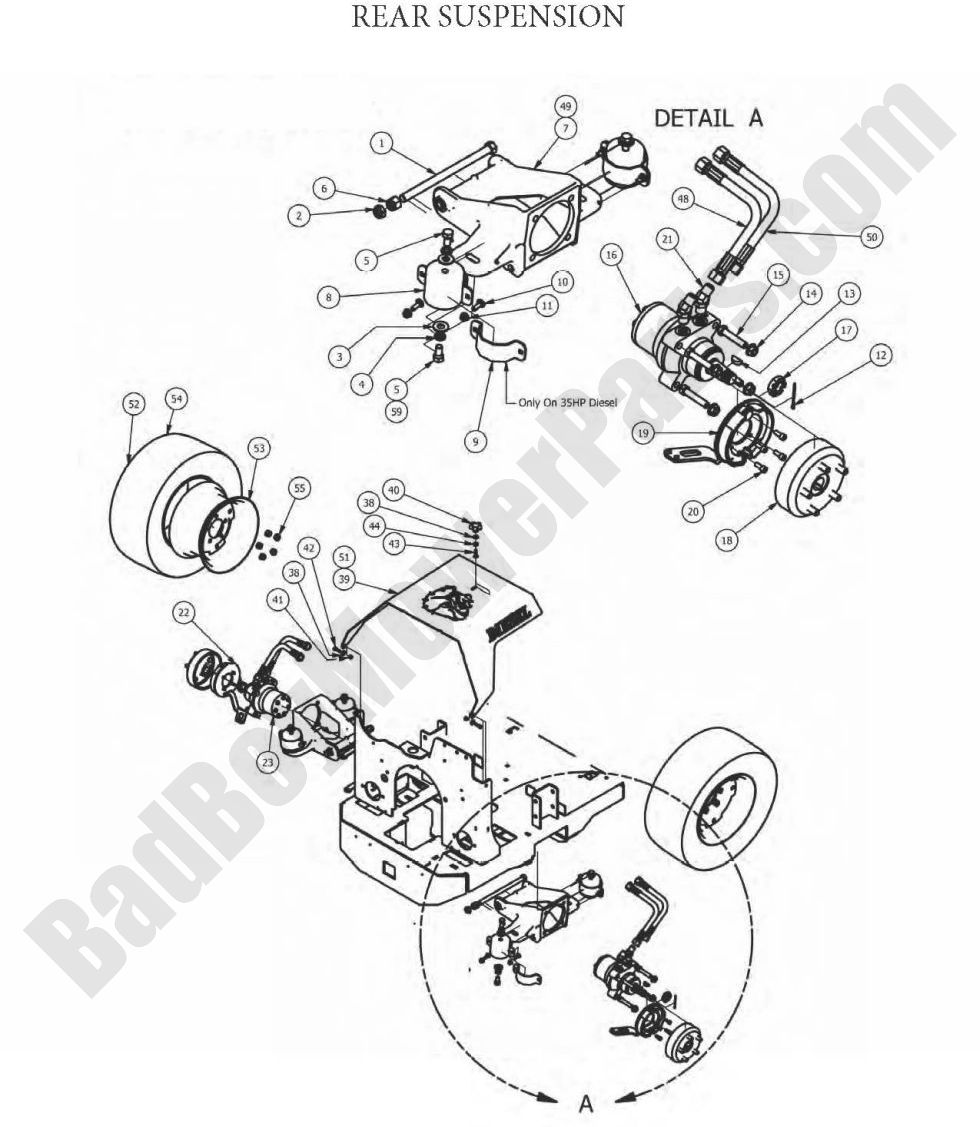

2012 Diesels Rear Suspension

Rear Suspension

The Bad Boy Mower parts diagram for the 2012 Diesels Rear Suspension is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 Diesels models. Find all of your Bad Boy mowers 2012 Diesels parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 Diesels Rear Suspension. If you are not able to find the Bad Boy parts for your 2012 Diesels please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 Diesels Rear Suspension
  Position Number SKU Product Title Price
1 018-2051-00 018-2051-00 - 5/8 x 10 Bolt Grade 8
$15.61
2 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
3 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
4 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
5 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
6 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
7 070-8000-00 070-8000-00 - 60 Suspension Kit Wheel Motor
$312.34
8 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
9A 072-1000-98 072-1000-98 - Isolator Clamp Assembly
$28.39
9 072-1000-00 072-1000-00 - Isolator Band Clamp
$7.28
10 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
11 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
12 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
13 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
14 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
15 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
16 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right AOS/Diesel
$640.93
17 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$15.61
18 092-2075-00 092-2075-00 - 2011-2012 Diesel, 2011 Lightning/Pup Drum Brake Hub - HGB-DEXX-X5
$156.17
19 092-2050-00 092-2050-00 - 2011-2012 Diesel, 2011 Lightning/Pup Drum Brake - Right-HGB-BEHD-XX (obsolete)
use part #016-9999-99
$160.49
20 018-8067-00 018-8067-00 - 5/16-18 X 3/4 SOCKET C/S
$2.99
21 024-2050-00 024-2050-00 - 45 Degree Wheel Motor Fitting -6822
$17.02
22 092-2000-00 092-2000-00 - 2011-2012 Diesel, 2011 Lightning/Pup Drum Brake - Left-HGB-BEHC-XX (obsolete)
use part #016-9999-98
$160.49
23 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor - Left AOS/Diesel
$640.93
38 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99

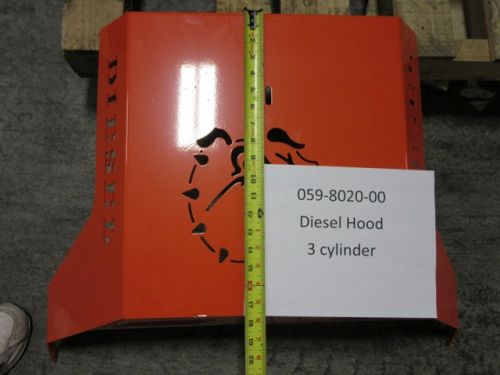

39 059-8020-00 059-8020-00 - 2008-2017 Diesel Hood 3 Cyl
$171.19
40 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
41 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut Z inc Orange Nylon
$2.99
42 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
43 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
44 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
48 051-2080-00 051-2080-00 - 26" Hydraulic Hose Assembly w/Adaptors
$156.17
49 070-8001-00 070-8001-00 - 72 Suspension Kit Wheel Motor
$283.95
50 051-6085-00 051-6085-00 - 26 inch Hose Only
$40.53
51 059-8010-00 059-8010-00 - 2008-2020 Diesel Hood 4cyl
$171.19
52 022-7031-00 022-7031-00 - 26 x 12.00 - 12 Tire and Orang e Wheel Assembly
$458.99
53 022-7034-00 022-7034-00 - 12 x 10.5 Wheel - AOS Rear
$235.99
54 022-7032-00 022-7032-00 - 26 x 12.00 - 12 Tire (One Tire Only)
$331.99
55 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
59 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
