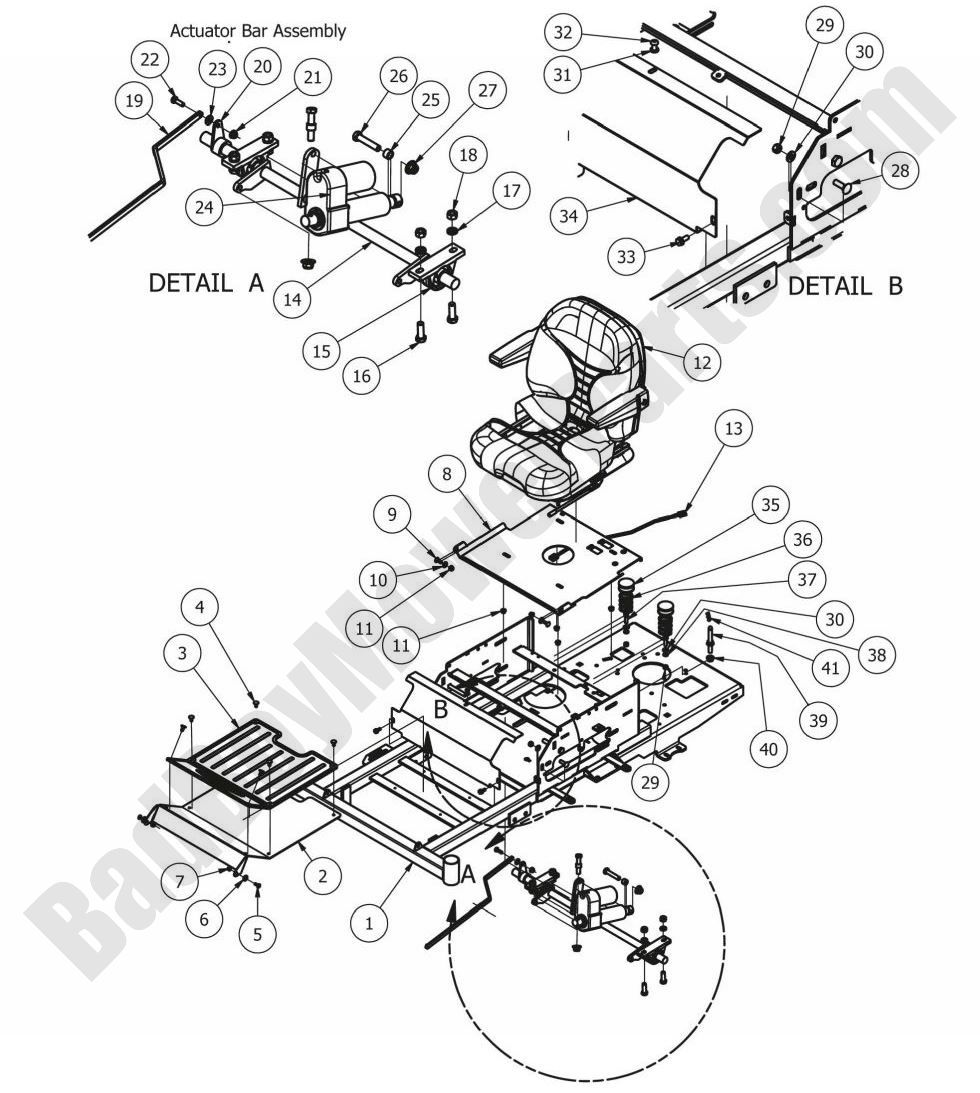

2012 CZT - Seat & Actuator Bar

2012 CZT - Seat & Actuator Bar

Introducing the 2012 CZT Seat & Actuator Bar, an assembly designed to provide secure seating and responsive control for your mower. This component combines a sturdy seat with a reliable actuator bar to ensure comfortable operation and precise maneuverability during mowing. Constructed from quality materials, the assembly is engineered to withstand rigorous use while maintaining stability and ease of adjustment. Its design promotes ergonomics, reducing operator fatigue during long mowing sessions. Installation instructions and maintenance guidelines are included to ensure a secure fit and lasting performance. This assembly is integral to the CZT’s control system, enhancing safety and operational efficiency. For detailed schematics, verified components, and expert support, please consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for guidance and advice. Upgrade your mower with this assembly to achieve superior control every time. Enjoy excellence today.

Bad Boy Mower Parts Lookup

2012 CZT - Seat & Actuator Bar
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5400-00 070-5400-00 - 2011-2012 CZT, 2012 ZT Frame
$1299.99
2 079-3410-00 079-3410-00 - 2010-2012 ZT Floor Panel
$106.99
3 081-2010-00 081-2010-00 - 2010-2015 CZT & 2010-2013 ZT Floor Mat
$28.45
4 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
5 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
7 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
8 026-1010-00 026-1010-00 - ZT Seat Plate 2010 (See Models Used On For Details)
$99.32
9 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
11 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
12 071-2010-00 071-2010-00 - Wise Seat - ZT - WM1976 OBSOLETE use 071-2040-00 (obsolete)
use part #071-2040-17
$559.99
13 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
14 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
15 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
16 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
17 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
18 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
20 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
22 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
24 035-7033-00 035-7033-00 - Actuator
$408.75
25 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
26 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
27 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
28 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
29 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
30 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
31 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
32 018-5007-00 018-5007-00 - 5/16-18 X 3/4 Button Head Sock et C/S 18-8 SS
$2.99
33 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
34 014-3410-00 014-3410-00 - 2010-2012 CZT/ZT Cooler Cover w/o Choke Hole
$92.29
35 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
36 034-8045-00 034-8045-00 - Seat Spring
$20.49
37 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
38 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
39 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
40 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
41 040-6060-00 040-6060-00 - Seat Latch Pin (See Models Used On For Details)
$2.99
