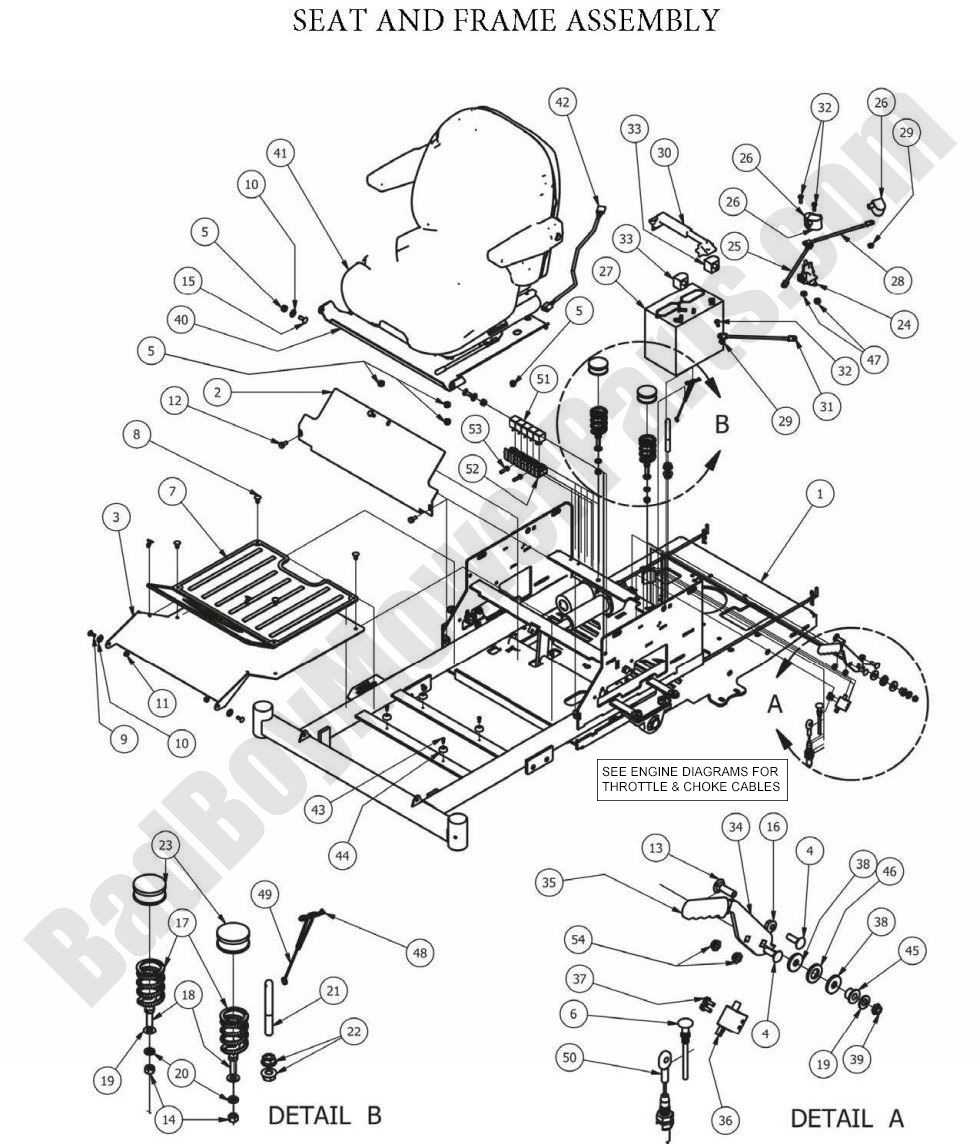

2013 CZT - Seat & Frame

2013 CZT - Seat & Frame

The 2013 CZT Seat & Frame provide essential support and comfort while operating your mower. Over time, seats can wear out, and frames may need reinforcement or replacement. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts to restore your mower’s comfort and durability. Our Bad Boy Mower Part diagrams help you quickly locate the correct seat, mounting hardware, or frame components for your 2013 CZT. Using premium Bad Boy Lawn Mower Parts ensures longevity and a secure fit, enhancing operator stability and reducing fatigue. Shopping for Bad Boy Parts Online is easy with our user-friendly website, giving you access to everything you need in just a few clicks. Plus, enjoy Free Shipping On Orders Over $100, making it cost-effective to upgrade your mower. Order today and keep your 2013 CZT Seat & Frame in peak condition for a comfortable mowing experience.

Bad Boy Mower Parts Lookup

2013 CZT - Seat & Frame
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99
2 014-3420-00 014-3420-00 - 2013-2015 CZT & 2013-2016 ZT Elite Cooler Cover
$64.19
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 081-2010-00 081-2010-00 - 2010-2015 CZT & 2010-2013 ZT Floor Mat
$28.45
8 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
9 018-8040-00 018-8040-00 - 1/4"X3/4" CARRIAGE BOLT
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
12 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
13 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
16 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
17 034-8045-00 034-8045-00 - Seat Spring
$20.49
18 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
19 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
20 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
21 044-4000-00 044-4000-00 - Locking Pin (See Models Used On)
$7.25
22 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
23 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
24 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
25 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
26 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
28 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
29 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
30 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
31 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
32 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
33 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
34 069-1000-00 069-1000-00 - Brake Handle Cam Lever
$7.28
35 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
36 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
37 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
38 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
39 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
40 026-1013-00 026-1013-00 -Seat Plate (See Models Used On For Details)
$42.58
41 071-2010-00 071-2010-00 - Wise Seat - ZT - WM1976 OBSOLETE use 071-2040-00 (obsolete)
use part #071-2040-17
$559.99
42 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
43 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
44 029-4010-00 029-4010-00 - Button Bumper
$2.99
45 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
46 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
47 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
48 040-6060-00 040-6060-00 - Seat Latch Pin (See Models Used On For Details)
$2.99
49 064-1000-00 064-1000-00 - Seat Pin Lanyard
$5.49
50 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
51 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
52 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99
53 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
54 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
